Electrical Systems Operation & Diagnosis Module (602)
Remote Key
Antenna
OscillatorKA CM
Receiver
Legacy/Outback Oscillator BRZ Oscillator
Legacy/Outback KA CM
BRZ KA CM
Oscillators Control and boost the wireless signal to the remote key when the remote key
is outside of the vehicle.

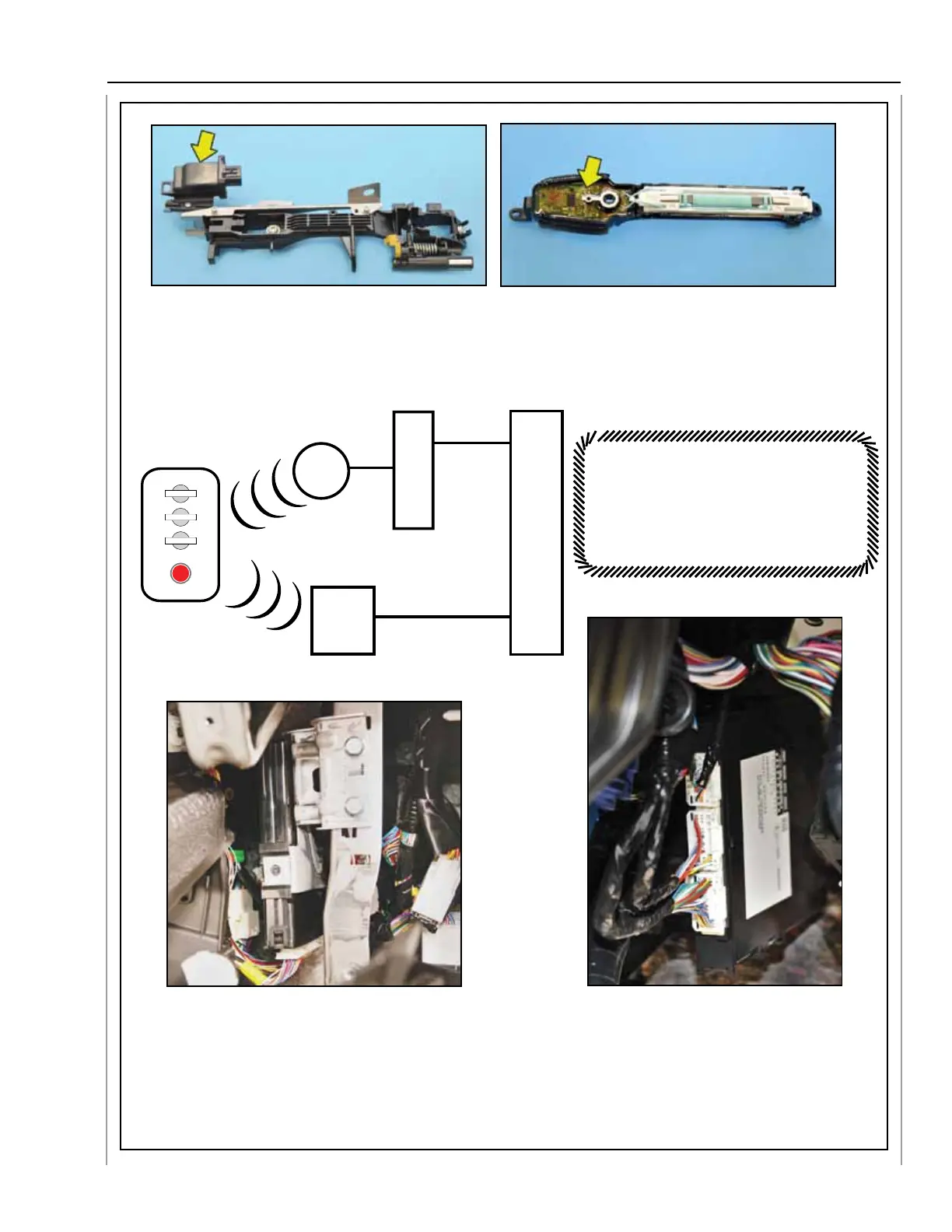

Remote Key Location
Outside of Car
Keyless Access Function
Initial Contact
The BRZ Keyless Access CM is located
behind the glove box, next to the A Pillar.
The Legacy/Outback KA CM is
located under the driver side kick
panel.
