Electrical Systems Operation & Diagnosis Module (602)

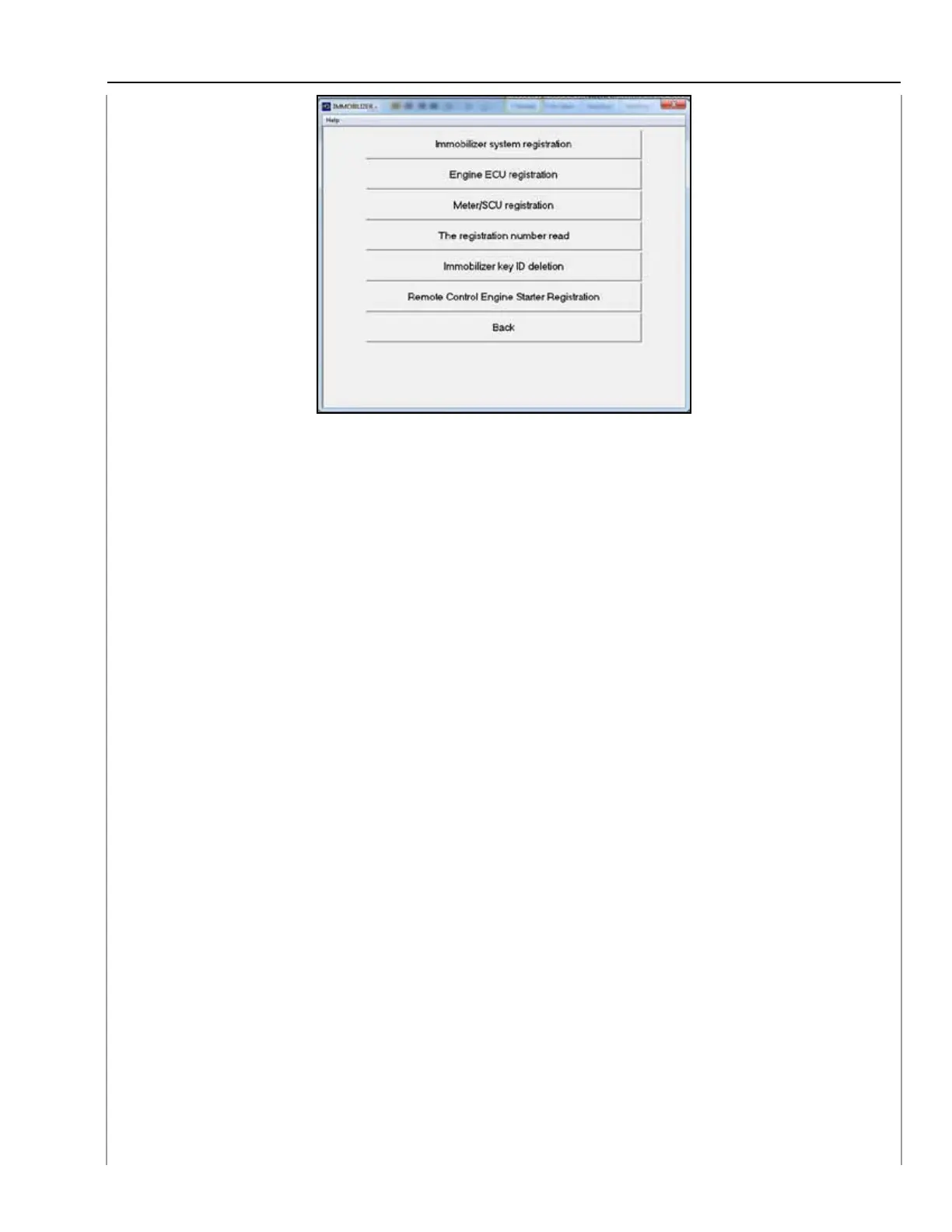

Immobilizer Menu-6 Choices
This decision screen provides 6 choices.
1. Immobilizer system registration-
This process closely resembles the procedure currently used for type A Immobilizer
systems. New and old keys are registered with this selection. Use this selection when
adding new keys (old keys must first be deleted), and when the BIU is replaced (RES
must also be registered using separate selection).
Note: The only time the keys need to be replaced is when they are lost.
2. Engine ECU registration-
This process allows registration of the Engine ECU (ECM) and eliminates the need
to register each key.
3. Meter/SCU registration-
This process registers a new Combination Meter and eliminates the need to register
each key. SCU (Security Control Unit) is equipped on Canadian vehicles only.
4. The registration number read-
Indicates the number of keys registered to the car.
5. Immobilizer key ID deletion-
This process erases the registration of keys from the BIU except the one key that is in
the ignition switch. This process is used when replacing lost or damaged keys.
Only 4 keys (plus RES) can be registered to the BIU.
6. Remote Control Engine Starter Registration-
This process allows the RES to be registered to the BIU. This process should be utilized
when installing RES to the vehicle or when replacing the BIU.
