Electrical Systems Operation & Diagnosis Module (602)
A manual release lever is provided to disengage the half stop mechanism in the event of mechanical
or electrical malfunction.
WARNING: The PRG may operate if the lever is activated, stay away from moving parts.
NOTE: An access panel is provided on the cargo area trim to release the half-stop
solenoid in event of malfunction.

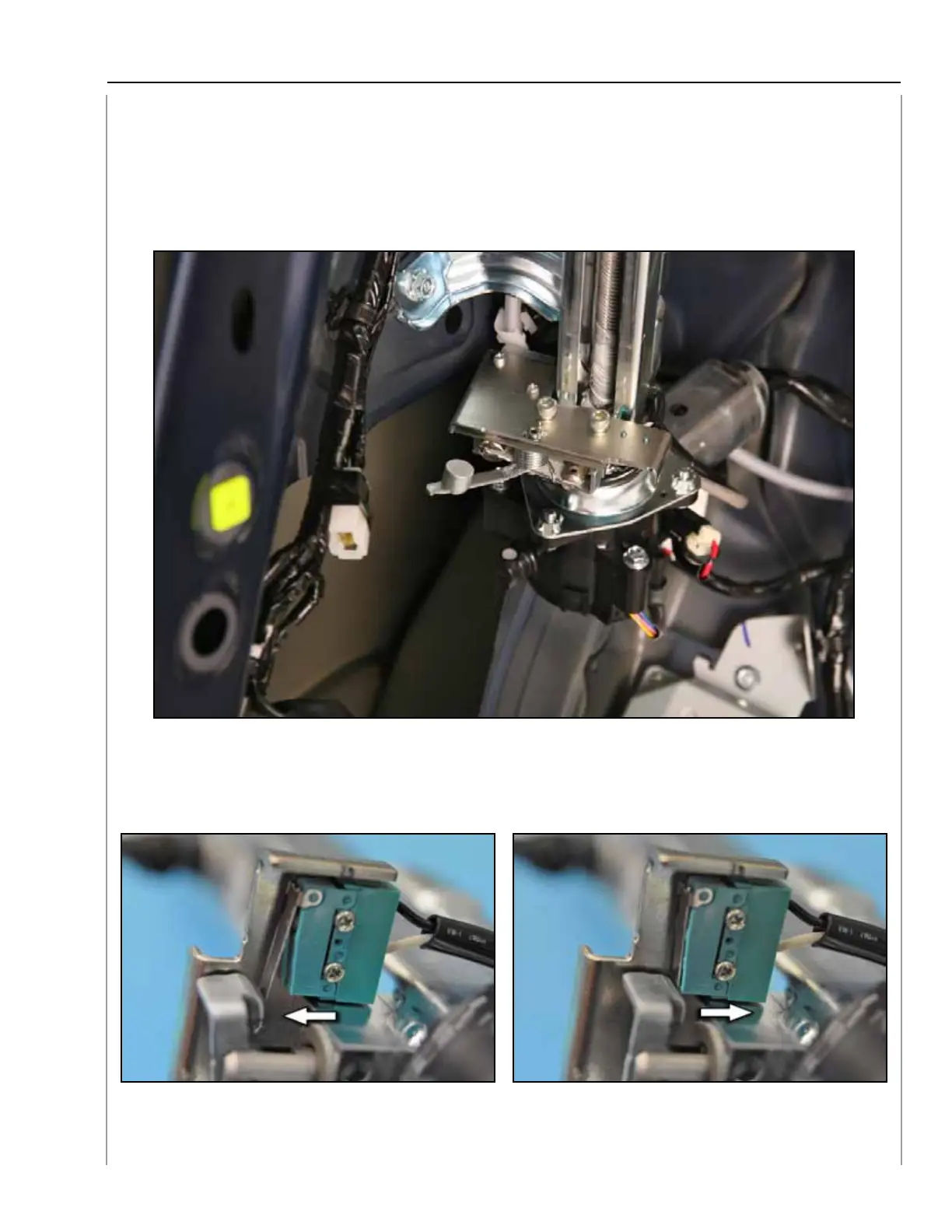

Manual Release Lever
A micro switch is attached to the half stop mechanism to signal the PRG control unit of the locked
or unlocked position.
Half Stop Solenoid Unlocked Half Stop Solenoid Locked
180
181 182
