Power Assisted System (Power Steering)
POWER STEERING SYSTEM
PS-6

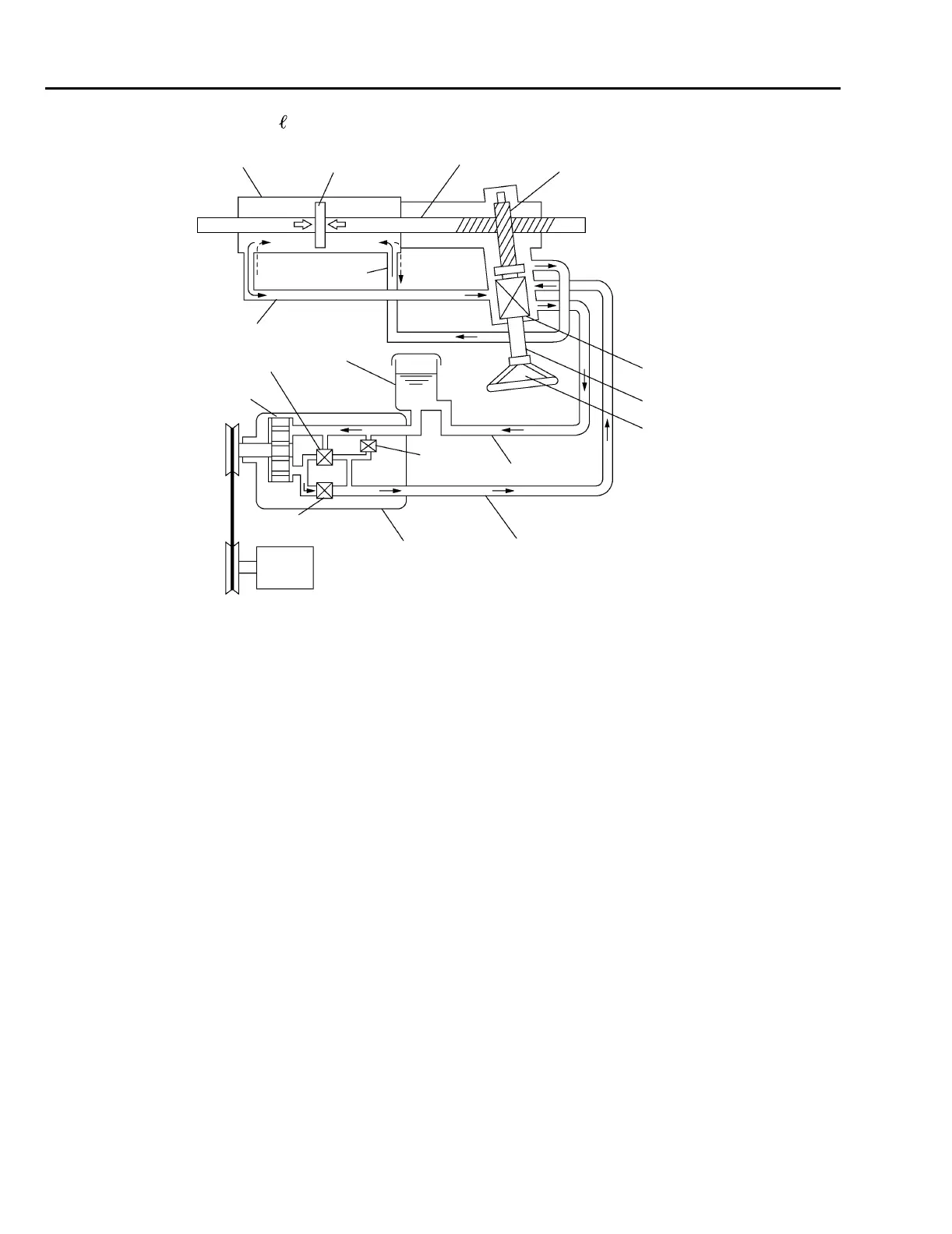

ALL MODELS EXCEPT 3.0 MODEL
(1) Power cylinder (8) Steering shaft (15) Flow control valve
(2) Rack piston (9) Steering wheel (16) Engine
(3) Rack shaft (10) Pressure-sensitive valve (17) Fluid pump
(4) Piston shaft (11) Tank (18) Hose A
(5) Pipe A (12) Vane pump (19) Chamber A
(6) Pipe B (13) Relief valve (20) Chamber B
(7) Rotary control valve (14) Hose B
(4)
(3)
(2)
(1)
(8)
(7)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(9)
(6)
(5)
B4H1719B
