! Turbo models
S11AG0102

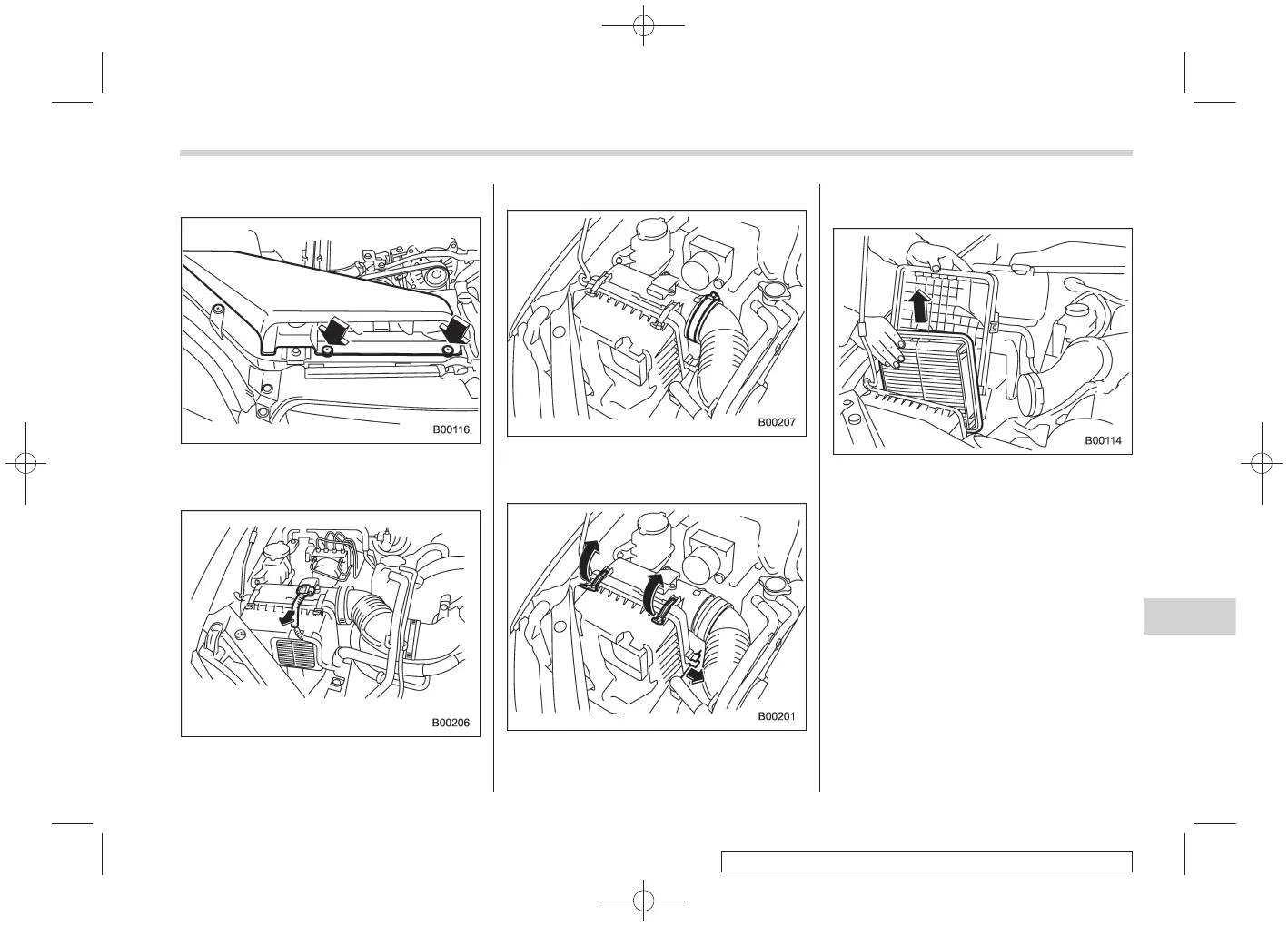

1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct.
2. Unplug the connector that is attached
to the top of the air cleaner case.
3. Use a screwdriver to remove the duct
that is connected to the air cleaner case
cover.
4. Unsnap the two clamps holding the air
cleaner case cover.
At the same time, pull the hose from the
clamp that runs next to the case cover.
5. Open the air cleaner case cover and
remove the air cleaner element.
6. Clean the inside of the air cleaner
cover and case with a damp cloth and
install a new air cleaner element.
Maintenance and service 11-19
– CONTINUED –
