11-56 Maintenance and service

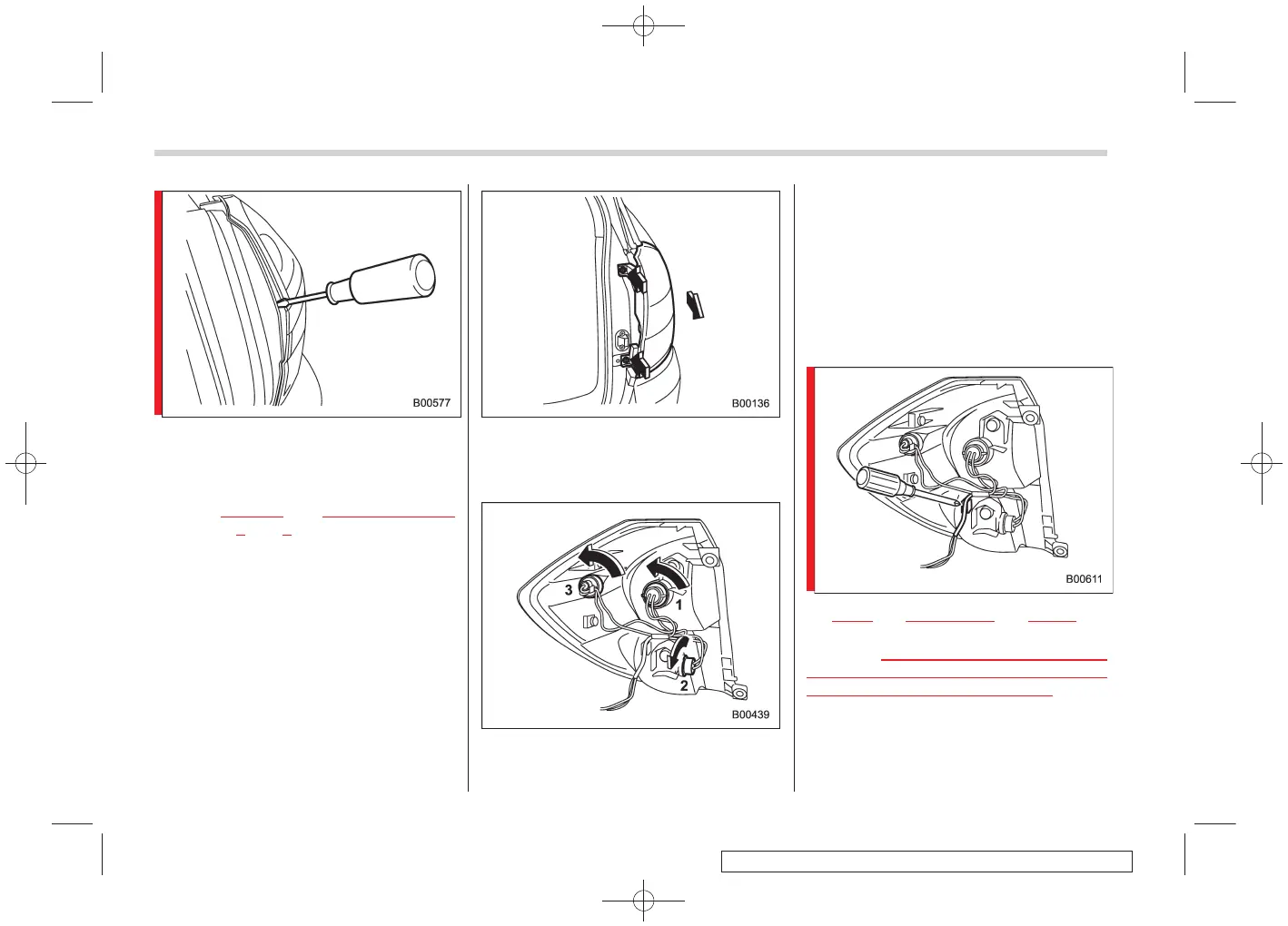

2. Wrap tape around a flat-head screw-
driver, then insert the screwdriver into the
gap between the side cover and rear
combination lamp and use it as a lever
to undo
clip 1 in the illustration shown.
Undo clips
2 and 3 in the same way, then
remove the side cover.
3. Remove the upper and lower screws.
Then, slide the rear combination lamp
assembly to the rear and remove it from
the vehicle.
1) Brake/tail light
2) Rear turn signal light
3) Rear side marker light
4. Remove the bulb holder from the rear
combination light assembly by turning it
counterclockwise.
5. Pull the bulb out of the bulb holder and
replace it with a new one.
6. Set the bulb holder into the rear
combination light assembly and turn it
clockwise until it locks.
7. Insert the harness into the holder.
8. Reinstall the rear combination light
assembly
by sliding the two-pronged part
of the combination light assembly securely
to each holder of the vehicle side.
