Sun Microsystems SUN FIRE 280R User Manual

214 Sun Fire 280R Server Owner’s Guide • January 2001
Reference for the Fibre Channel-
Arbitrated Loop (FC-AL) Port Connector
The Fibre Channel-Arbitrated Loop port connector (J2902) is an 8-pin connector
located on the main logic board back panel.

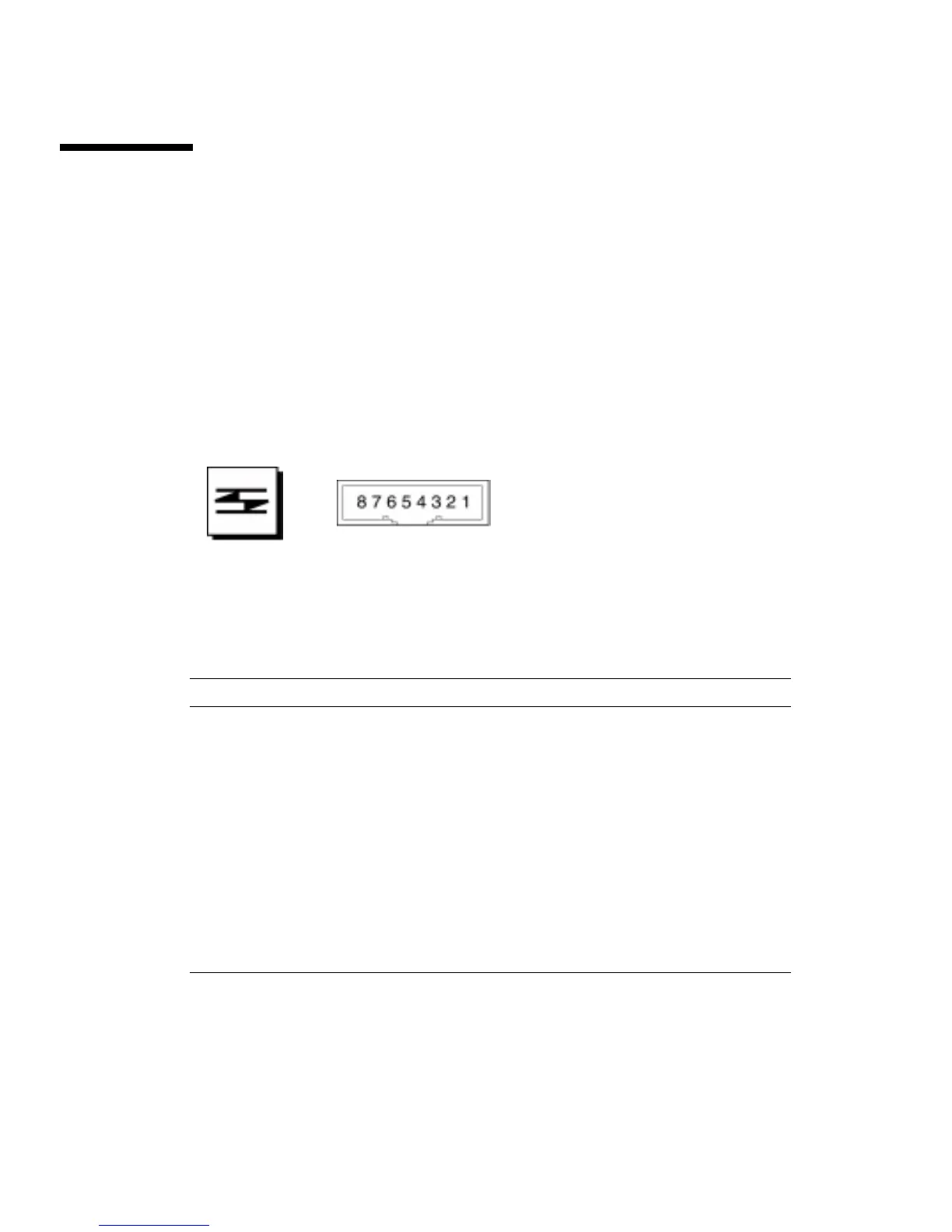

FC-AL Port Connector Diagram
FC-AL Connector Pin Assignments
Pin Signal Description
1 T_CM_FC_TX_EX_P TX +
2 GND Ground
3 T_CM_FC_TX_EX_N TX -
4, 5 NC Not connected
6 FC_RX_EX_N RX +
7 GND Ground
8 FC_RX_EX_P RX -
