208 Sun Fire 280R Server Owner’s Guide • January 2001
Reference for the UltraSCSI Connector
The Ultra Small Computer System Interface (UltraSCSI) connector (J2202) is located
on the main logic board back panel.

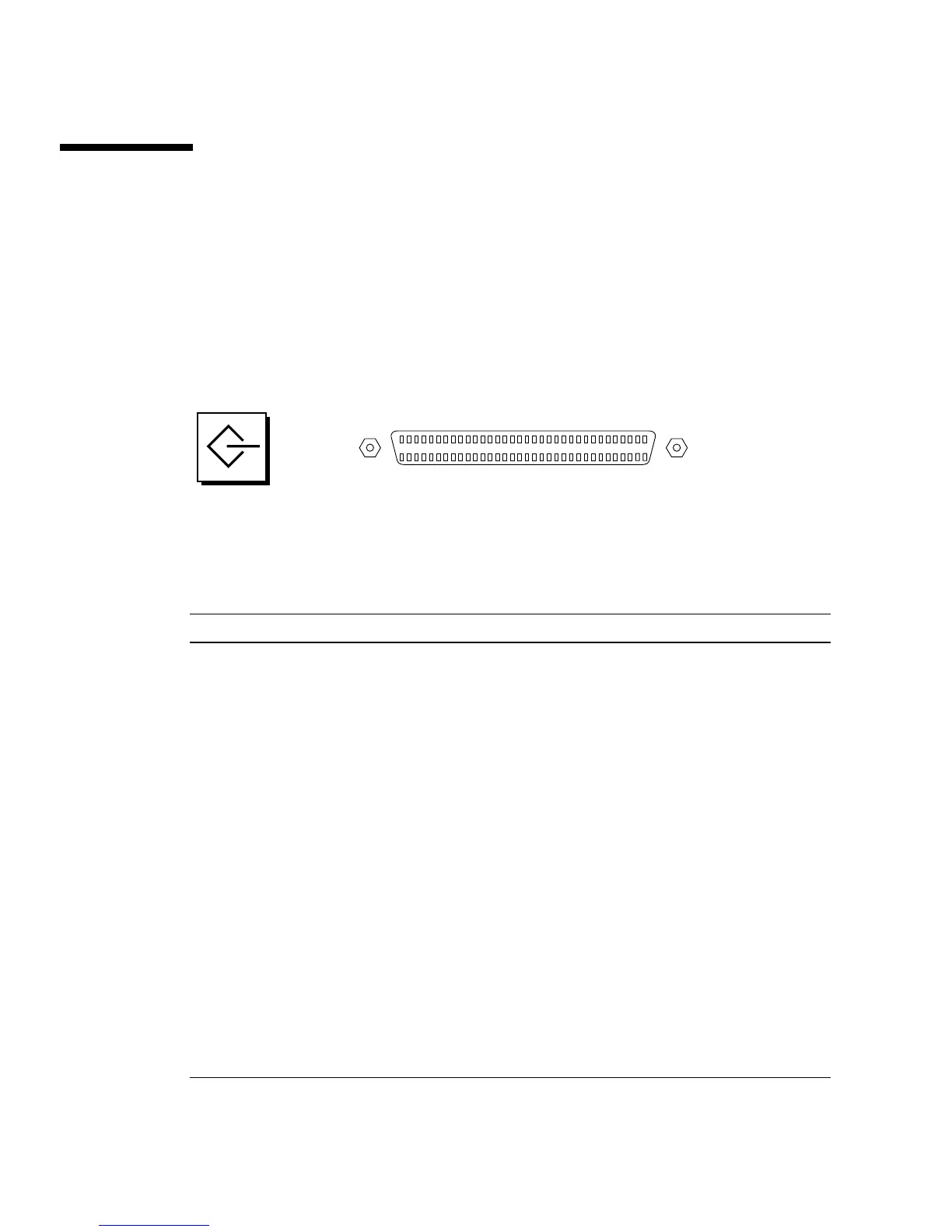

UltraSCSI Connector Diagram
UltraSCSI Connector Signals
Pin Signal Name Description
1 Gnd Ground
2 Gnd Ground
3 NC Not connected
4 Gnd Ground
5 Gnd Ground
6 Gnd Ground
7 Gnd Ground
8 Gnd Ground
9 Gnd Ground
10 Gnd Ground
11 Gnd Ground
12 Gnd Ground
13 Gnd Ground
14 Gnd Ground
15 Gnd Ground
34 1
68 35
