2-2 Sun Fire T1000 Server Service Manual • January 2007
FIGURE 2-2 shows the major components in the server, and FIGURE 2-3 and FIGURE 2-4
show the front and rear panels of the server.

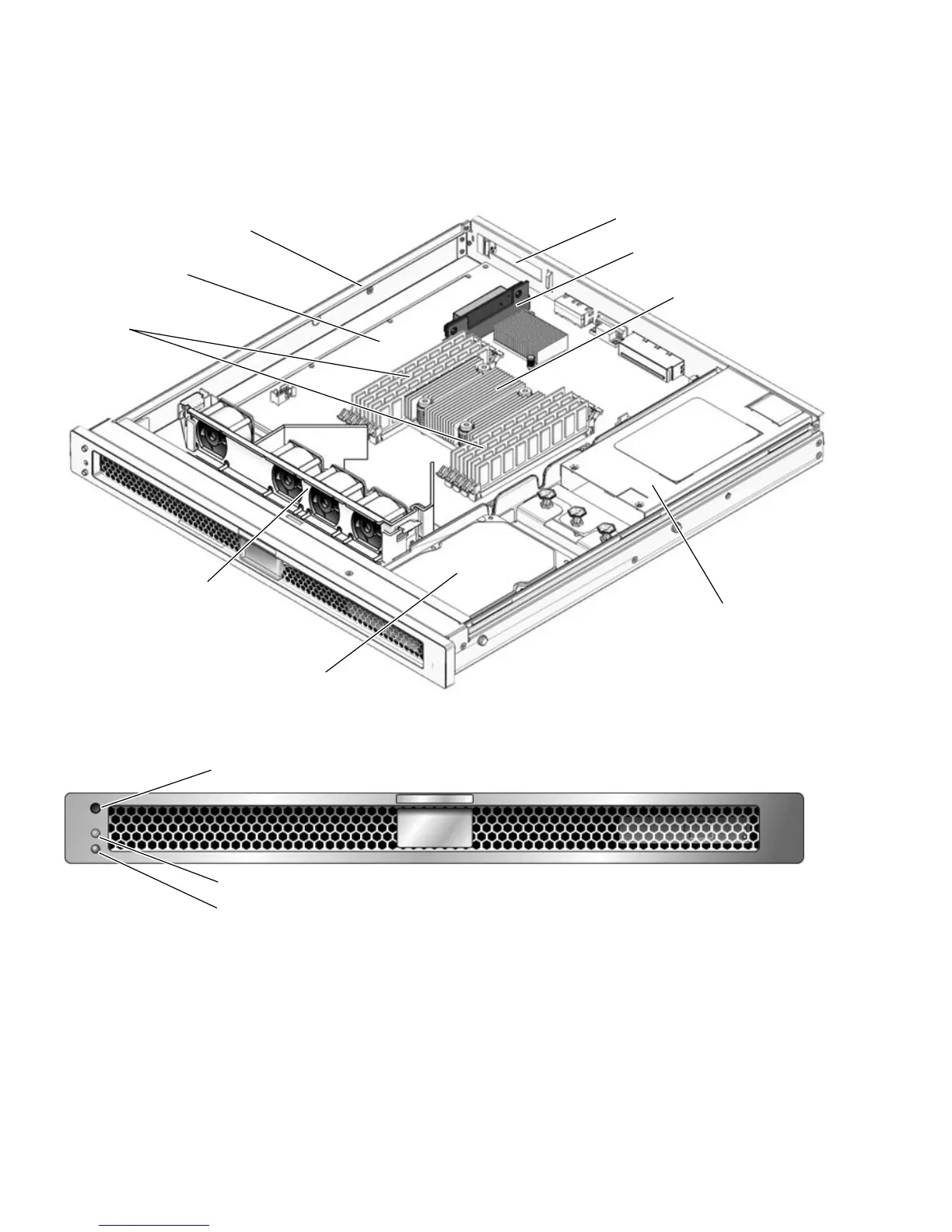

FIGURE 2-2 Server Components
FIGURE 2-3 Server Front Panel
DIMMs
Fan tray assembly
Hard drive
PCI-E riser board
Motherboard
Chassis assembly
UltraSPARC T1
mullticore processor
Power supply
PCI-E slot opening
Locator LED/button
Service Required LED
Power OK LED and Power On/Off button
