Page 14
880 SERIES
7. For Australia/New Zealand, the spa should be supplied through
a residual current device (RCD) with a rated tripping current not
exceeding 30mA (IEC 60335-2-60).
8. Select the power supply entrance you want to use (Figures A-B,
pages 14-15) and remove the short cabinet panel from the front
of the hot tub, then feed cable through the large opening provided on
the bottom of the control box.
9. Connect wires, color to color, on terminal blocks TB1 and TB3
(Figure D). TIGHTEN SECURELY! All wires must be hooked up
securely or damage could result.
10. Install control box door and reinstall the cabinet panel(s).

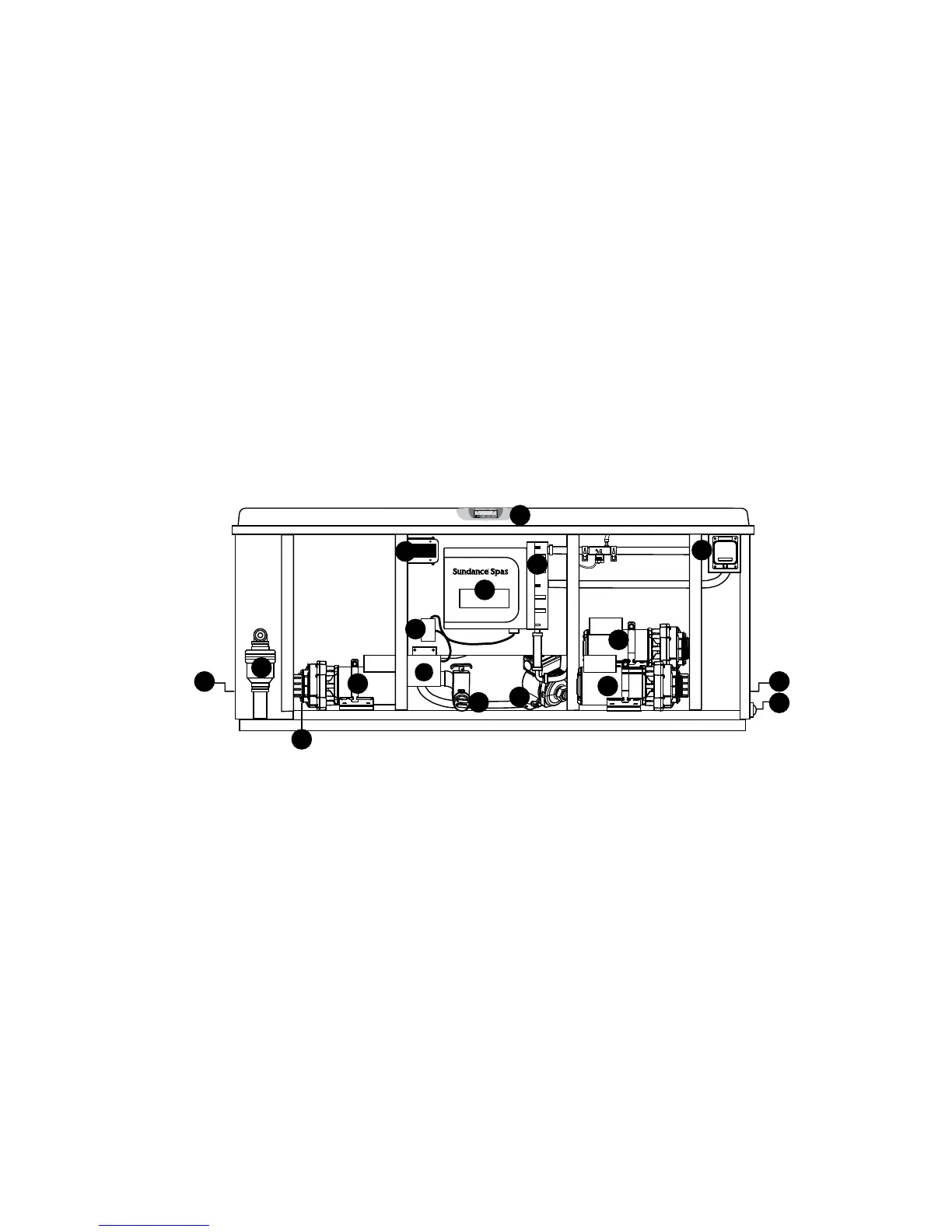

Figure A (Maxxus/Aspen Equipment Area)
102
°
8
9
10
6
2 2
13
12
7
4
11
16
3
14
5
1
15
Note: Equipment location (such as pumps, CLEARRAY® system, drain,
heater etc.) varies by model.
1. Control Box
2. Power Supply Entrance(s)
3. Jets Pump
4. Jets Pump
5. Jets Pump
6. Blower
7. Heater
8. Hot Tub Drain (Removable
External Drain Cap)
9. Pump Drain Plug(s)
10. Filter/Circulation Pump
11. CLEARRAY® (Ultraviolet) Water
Purication System
12. Electronic Ballast (for the
CLEARRAY System)
13. Control Panel
14. Quick Drain
15. SunSmart™ 2.0 Wi-Fi (Optional)
16. BLUEWAVE® 2.0 Wireless Audio
System (Optional)
