Page | 10
APPLICATIONS
Marine (vessel power management);
Power shedding (home/office/factory);
UPS (fuel-saving systems);
Remote locations with solar and wind generators;
Building sites;
Telecommunication;
2.4. Basic System Architecture

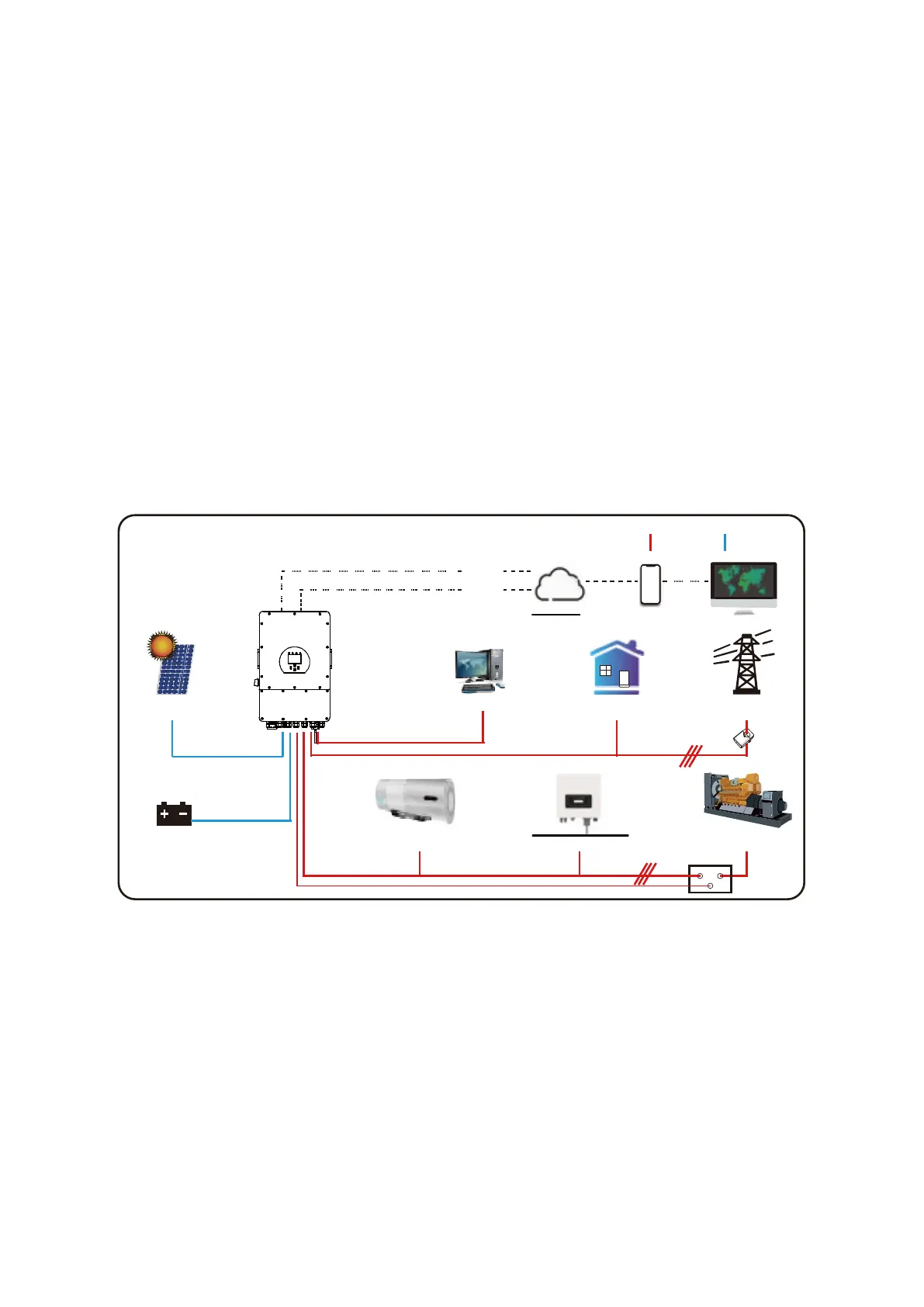

The following diagram explains the basic application and architecture of this 3-Phase
Inverter. The system is composed of solar panels, batteries, a generator or utility grid,
normal loads, smart loads and monitoring systems.
GridBackup Load
WiFI
GPRS
phoneCloud services
On-Grid Home Load
Generator
ATS
Grid-connected InverterSmart Load
Battery
Solar
CT
AC cable DC cable
