Page | 40

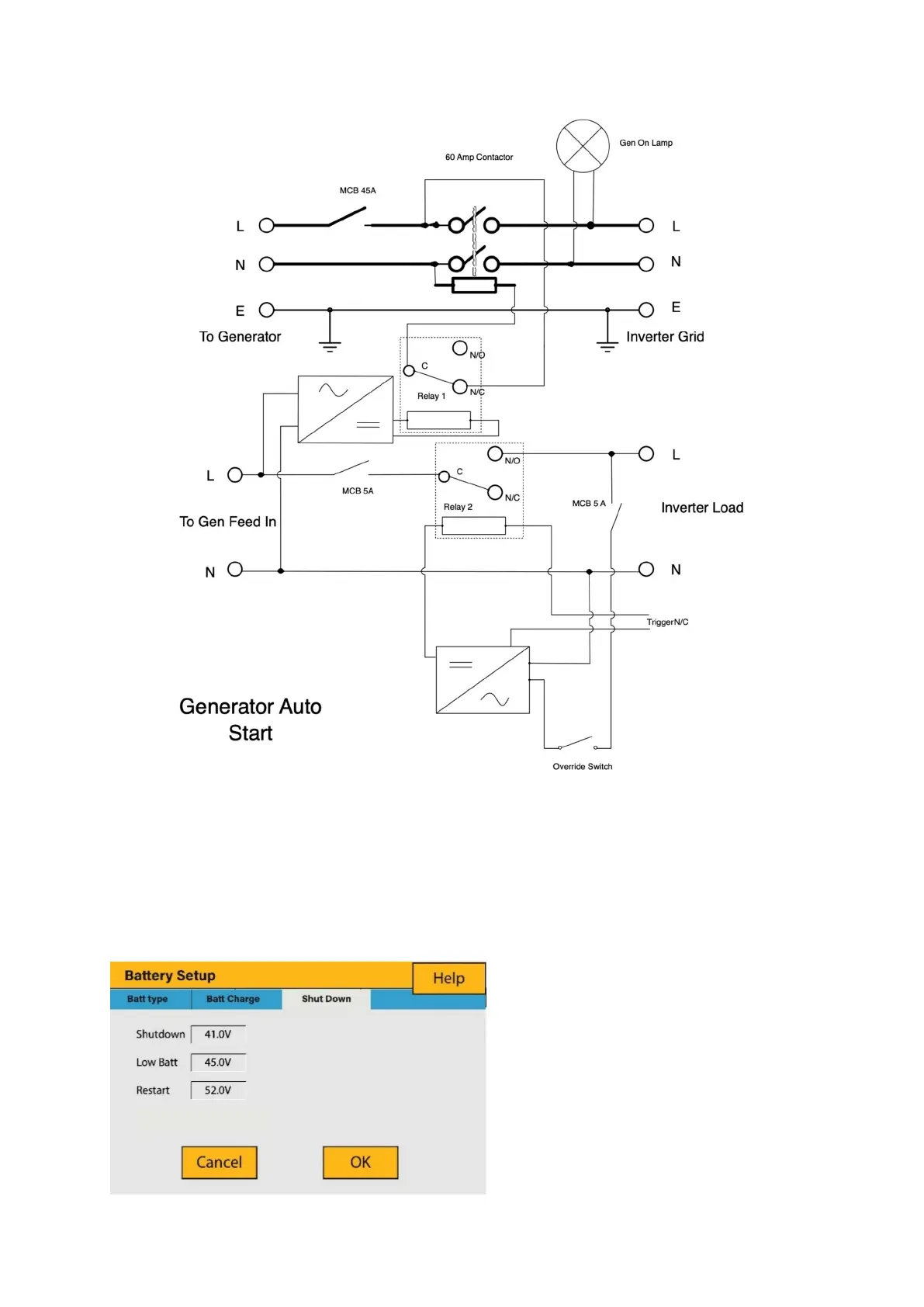

5.12.
Battery Discharge Page
To
c
onfigure
i
nverter’s
shutdown
settings,
click
on
the
BATTERY
icon
and
then
on
‘Shut Down’.
What this page displays:
Inverter
shutdown
voltage
set
as
either a voltage or %.
Inverter
low
battery
warning
set
as either a voltage or %.
Restart
voltage
set
as
either
a
voltage or %.
39
41
