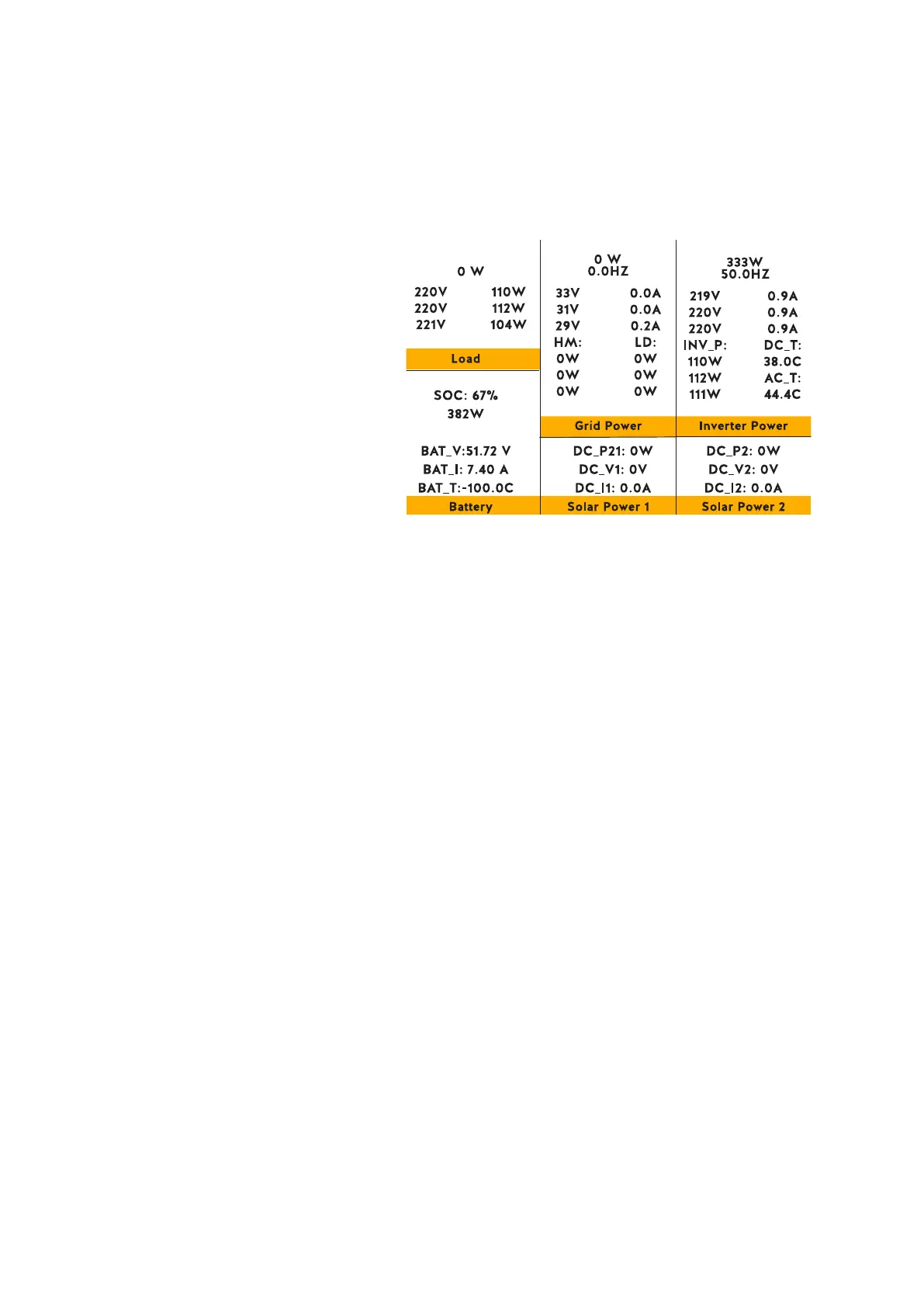

5.4. Status Page
To access the Status page, click on the BATTERY or AC LOAD dial on the Home page.
What this page displays:
Total solar power produced.
MPPT 1 power/voltage/current.
MPPT 2 power/voltage/current.
Grid power.
Grid frequency.
Grid voltage.
Grid current.
Inverter power.
Inverter frequency.
Inverter voltage.
Inverter current.
Load power.
Load voltage.
Battery power charge/discharge.
Battery SOC.
Battery voltage.
Battery current.
Battery temperature.
Solar Column: Shows total PV (Solar) power at the top and then details of each of the
two MPPT’s below L1 & L2 voltage.
Grid Column: Shows grid total power, frequency, voltage, and current. When selling
power to grid the power is negative. When consuming from the grid the power is
positive. If the sign of the grid and HM (home) powers are not the same when the PV
is disconnected and the inverter is only taking energy from the grid and using the CT
connected to Limit-2, then please reverse the polarity of the CT coil. Important: See
Section 4.6 (‘Connecting the CT coil’).
Inverter Column: Showing inverter total power, frequency, L1, L2, voltage, current,
and power.
Load Column: Showing total load power, load voltage, and power on L1 and L2.
Battery Column: Showing total power from the battery, battery SOC, battery voltage,
battery current (negative means charge, positive means discharge) battery
temperature (shows zero if the battery temperature sensor is not connected). DC
transformer temperature and AC heatsink temperature (When the temperature
reaches 90°C it will display in red and the performance of the inverter will start
deteriorating when it reaches 110°C. Subsequently, the inverter will shut down to allow
it to cool and reduce its temperature.
