Page | 21

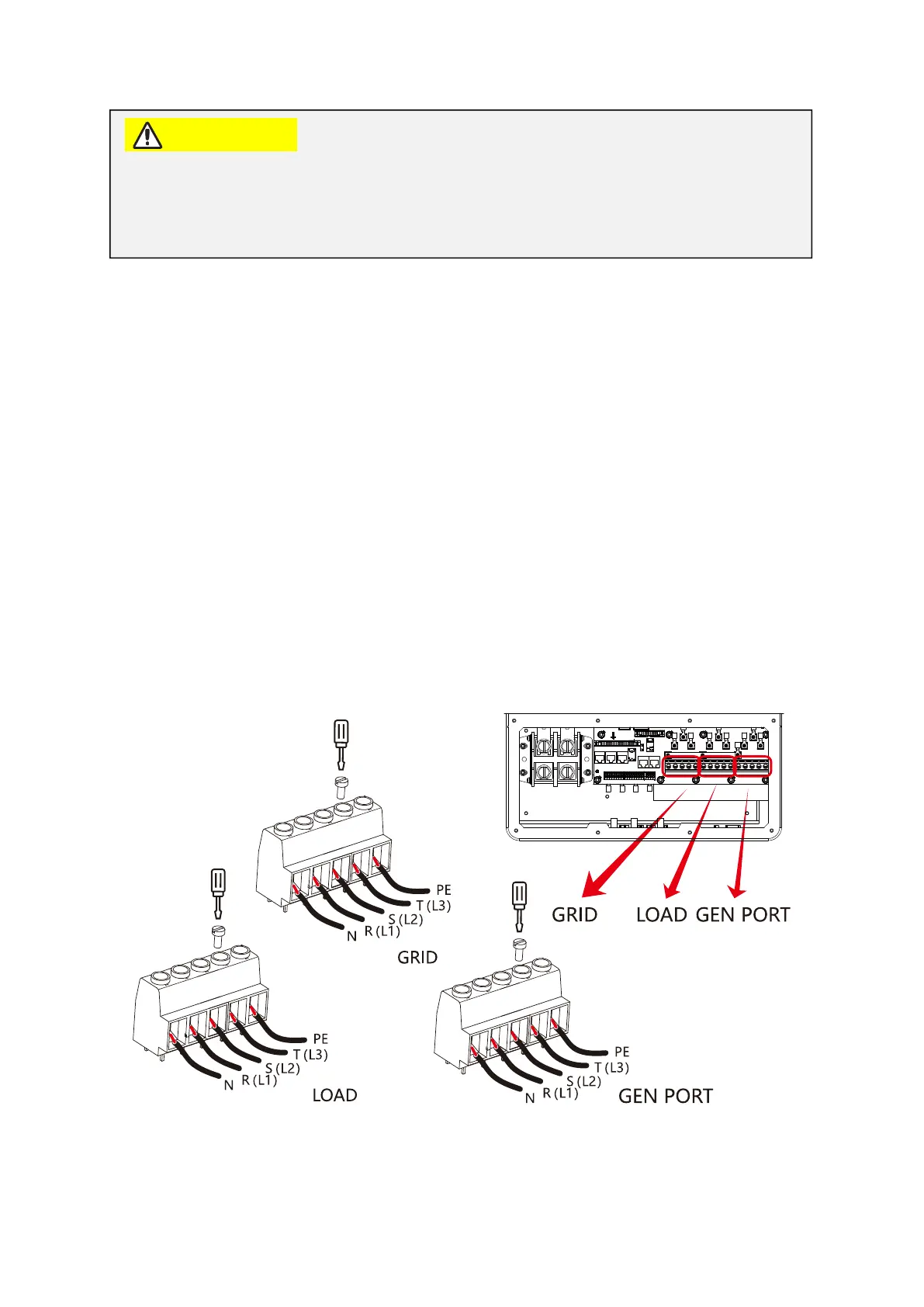

Please follow the steps below to implement GRID, LOAD, and GEN port connections:
1) Before making GRID, LOAD, and GEN port connections, make sure to turn off
the AC breaker or disconnector first.
2) Remove 10mm sleeve from each wire, unscrew the bolts, insert the wires
according to the polarities indicated on the terminal block and tighten the
terminal screws. Ensure the connection is complete.
3) Then, insert AC output wires according to polarities indicated on the terminal
block and tighten the terminal. Make sure to connect corresponding N wires and
PE wires to related terminals as well.
4) Ensure the wires are securely connected.
5) Check that the AC power source is isolated before attempting to connect it to
the inverter. Insert AC output wires according to the polarities indicated on the
terminal block and tighten the terminal screws. Be sure to connect
corresponding N wires and PE wires to the correct terminals and ensure the
wires are securely connected.
All wiring and cable sizes must comply with your particular country’s wiring
regulations and Codes of Practices
Ensure that suitable disconnection devices and RCDs are fitted.
CAUTION
