If the CT coil is tted in the wrong
way then this variable will have neg-
ative instead of positive values when
the power is owing into the house/
inverter. Also, the inverter export
limiting function will not work prop-
erly.
The CT coil is one of the most important parts of the Sunsynk Parity inverter. This device reduces the power
of the inverter to prevent feeding power to the grid. This feature is also known as “Zero Export”.
1. Fit the coil (sensor) around the live cable on the main fuse feeding the building and run the cable back
to the inverter. If using an external meter, you can extend the cable for more than 10 metres. Please
consult the meter manual on distance.
2. Connect the other end of the CT coil to the inverter terminals marked as CT coil.

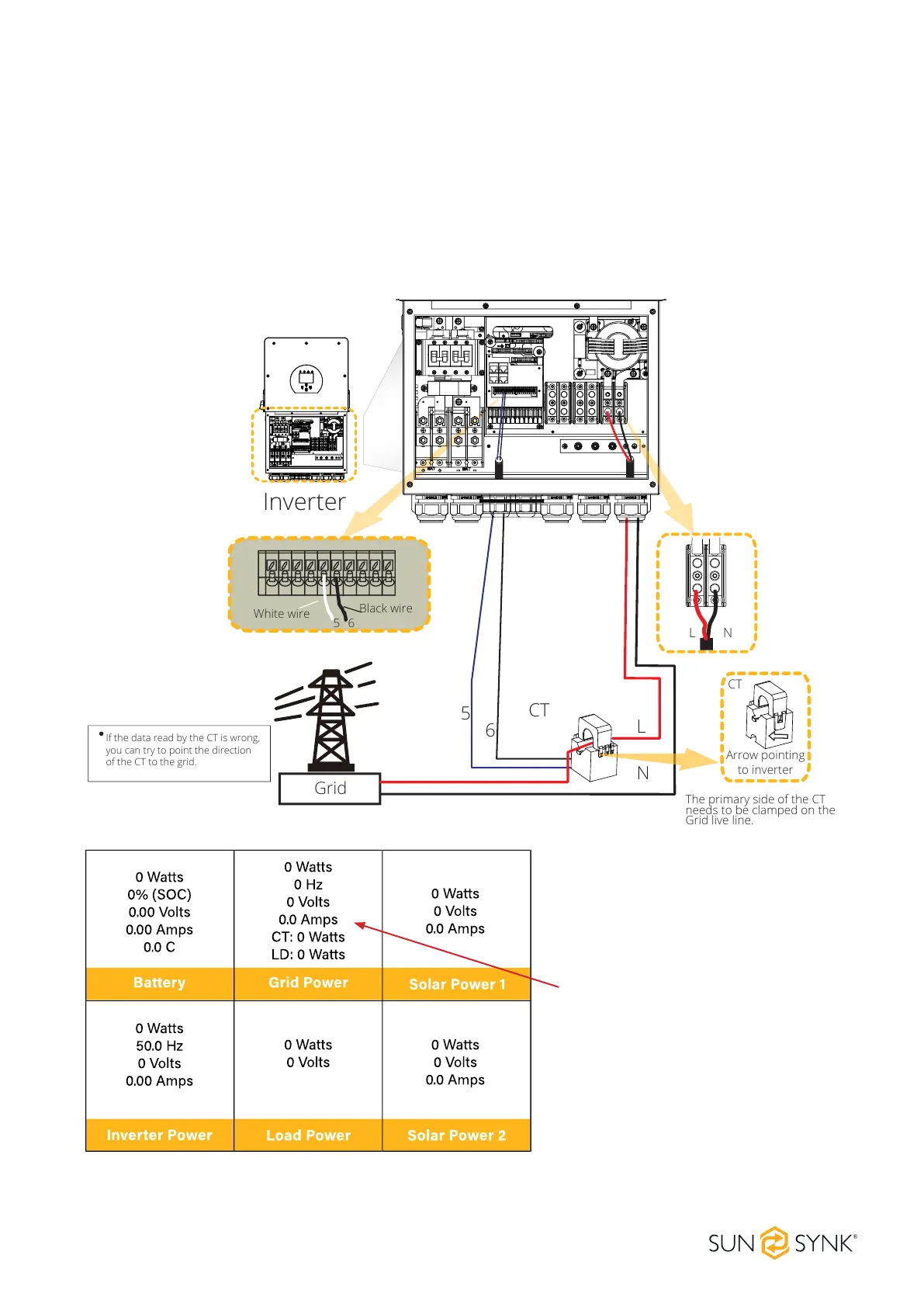

Installing the CT Coil
(Region:EU)
White wire
5
6
Black wire
Grid
L
N
CT
5
6
L N
The primary side of the CT
needs to be clamped on the
Grid live line.
If the data read by the CT is wrong,
you can try to point the direction
of the CT to the grid.
CT
Arrow pointing
to inverter
Inverter
