SunSynk SYNK-16K-SG01LP1 User Manual

SUNSYNK MAX | Installer Manual31

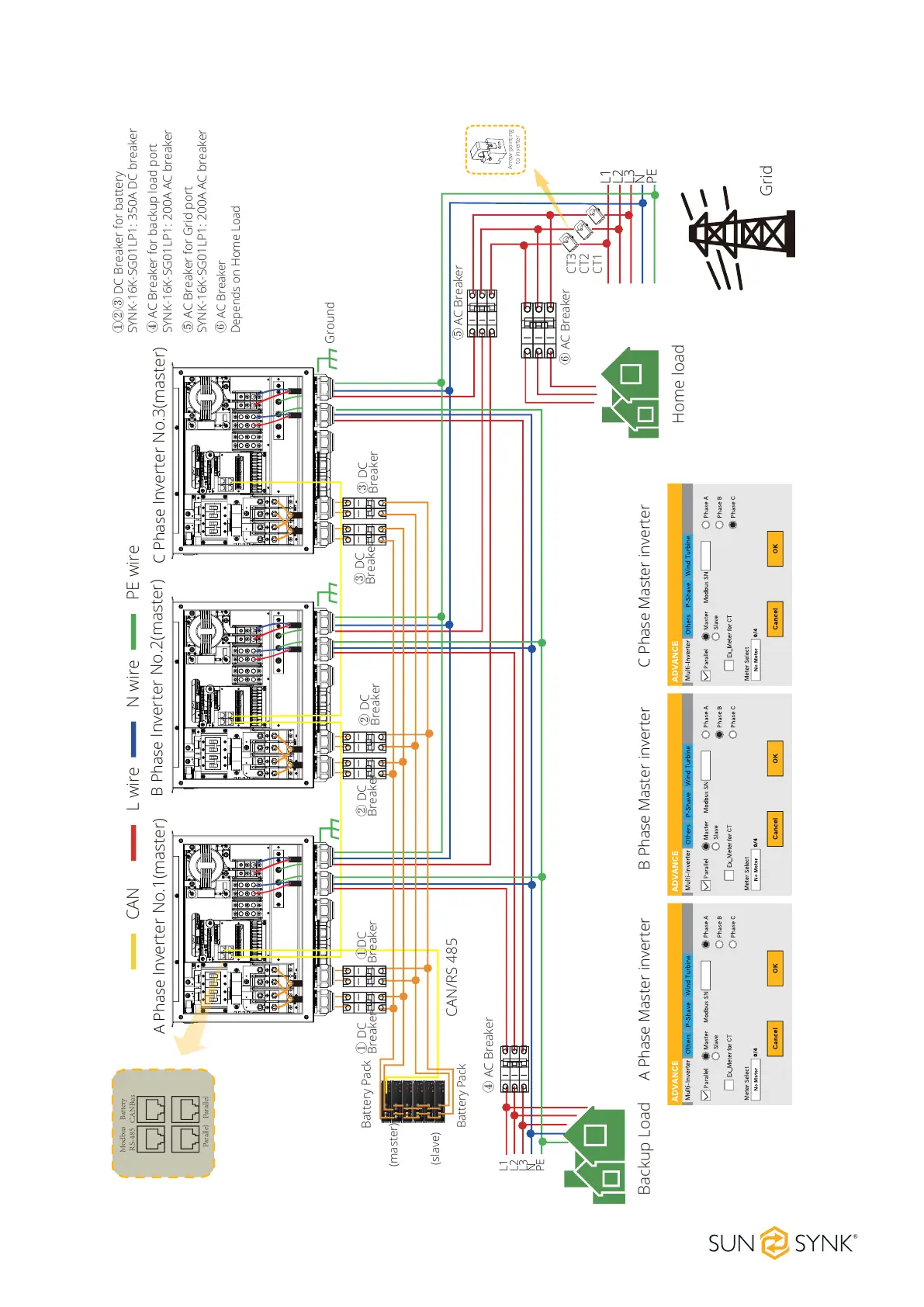

Three-Phase Parallel Inverter
⑥ AC Breaker
Depends on Home Load
①②③ DC Breaker for battery ④ AC Breaker for backup load port ⑤ AC Breaker for Grid port SYNK-16K-SG01LP1: 200A AC breaker SYNK-16K-SG01LP1: 350A DC breaker SYNK-16K-SG01LP1: 200A AC breaker
L wireCAN N wire PE wire
Grid
Battery Pack
(master)
Battery Pack
(slave)
CAN/RS 485
⑤ AC Breaker
L3 L2 L1 N PE
CT3 CT2 CT1
⑥ AC Breaker
④ AC Breaker
Home load
Arrow pointing
to inverter
Ground
A Phase Inverter No.1(master)
B Phase Inverter No.2(master)
C Phase Inverter No.3(master)
L3 N L2 L1 PE
Backup Load
A Phase Master inverter B Phase Master inverter C Phase Master inverter
① DC Breaker
①DC Breaker
② DC Breaker
② DC Breaker
③ DC Breaker
③ DC Breaker
ParallelParallel
Battery
CANBus
Modbus
RS-485
01 02 03
