Mounting the Inverter
Choose the recommended drill head (as shown below pic) to drill 4 holes in the wall, 82-90mm deep.
1. Use a proper hammer to t the expansion bolt into the holes.
2. Carry and hold the inverter, ensure the hanger aims at the expansion bolt, and x the inverter on the
wall.
3. Fasten the screw head of the expansion bolt to nish the mounting.
WARNING

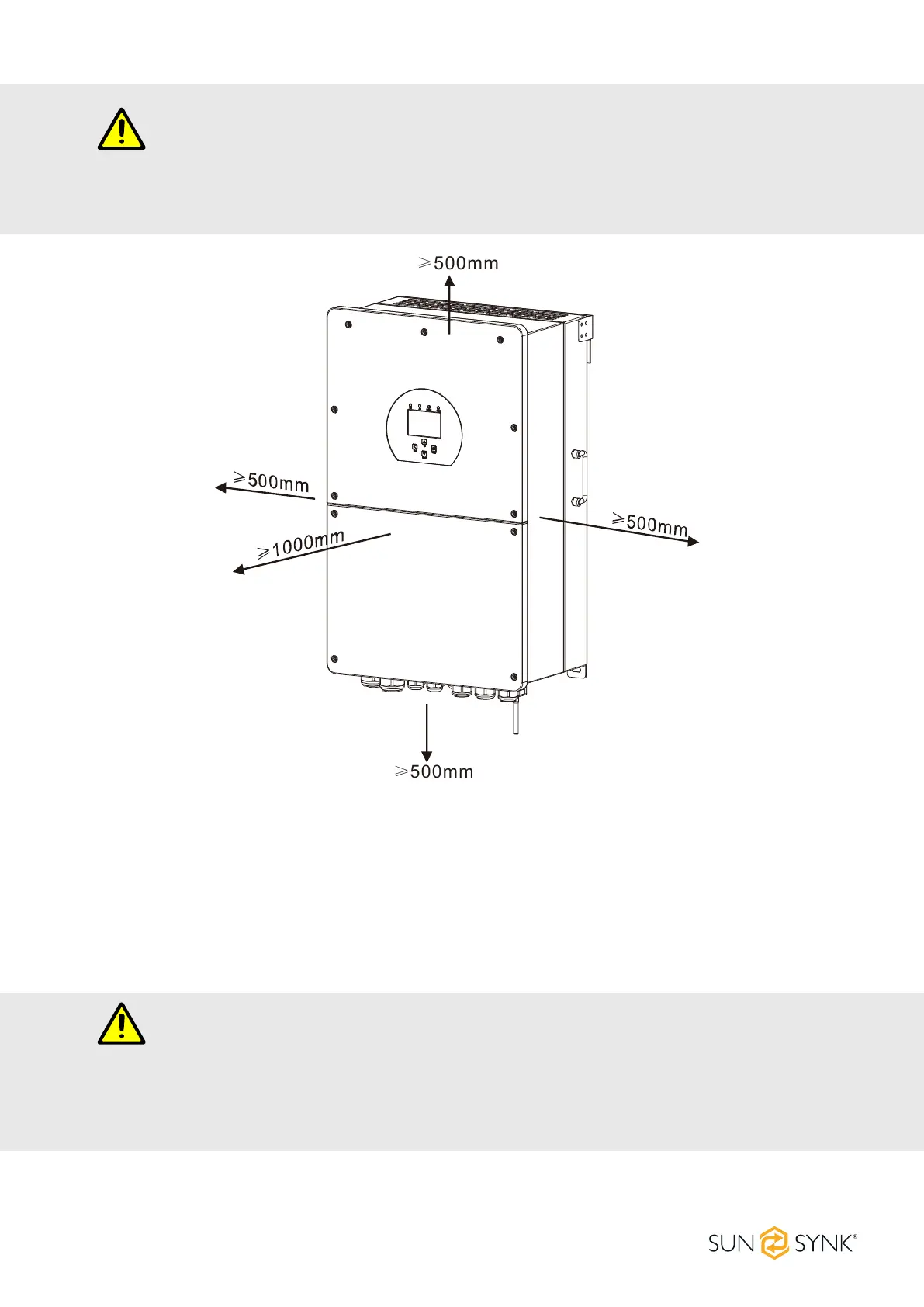

For proper air circulation to dissipate heat, allow a clearance of approx. 50cm to the side and approx.
50cm above and below the unit. And 100cm to the front.
WARNING
Risk of injury (Heavy Object).
Remember that this inverter is heavy so users must be careful in handling the unit during installation
especially when mounting or removing it from a wall.
