SunSynk SYNK-16K-SG01LP1 - OPERATING MODES; Mode I: Basic

SUNSYNK MAX | Installer Manual68
OPERATING MODES

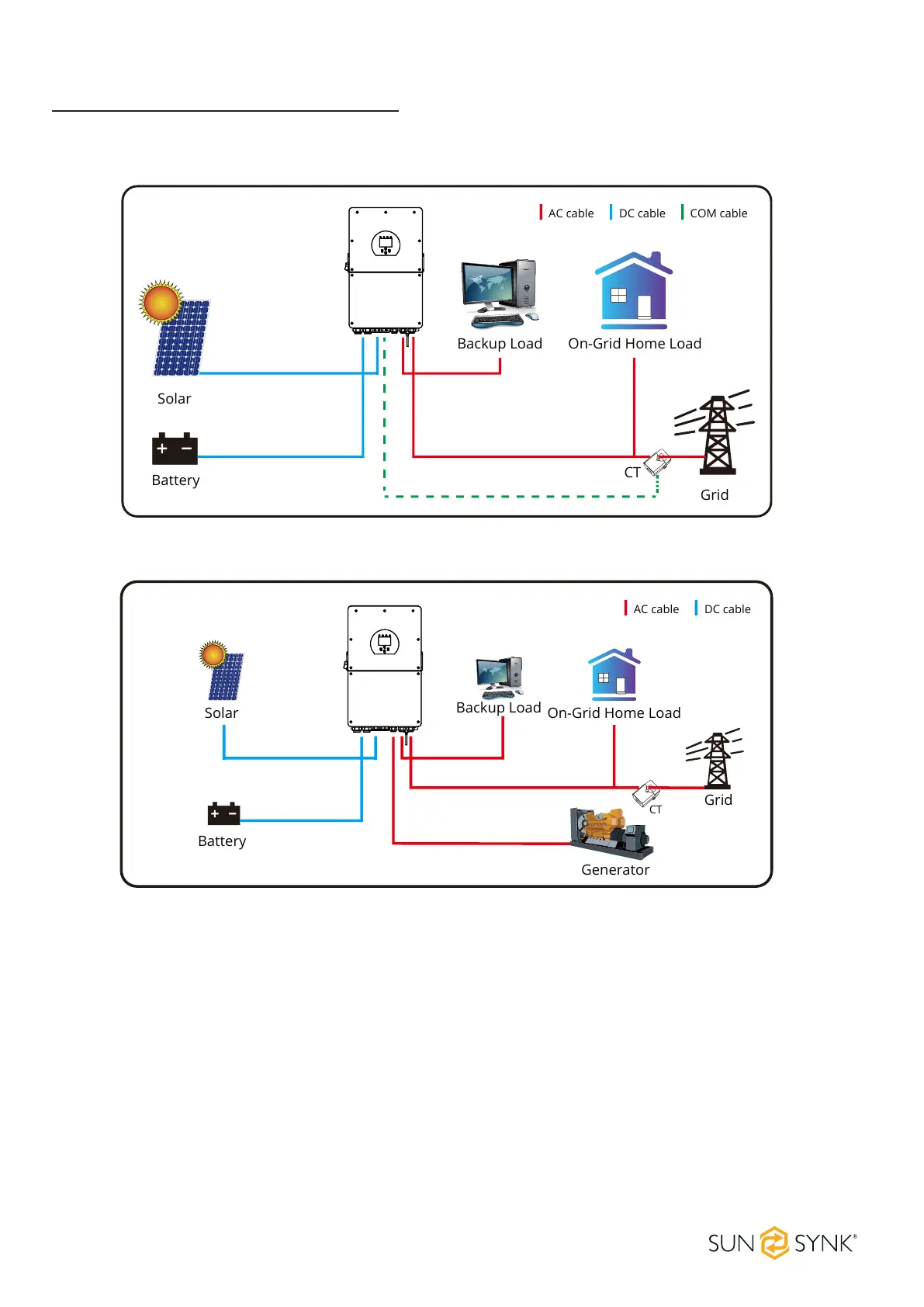

Mode I: Basic
Mode II: With Generator
Grid
Backup Load
On-Grid Home Load
Battery
Solar
CT
AC cable DC cable
Generator
Grid
Backup Load
On-Grid Home Load
Battery
Solar
CT
AC cable DC cable
Aux Load
Grid
Backup Load On-Grid Home Load
CT
Battery
Solar
AC cable DC cable
COM cable
On-Gen+AC couple
AC cable DC cable
CT
Battery
Solar
Grid
Backup Load
On-Grid Home Load
On-Grid Inverter
