ParallelParallel
Battery
CANBus
Modbus
RS-485
Batt Temp
Sensor
1 2 3 4 5 6 7 8 9 10 B B + - 1516 19 20

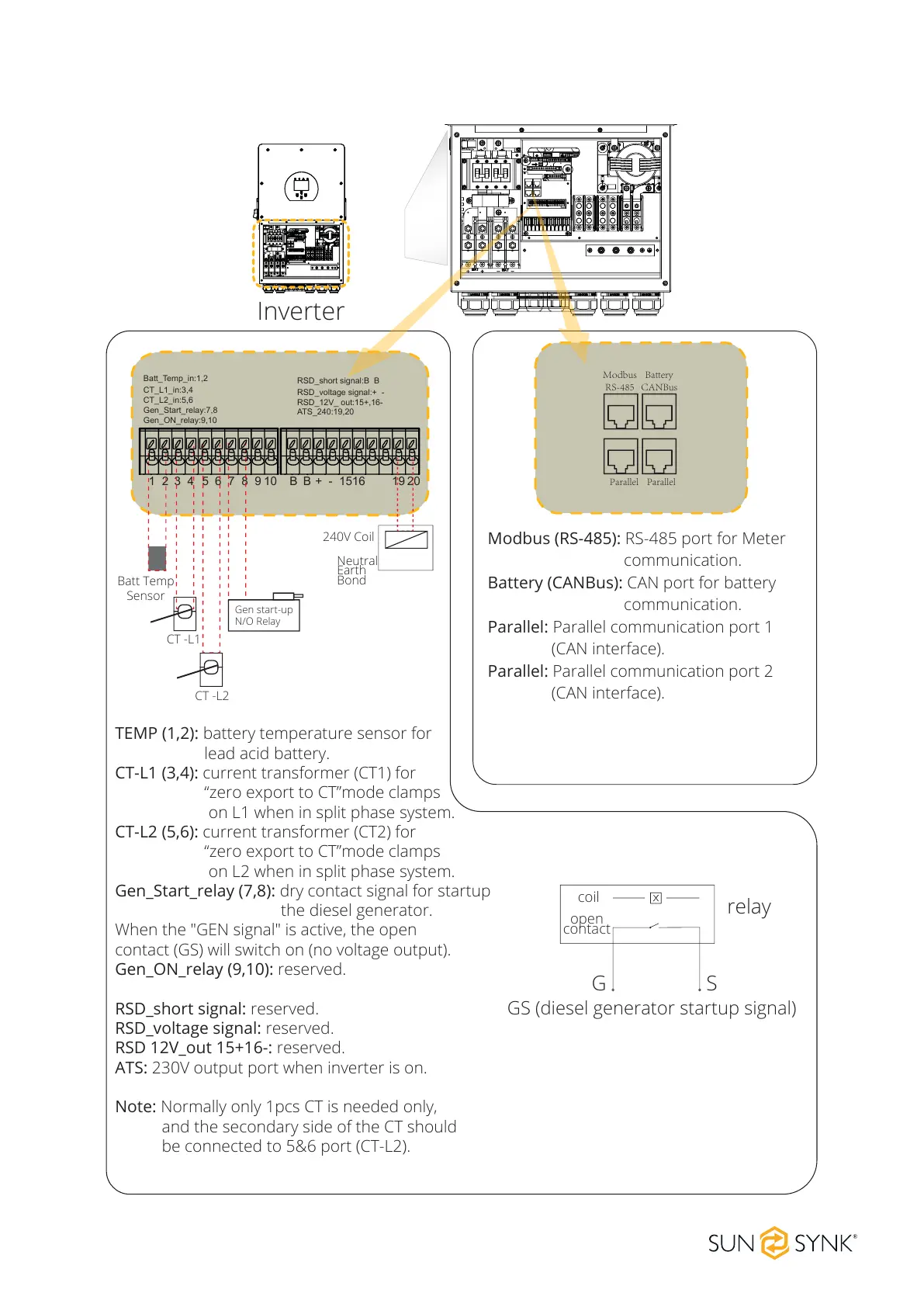

TEMP (1,2): battery temperature sensor for
lead acid battery.
CT-L1 (3,4): current transformer (CT1) for
“zero export to CT”mode clamps
on L1 when in split phase system.
CT-L2 (5,6): current transformer (CT2) for
“zero export to CT”mode clamps
on L2 when in split phase system.
Gen_Start_relay (7,8): dry contact signal for startup
the diesel generator.
When the "GEN signal" is active, the open
contact (GS) will switch on (no voltage output).
Gen_ON_relay (9,10): reserved.
RSD_short signal: reserved.
RSD_voltage signal: reserved.
RSD 12V_out 15+16-: reserved.
ATS: 230V output port when inverter is on.
Note: Normally only 1pcs CT is needed only,
and the secondary side of the CT should
be connected to 5&6 port (CT-L2).
CT -L2
CT -L1
Gen start-up
N/O Relay
Inverter
GS (diesel generator startup signal)
relay
coil
open
contact
G S
Modbus (RS-485): RS-485 port for Meter
communication.
Battery (CANBus): CAN port for battery
communication.
Parallel: Parallel communication port 1
(CAN interface).
Parallel: Parallel communication port 2
(CAN interface).
Batt_Temp_in:1,2
CT_L1_in:3,4
CT_L2_in:5,6
Gen_Start_relay:7,8
Gen_ON_relay:9,10
RSD_short signal:B B
RSD_voltage signal:+ -
RSD_12V_ out:15+,16-
ATS_240:19,20
Neutral
Earth
Bond
240V Coil
To Next Page
