Selecting the Mounting Area
This Sunsynk MAX is designed for outdoor use (IP65).
DO NOT install the inverter in the following areas:
Areas with high salt content, such as the marine environment. It will deteriorate the metal parts and pos-
sibly lead to water/dampness penetrating the unit.
Areas lled with mineral oil or containing splashed oil or steam such as found in kitchens. It will deterio-
rate plastic parts of the unit, causing those parts to fail or allow water/damp to penetrate the unit.
Areas that generate substances that adversely aect the equipment, such as sulphuric gas, chlorine gas,
acid, or alkali. These can cause the copper pipes and brazed joints to corrode and fail to conduct elec-
tricity reliably.
Areas that can cause combustible gas to leak, which contains suspended carbon-bre or ammable
dust, or volatile inammable such as paint thinner or gasoline.
Areas where there may be gas leaks and where gas may settle around the unit as this is a re risk.
Areas where animals may urinate on the unit or ammonia may be generated.
High altitude areas (over 2000 metres above sea level).
Environments where precipitation or humidity are above 95%.
Areas where the air circulation is too low.
Please AVOID direct sunlight, rain exposure, snow laying up during installation and operation. Before con-

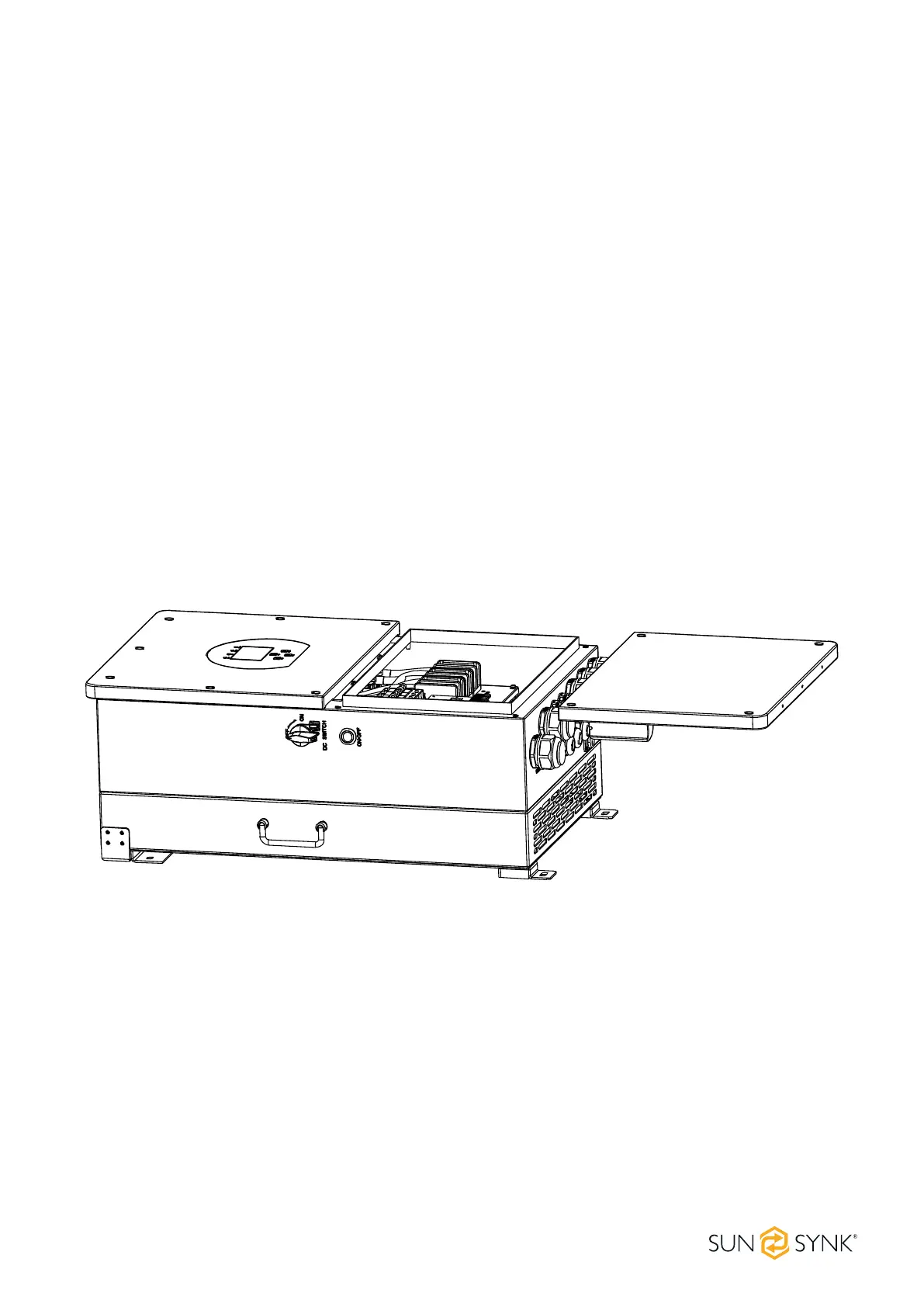

necting all wires, please take o the metal cover by removing screws as shown below:
Considering the following points before selecting where to install:
Please select a vertical wall with load-bearing capacity for installation, suitable for installation on concrete
or other non-ammable surfaces, installation is shown below.
Install this inverter at eye level in order to allow the LCD display to be read at all times.
The ambient temperature is recommended to be between -40~60ºC to ensure optimal operation.
Be sure to keep other objects and surfaces as shown in the diagram to guarantee sucient heat dissipa-
tion and enough space to remove wires.
Install the indoor unit on the wall where the oor height is higher than 1600mm.
For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm above and
below the unit, and 1000mm to the front of the unit.
