SunSynk SYNK-16K-SG01LP1 User Manual

SUNSYNK MAX | Installer Manual29

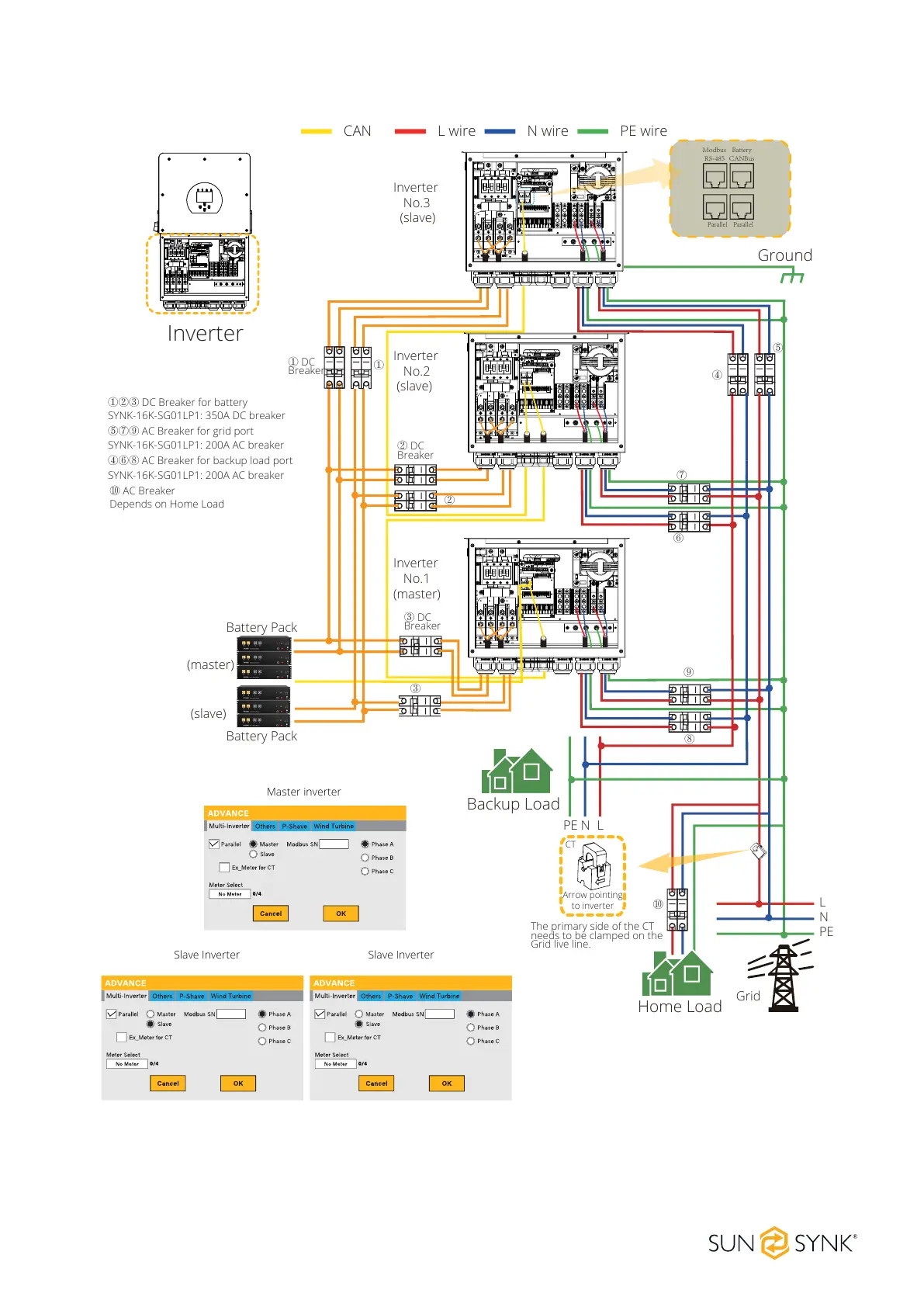

Single-Phase Parallel Connection
L wireCAN N wire PE wire
Inverter
No.3
(slave)
Inverter
No.2
(slave)
Inverter
No.1
(master)
Battery Pack
Battery Pack
① DC
Breaker
② DC
Breaker
③ DC
Breaker
③
②
Grid
L
N
PE
Ground
Backup Load
LNPE
④
⑥
⑨
Home Load
⑩
①②③ DC Breaker for battery
⑤⑦⑨ AC Breaker for grid port
④⑥⑧ AC Breaker for backup load port
⑩ AC Breaker
Depends on Home Load
SYNK-16K-SG01LP1: 200A AC breaker
SYNK-16K-SG01LP1: 350A DC breaker
SYNK-16K-SG01LP1: 200A AC breaker
⑦
⑤
⑧
CT
Arrow pointing
to inverter
The primary side of the CT
needs to be clamped on the
Grid live line.
(master)
(slave)
Master inverter
Slave Inverter Slave Inverter
①
Inverter
ParallelParallel
Battery
CANBus
Modbus
RS-485
01
02
03
