SUNSYNK MAX | Installer Manual28

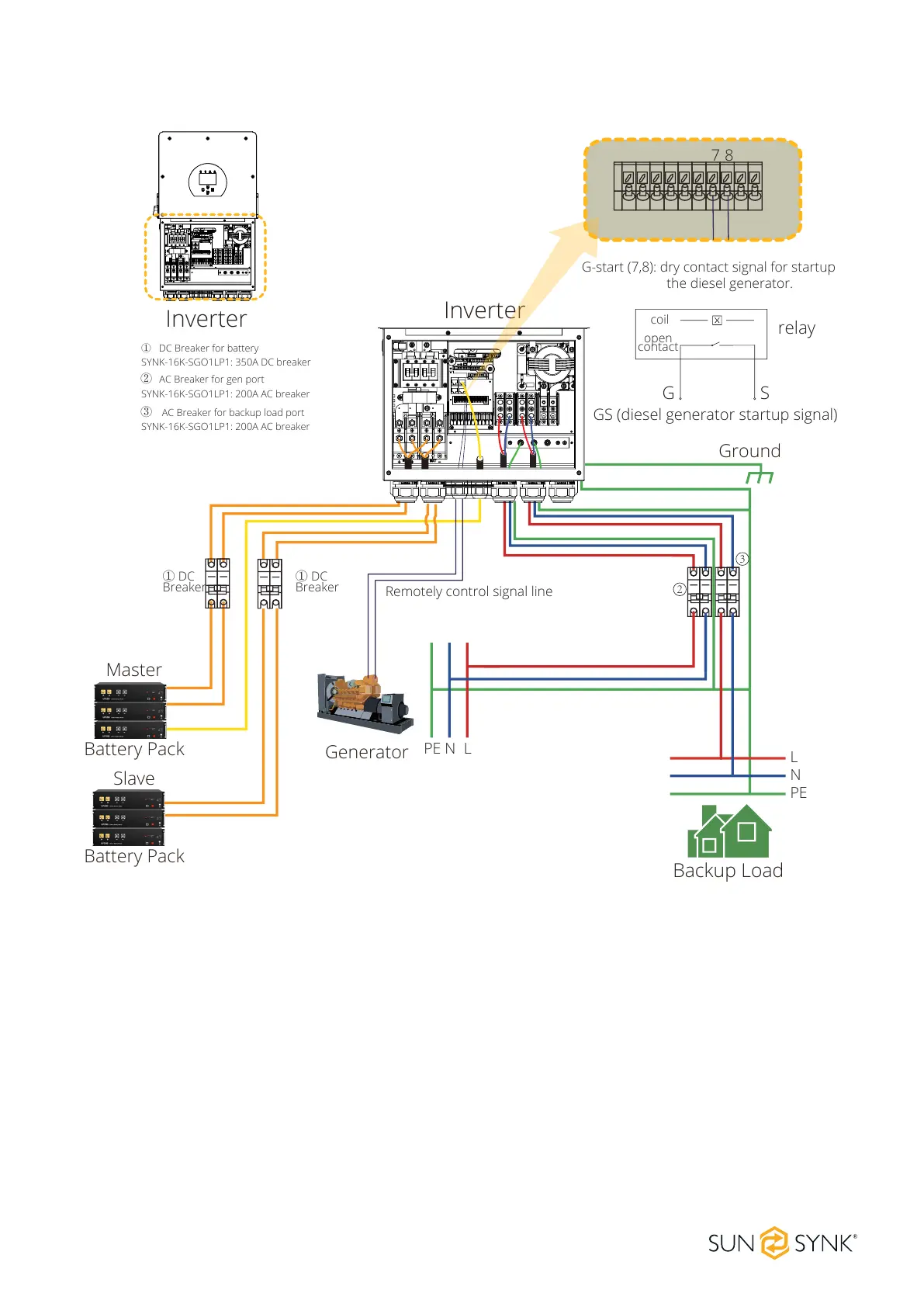

Typical Application of Diesel Generator
Inverter
Battery Pack
① DC
Breaker
① DC
Breaker
Backup Load
L
N
PE
LNPE
Ground
Generator
2
3
7 8
L wireCAN N wire PE wire
① DC Breaker for battery
SYNK-16K-SGO1LP1: 350A DC breaker
G-start (7,8): dry contact signal for startup
the diesel generator.
GS (diesel generator startup signal)
relay
coil
open
contact
G S
Remotely control signal line
Master
Battery Pack
Slave
Inverter
AC Breaker for gen port
SYNK-16K-SGO1LP1: 200A AC breaker
②
③
AC Breaker for backup load port
SYNK-16K-SGO1LP1: 200A AC breaker
