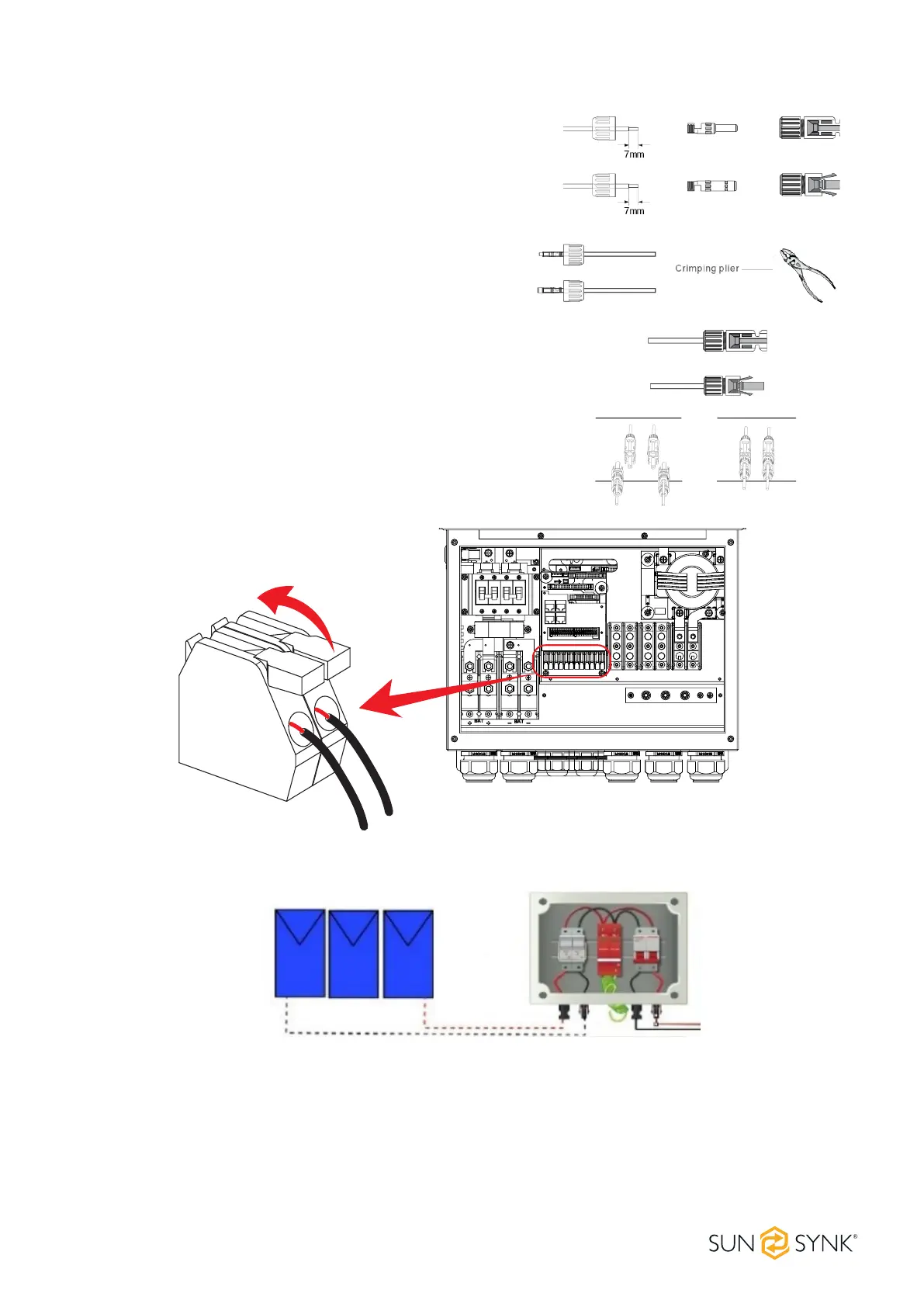

The correct steps in assembling the DC connector are explained below:
1. Strip 7mm of the plastic coating o the DC wire and
disassemble the connector cap nut.
2. Crimp metal terminals with crimping pliers.
3. Insert the contact pin into the connector housing until it
locks into place. Then screw the cap nut onto the connector
housing. Torque to 2.5-3 N.m.
4. Finally, insert the DC connector into the positive and negative
input of the inverter.
PV Protection
Solar surge
protection and
fuse
