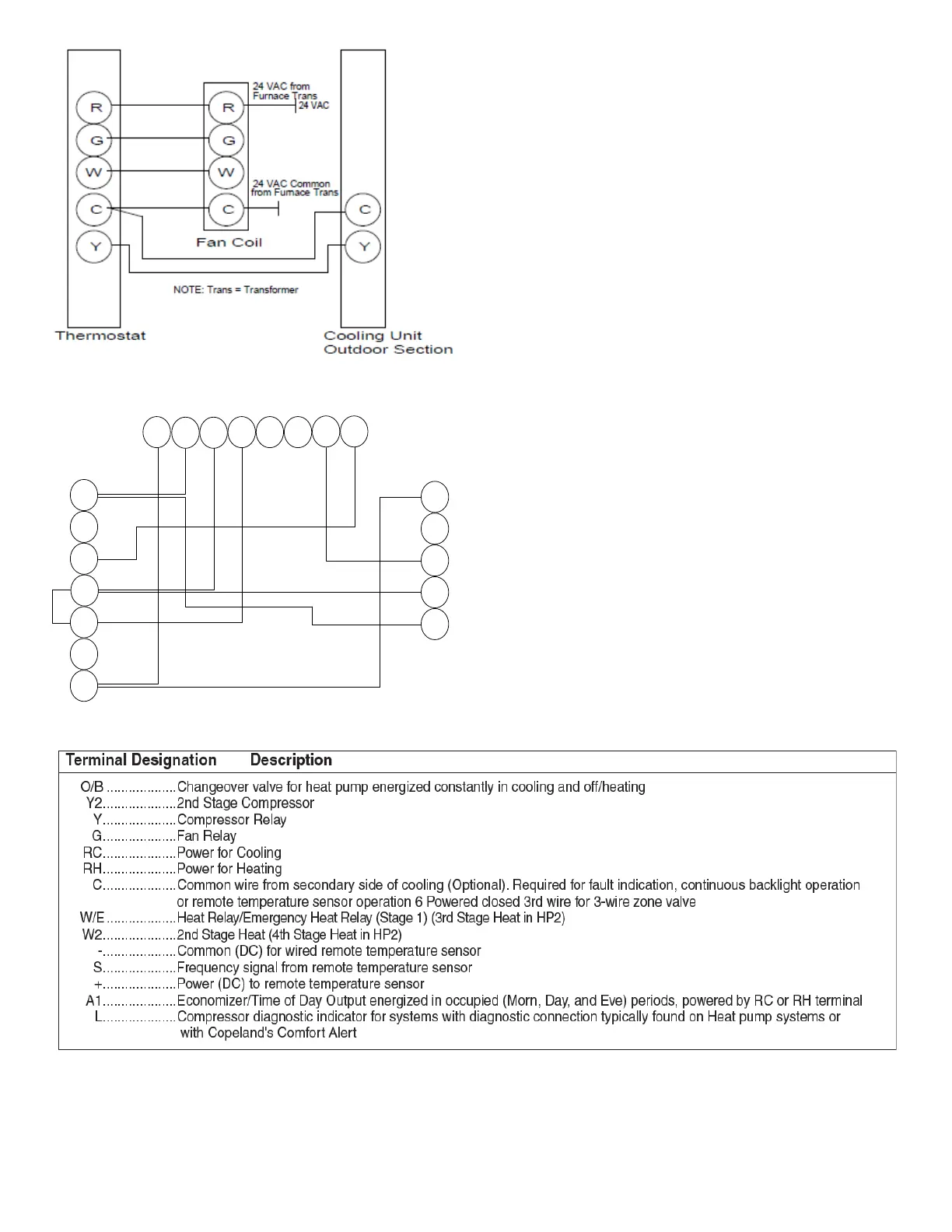

Figure 24: Same Thermostat and Transformer;
Separate Air Handler and Cooling Unit
R
C
W2 E
W1
Y1
OB
G
R
Y
G
W2
W1
OB
C
R
Y
W2
O
C
HONEYWELL T8611G2028
Figure 25: Honeywell T9611 Heat Pump Thermostat
Connections
Table 31: White Rodgers Thermostat Terminal Designations
