Suntherm SEHX - CEHX;CCWE Dimension Data DX Cool W; or W;O Elect Heat; SCWW General Specifications; CCWW General Specifications; CEHX;CCWE;CDXW;CCWW Dimensional Data

MORTEXPRODUCTSINC.501TERMINALRDFORTWORTH,TEXAS76106 Page5
Model No.
Nominal
Tons
Blower
HP
CFM @
0.2" ESP
With Coil
Nominal Hot Water
Capacity in BTU/H
@140 DEGF EWT
SCWW-18-21-0A-0A78 1.50 1/4 720 21,000
SCWW-19-22-0E-0A78 1.58 1/4 805 22,000
SCWW-24-23-09-0A78 2.00 1/4 850 23,000
SCWW-25-23-0H-0A70 2.08 1/4 1040 23,000
SCWW-30-27-0J-0A70 2.50 1/4 1055 27,000
SCWW-31-28-05-0A70 2.58 1/4 1040 28,000
SCWW-34-30-0K-0A70 2.83 1/4 1084 30,000
SCWW-35-30-01-0A70 2.92 1/4 1049 30,000
SCWW-36-32-0K-0A70 3.00 1/4 1100 32,000
SCWW-37-32-01-0A70 3.08 1/4 1065 32,000
Table 7 SCWW General Specifications
Model No.
Nominal
Tons
Blower
HP
CFM @
0.2" ESP
With Coil
Nominal Hot Water
Capacity in BTU/H
@140 DEGF EWT
CCWW-18-21-0A-0A78 1.50 1/4 720 21,000
CCWW-19-22-0E-0A78 1.58 1/4 805 22,000
CCWW-24-23-09-0A78 2.00 1/4 850 23,000
CCWW-25-23-0H-0A70 2.08 1/4 1040 23,000
CCWW-30-27-0J-0A70 2.50 1/4 1055 27,000
CCWW-31-28-05-0A70 2.58 1/4 1040 28,000
CCWW-34-30-0K-0A70 2.83 1/4 1084 30,000
CCWW-35-30-01-0A70 2.92 1/4 1049 30,000
CCWW-36-32-0K-0A70 3.00 1/4 1100 32,000
CCWW-37-32-01-0A70 3.08 1/4 1065 32,000
Table 8 CCWW General Specifications
Available Blower Motors on Hot Water Heat Models
1. Standard Blower Motor - – 3 SPD PSC Motor
2. Optional Blower Motor 5 SPD Constant Torque
Motor

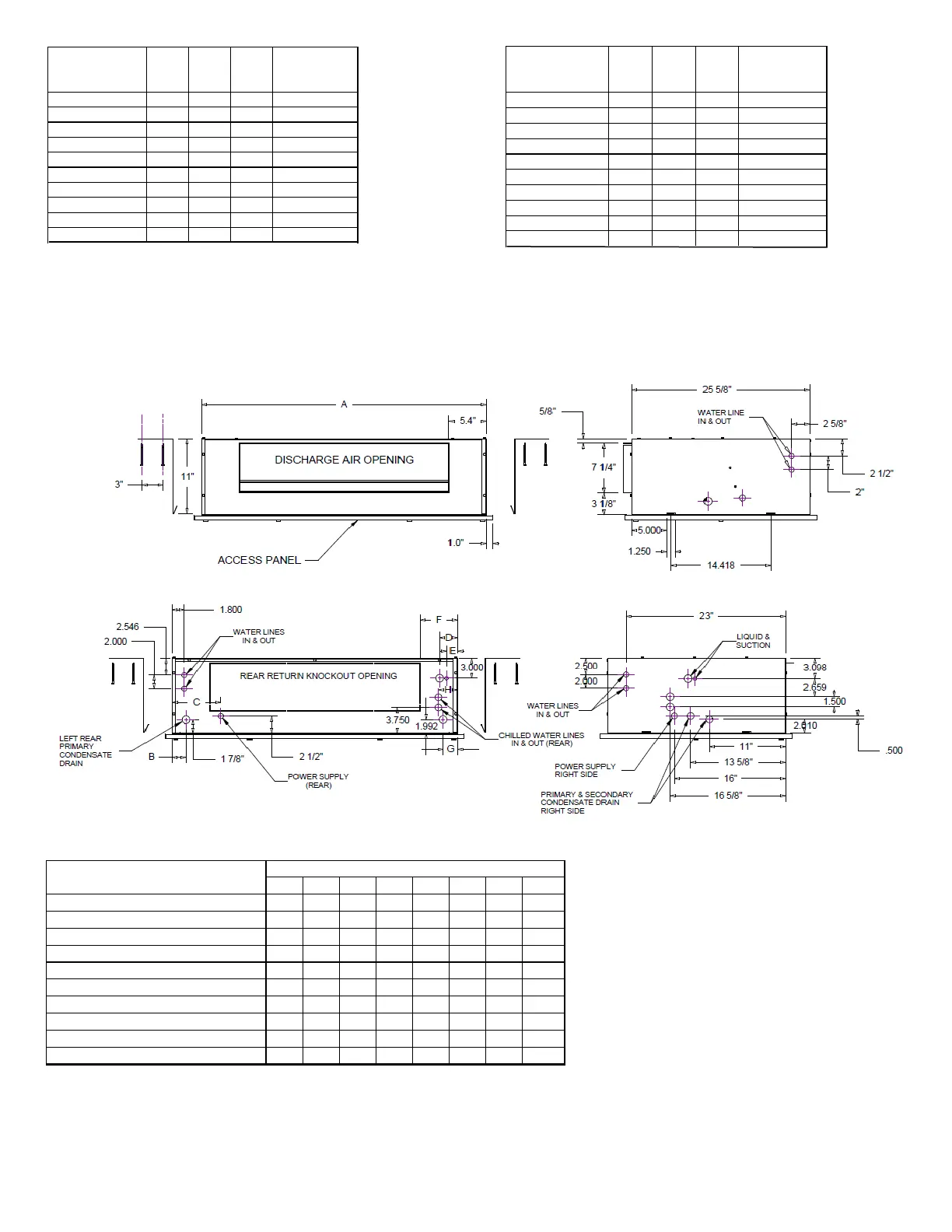

Figure 2: CEHX/ CCWE/ CDXW/ CCWW DIMENSIONAL DATA DX OR CHILLER WATER COOLING WITH
OR WITHOUT ELECTRIC HEAT
ABCDEFGH
CEHX / CCWE / CDXW / CCWW - 18 41 2.625 7.125 4 3 5.25 2.625 3.75
CEHX / CCWE / CDXW / CCWW - 19 41 2.625 7.125 4 3 5.25 2.625 3.75
CEHX / CCWE / CDXW / CCWW - 24 41 2.625 7.125 4 3 5.25 2.625 3.75
CEHX / CCWE / CDXW / CCWW - 25 47 2 10.5 2.5 1.5 4.625 2 2.6875
CEHX / CCWE / CDXW / CCWW - 30 47 2 10.5 2.5 1.5 4.625 2 2.6875
CEHX / CCWE / CDXW / CCWW - 31 47 2 10.5 2.5 1.5 5.875 2 2.6875
CEHX / CCWE / CDXW / CCWW - 34 53.5 3.25 13.75 3.25 2.75 5.875 3.25 3.9375
CEHX / CCWE / CDXW / CCWW - 35 53.5 3.25 13.75 3.25 2.75 5.875 3.25 3.9375
CEHX / CCWE / CDXW / CCWW - 36 60.5 3.25 17.5 3.25 2.75 5.875 3.25 3.9375
CEHX / CCWE / CDXW / CCWW - 37 60.5 3.25 17.5 3.25 2.75 5.875 3.25 3.9375
Model Number
Physical Dimensions
Table 9: CEHX/ CCWE/ CDXW/ CCWW DIMENSIONAL DATA
