Suntherm SEHX - Wire Diagram Hydronic Heat - PSC Motor - W;Fs - no Pump; Wire Diagram Hydronic Heat - PSC Motor - W;Fs and Pump

MORTEXPRODUCTSINC.501TERMINALRDFORTWORTH,TEXAS76106 Page36

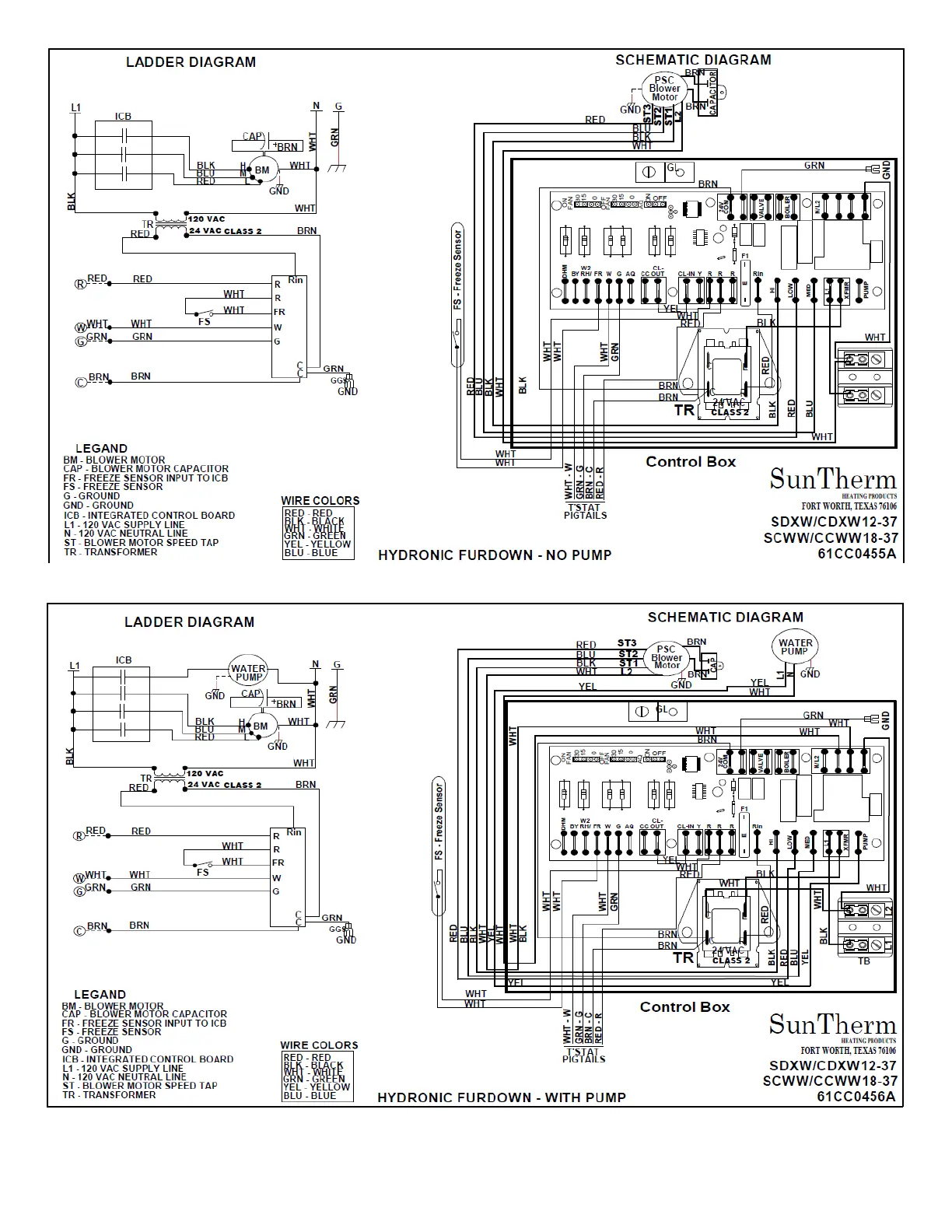

Figure 36 SDXW, CDXW, SCWW, CCWW - 18 – 37 BTU/H – Hydronic Heat – PSC Blower Motor W/ Freeze Switch
– No Water Pump
Figure 37 SDXW, CDXW, SCWW, CCWW - 18 – 37 BTU/H – Hydronic Heat – PSC Blower Motor w/ Freeze Switch
– With Water Pump
