Suntherm SEHX - SEHX;SCWE;SDXW;SCWW Dimensional Data

MORTEXPRODUCTSINC.501TERMINALRDFORTWORTH,TEXAS76106 Page6

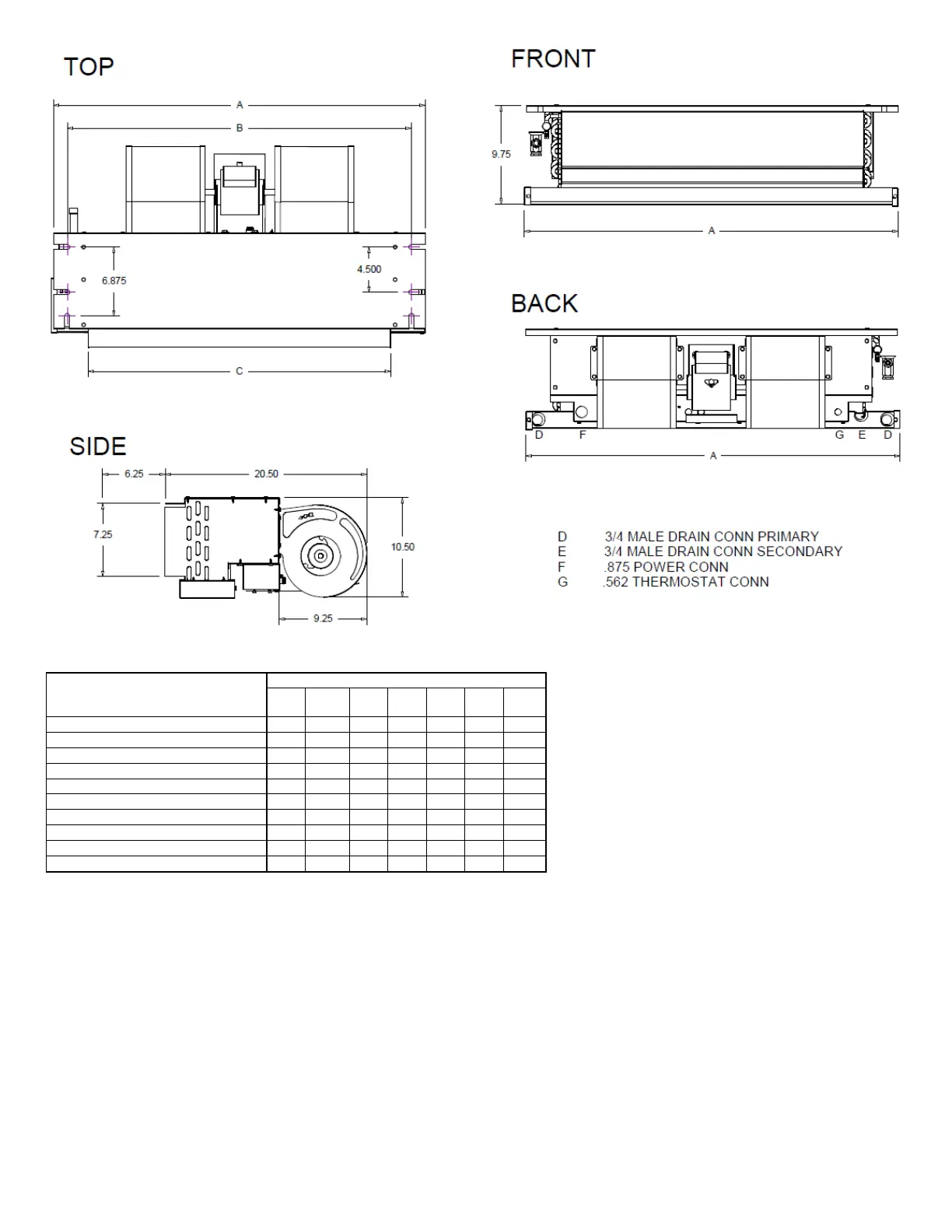

Figure 3: SEHX/ SCWE/ SDXW/ SCWW DIMENSIONAL DATA DX OR CHILLED WATER COOLING WITH
OR WITHOUT ELECTRIC HEAT
Liquid
Line
Suction
Line
Evap.
Rows A B C
Ship
Weight
SEHX / SCWE / SDXW / SCWW - 18 3/8 3/4 3 37 34.25 30 60
SEHX / SCWE / SDXW / SCWW - 19 3/8 3/4 4 37 34.25 30 65
SEHX / SCWE / SDXW / SCWW - 24 3/8 3/4 3 37 34.25 30 60
SEHX / SCWE / SDXW / SCWW - 25 3/8 3/4 4 45 42.25 38 75
SEHX / SCWE / SDXW / SCWW - 30 3/8 3/4 3 45 42.25 38 70
SEHX / SCWE / SDXW / SCWW - 31 3/8 3/4 4 45 42.25 38 75
SEHX / SCWE / SDXW / SCWW - 34 3/8 3/4 3 49 46.25 42 74
SEHX / SCWE / SDXW / SCWW - 35 3/8 3/4 4 49 46.25 42 80
SEHX / SCWE / SDXW / SCWW - 36 3/8 3/4 3 56 53.25 49 85
SEHX / SCWE / SDXW / SCWW - 37 3/8 3/4 4 56 53.25 49 90
Model Number
Physical Dimensions
Table 10: SEHX/ SCWE/ SDXW/ SCWW DIMENSIONAL DATA
