Suntherm SEHX - White Rodgers Multistage Heat; Cool Tstat Connections; White Rodgers Heat; Cool Two Trans Tstat Connections

MORTEXPRODUCTSINC.501TERMINALRDFORTWORTH,TEXAS76106 Page30

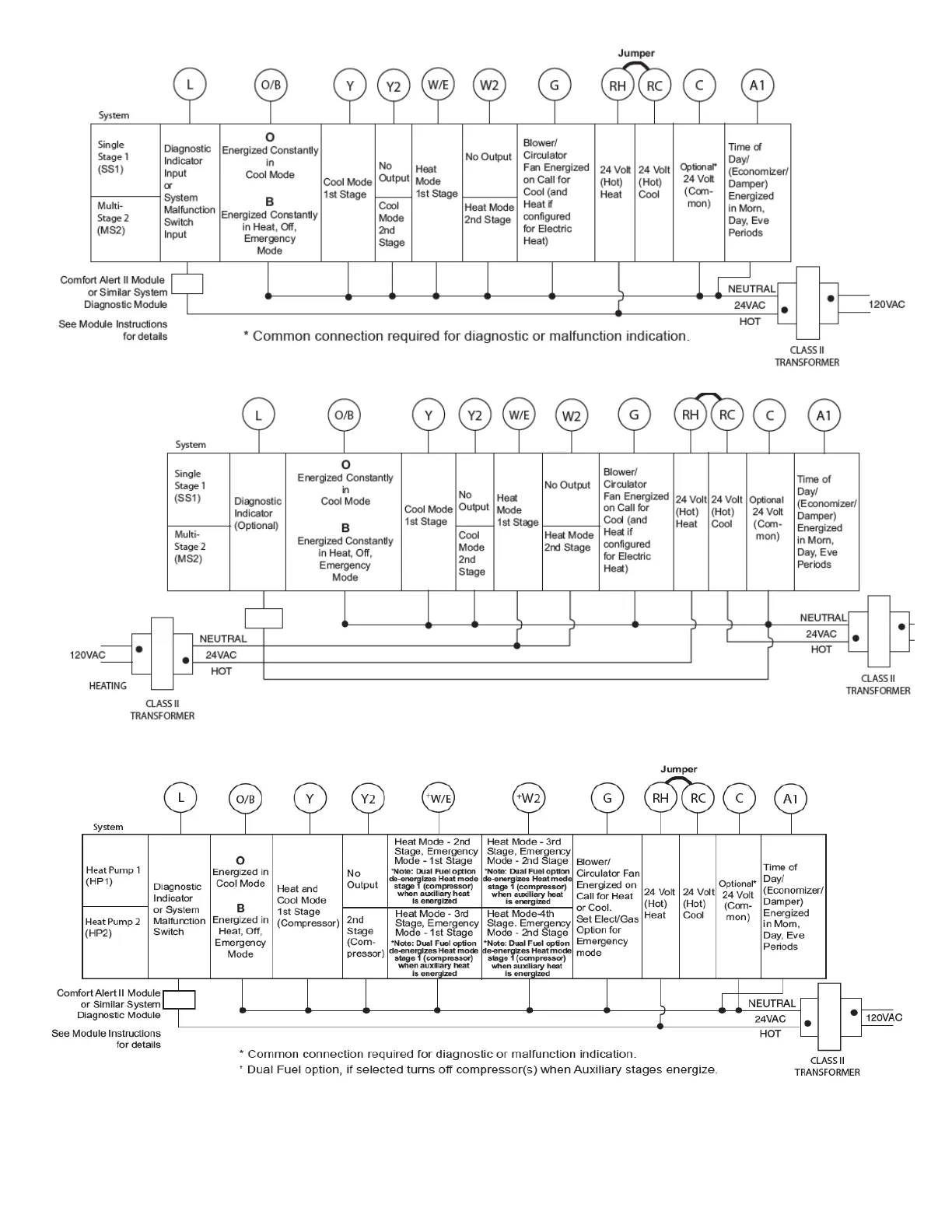

Figure 26: White Rodgers Multistage Heating / Cooling Thermostat Connections
Figure 27: White Rodgers multistage heating / cooling thermostat connections with a two transformers. Remove RH
and RC jumper wire when two transformers are being used.
Figure 28: White Rodgers Heating / Cooling / Heat Pump Thermostat Connections with a Transformer on Heating
Unit.
