entry attempt. When the password protection feature is not purchased, the setup, calibration, manual and parameter
change screens will be automatically enabled without password protection.
Whenever your password is accepted you will see a splash screen for a few seconds (this delay may be changed in
the setup) and you will be redirected to the Setup submenus.

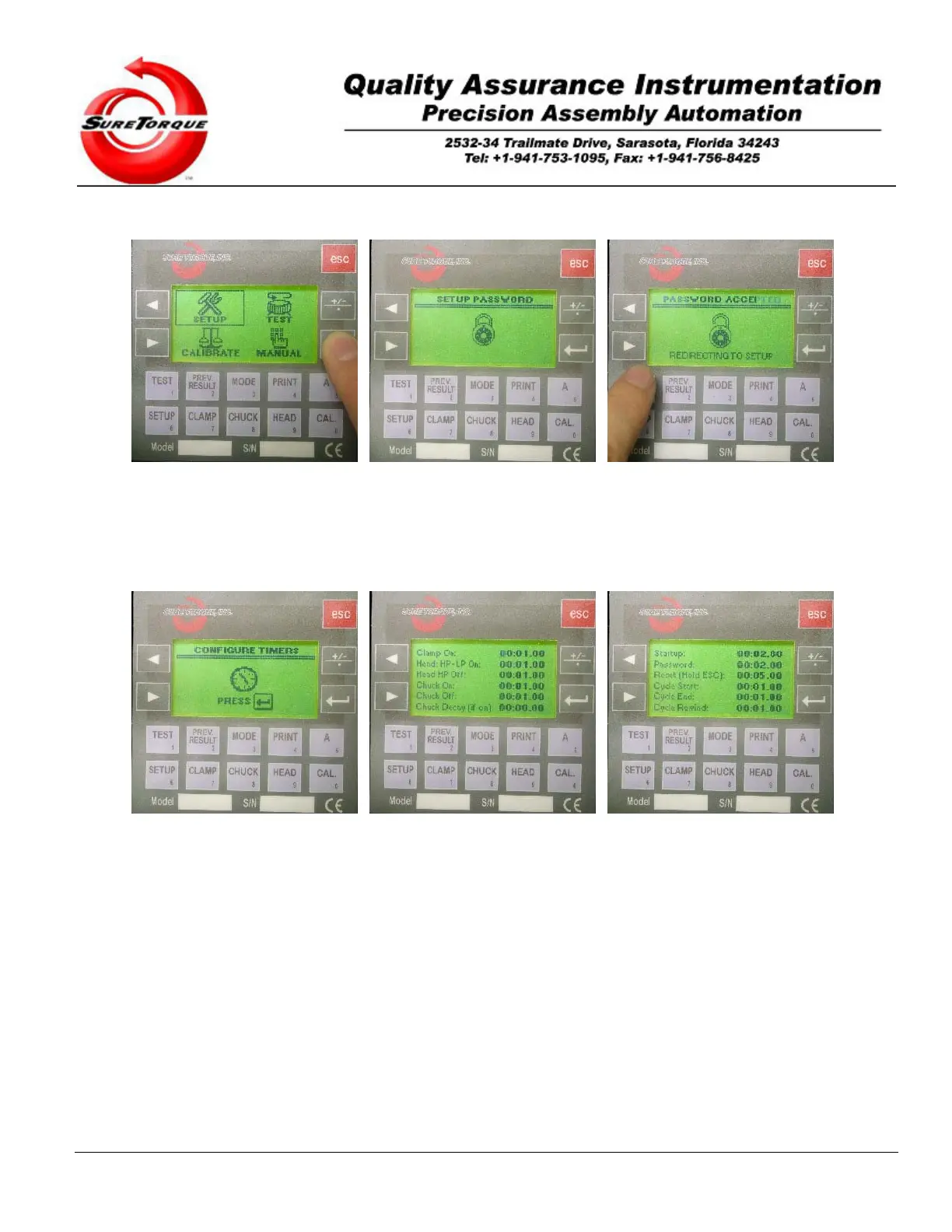

3.2.2.1. Timer configuration
There are seven submenus in the setup menu. The first submenu is the timer configuration.
This menu may be used to modify the default value of the built-in delays. Navigation is possible with the ENTER,
ESC and ARROW buttons. ENTER is used to get in the parameter change screen, then it is used to accept the
modified values. The numeric buttons may be used for editing the various values and the ARROW buttons may be
used to navigate between the values on a screen. The ESC button is used to jump from one screen to the next.
Description of the values can be changed in the timer submenu:
Clamp-On: After the chuck is rewinded to the start position, this timer may be configured to delay the clamping
sequence.
Head-HP-LP On: After the clamp is activated this timer will determine the delay before the head goes down.
Head HP-Off: In certain test modes it is required to eliminate, the topload force on the closure created by the weight
of the head. It is done by turning off the high-pressure mode while the low-pressure mode is on. This timer configures
the delay before the PLC turns off the high-pressure actuator.
Chuck On: This value is used to configure the delay between the head lowering cycle and actuating the chuck.
Chuck Off: This value will determine the delay between the chuck releases the cap and the head raises to its upper
position.
Chuck decay: In application modes you have the option to set the torque tester not to release the cap immediately
