9

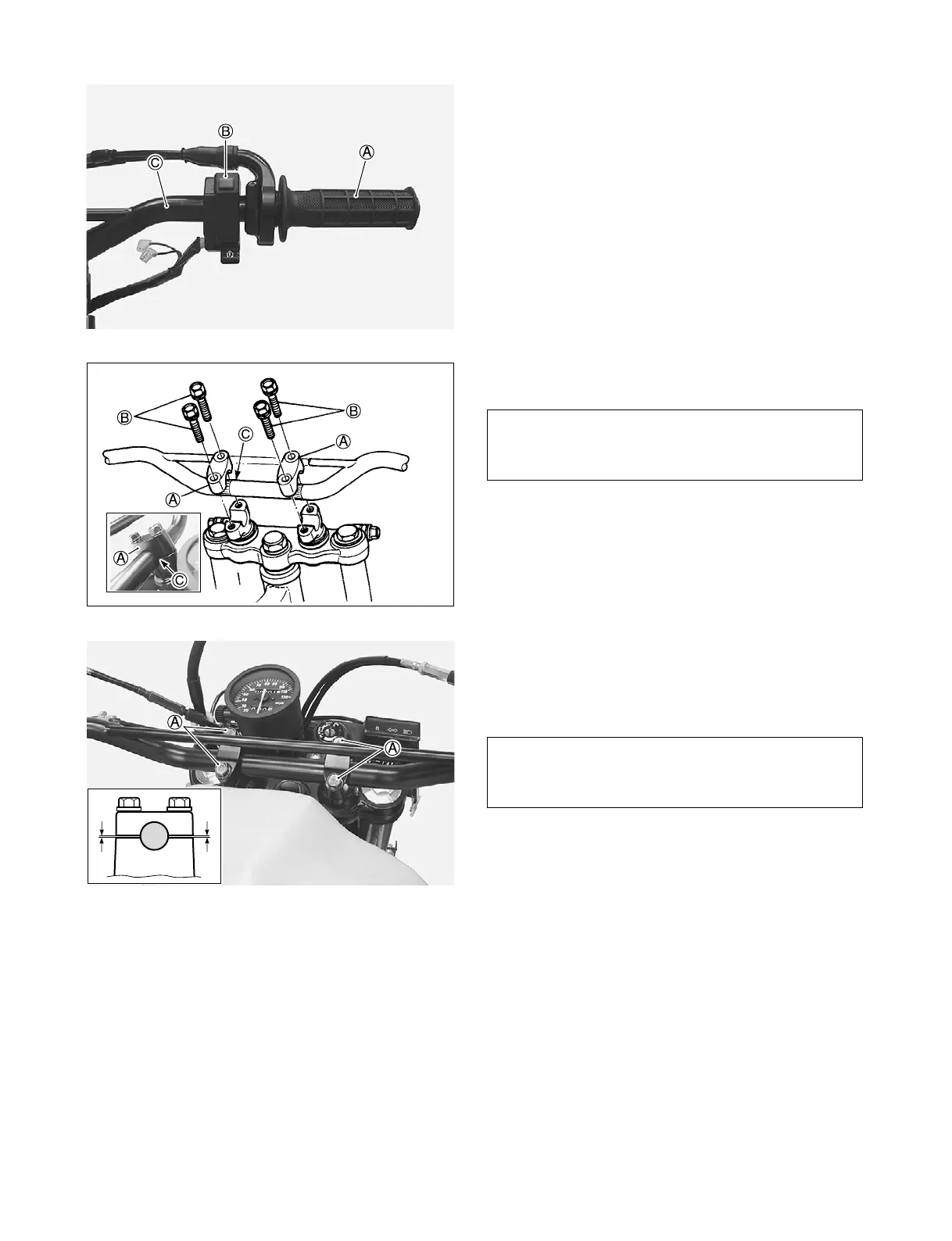

Loosen the handlebar right switch retaining screws
and throttle housing retaining screws.
Insert the handlebar right switch and throttle assembly
onto the handlebars.
A: Throttle assembly
B:
Right switch
C: Handlebars
A: Clamp
B: 8 × 35 mm “7” marked bolt (with lock washer)
C: Dot mark
Tighten the handlebar clamp bolts to the specified
torque.
Handlebar clamp bolt:
23 N·m (2.3 kgf-m, 16.5 lbf-ft)
A: 8 × 35 mm “7” marked bolt (with lock washer)
NOTE:
Align the dot mark on the handlebars with the mat-
ing surface of the front side of left clamp.
NOTE:
Make sure that the clearances of front and rear of
the clamp is equalized as shown.
Install the handlebars assembly with the two clamps
and
the four bolts.
To Next Page
