8

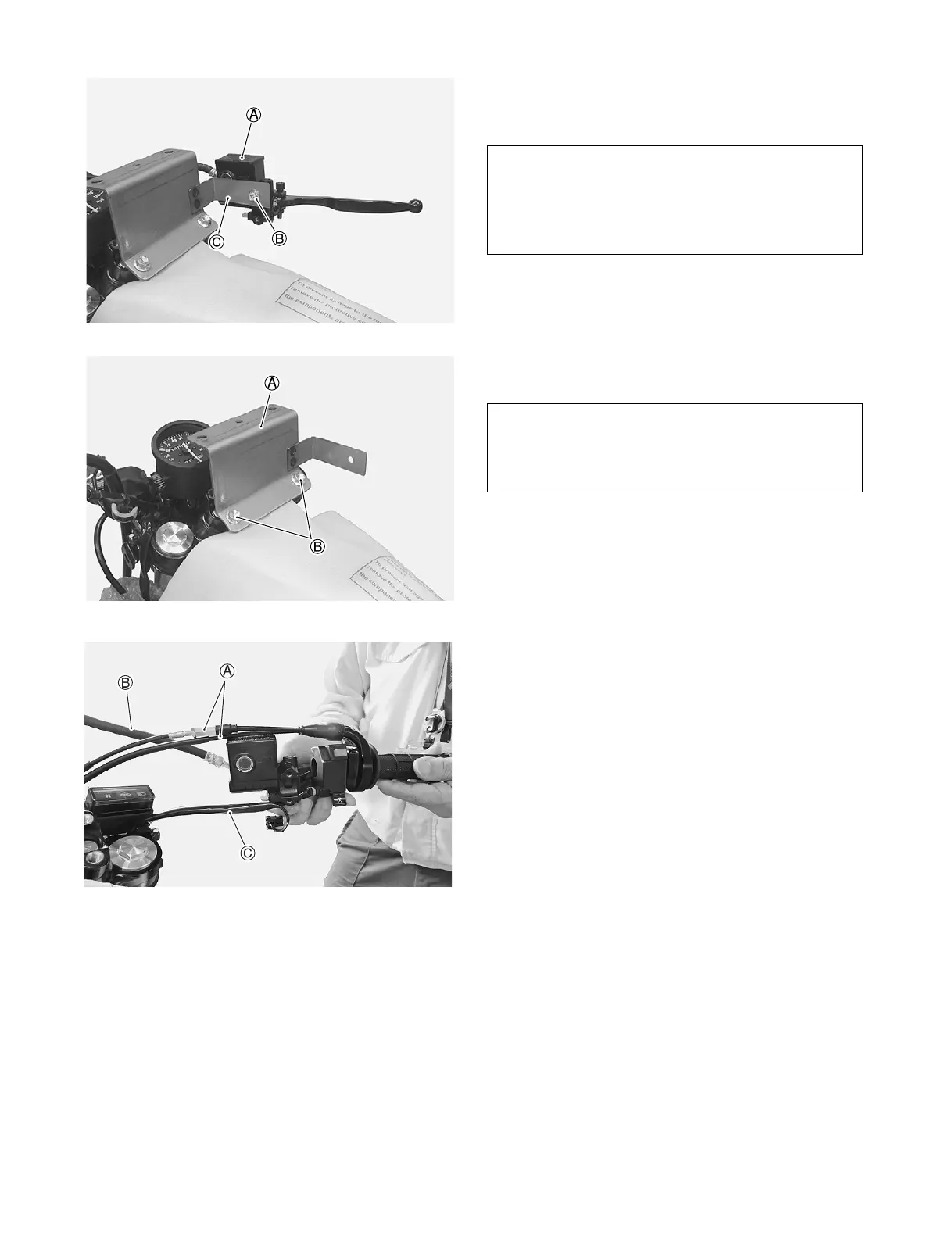

Remove the bolt to take off the front brake master cyl-
inder from the bracket.
A: Front brake master cylinder
B: Bolt
C: Bracket
Remove the bolts to take off the bracket from the han-
dlebar holder.
A: Bracket
B: Bolt
NOTE:
• Keep the position of front brake master cylinder
with its cap facing upwards until it is installed.
• The bolt is not necessary to assemble the motor-
cycle.
NOTE:
• Be careful not to damage the fuel tank.
• The bracket and bolts are not necessary to
assemble the motorcycle.
HANDLEBARS
Check the routing as shown in the photograph.
A: Throttle cables
B: Front brake hose
C: Right switch wiring harness
