25

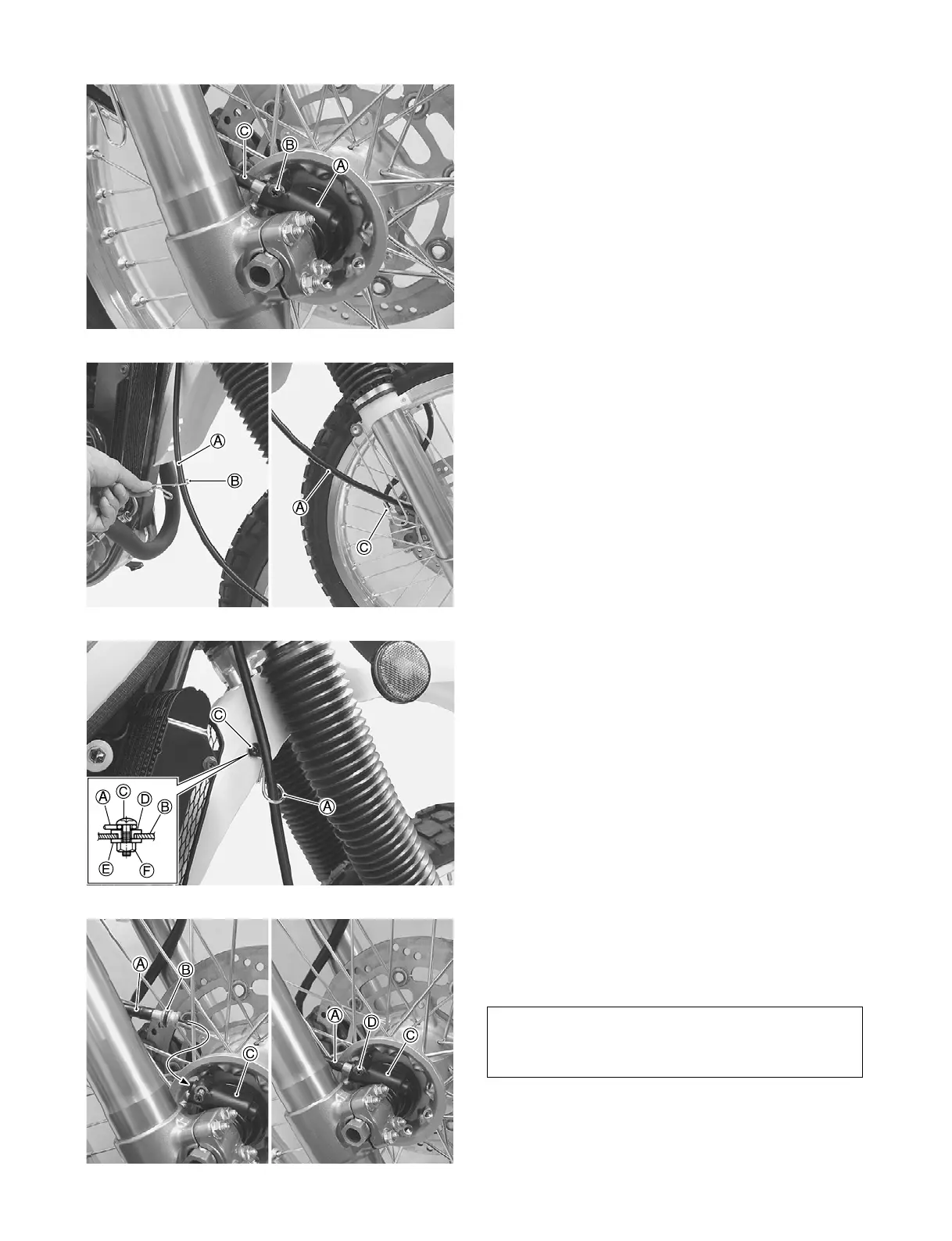

SPEEDOMETER CABLE GUIDE
Remove the screw.
Remove the speedometer cable from the speedometer
drive gearbox.
A: Speedometer drive gear box
B: Screw
C: Speedometer cable
Pass the speedometer cable through the two guides.
A: Speedometer cable
B: Cable guide
C: Cable guide
Install the cable guide to the front fender.
A: Cable guide
B: Front fender
C: 6 × 16 mm screw
D: Stepped washer OD:16.0 mm ID:6.5 mm T:3.5 mm
E: Washer OD:18.0 mm ID:6.5 mm
F: 6 mm nut
Reinsert the speedometer cable end into the hole of
speedometer drive gearbox.
Reinstall the speedometer cable to the drive gearbox
with a screw.
A: Speedometer cable
B: “O” ring
C: Speedometer drive gear box
D: Screw
NOTE:
Confirm that the “O” ring is attached on the cable
end.
