ENGINE
3-4

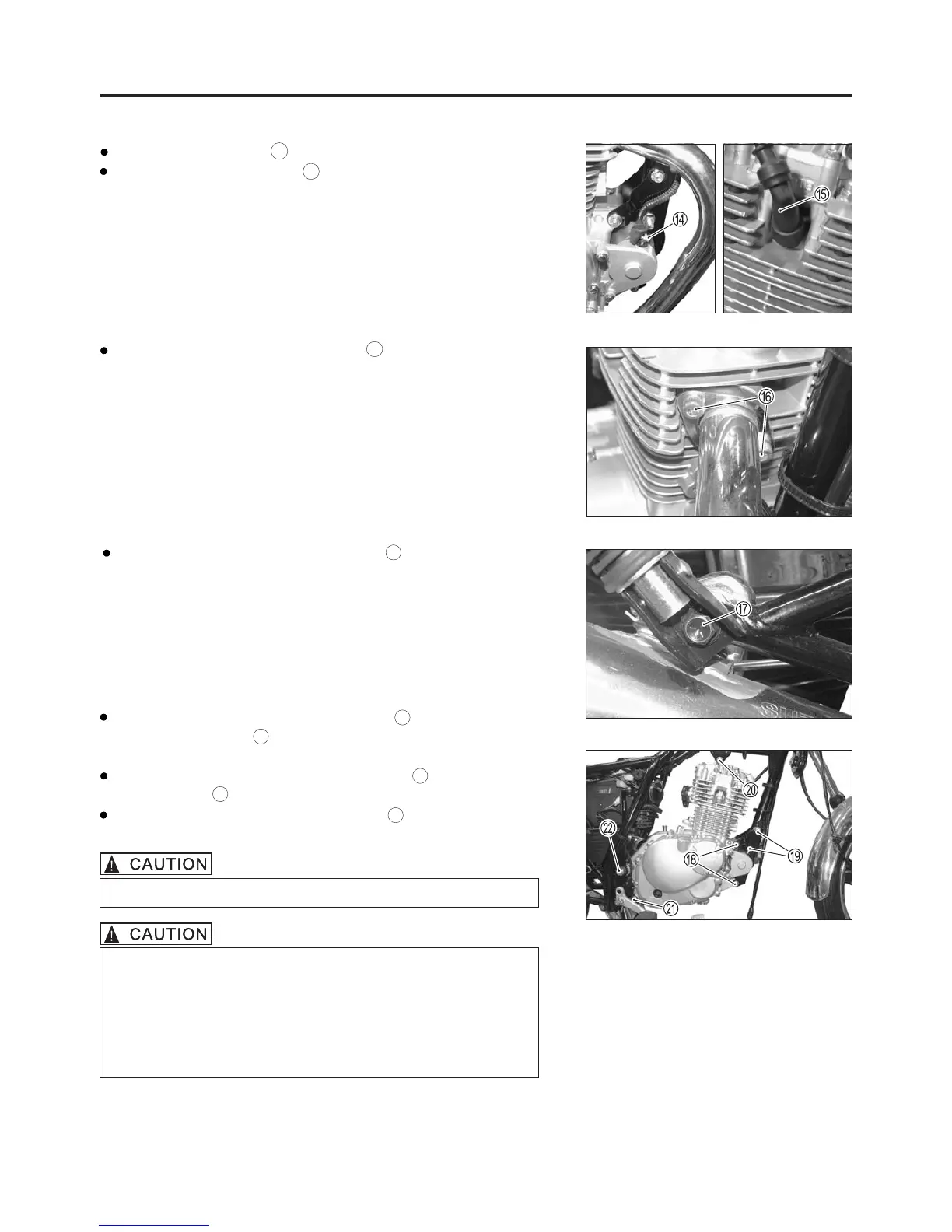

Remove the lead wire of starter motor wire.
Take off the spark plug cap .
Remove the muffler mounting bolt .
Remove the muffler mounting bolts then take off the
muffler.
,
Remove the engine front mounting bolt and engine lower
hanging plate bolt , take off the engine lower hanging
plate.
Remove the engine upper mounting bolt and rear lower
mounting bolt .
Remove the rear swing arm shaft nut , draw out the rear
swing arm shaft, take out the engine from the right side.
,
Be careful not to draw out the swing arm pivot
shaft completely from the left side swing arm pivot
hole Insert the shaft or rod into the right side pivot
hole from the right side of the frame to keep the
alignment of the frame holes and swing arm pivot
holes.
.The engine must be taken out from the right side
17
16
14
15
18
19
20
21
22
