Sveaverken F100 Auto Steer System Software User Manual

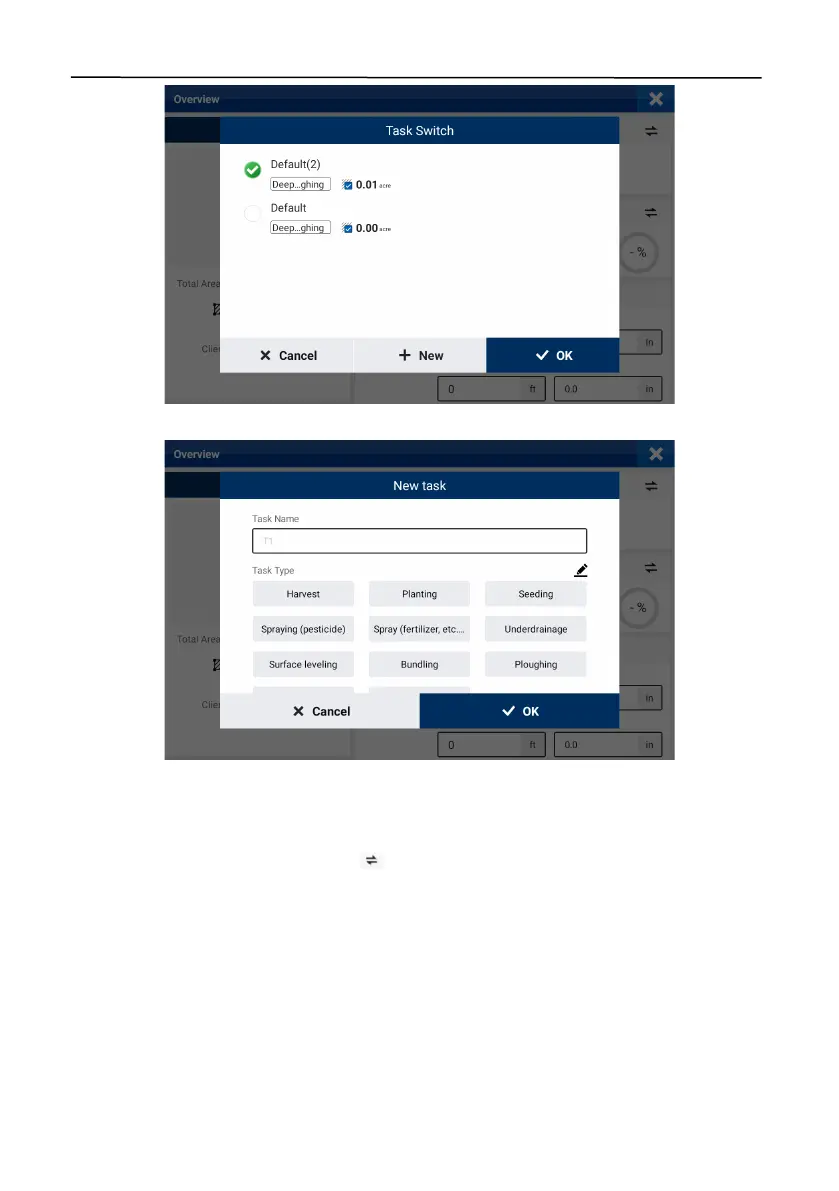

Figure 46.
Switch the task
Figure 47.
Create a task
3.2.3 Selecting a Boundary (Available after activating advanced mode)
The boundary name, signal source used, and creation time are displayed in the
Boundary
section
on the right of the
Overview
screen. Tap to switch to another boundary bound to the same
field. If no boundary is required for the operation, keep the boundary part empty. Refer to section
3.3 "Creating a Boundary and Guidance Line" for details on boundary creation.
