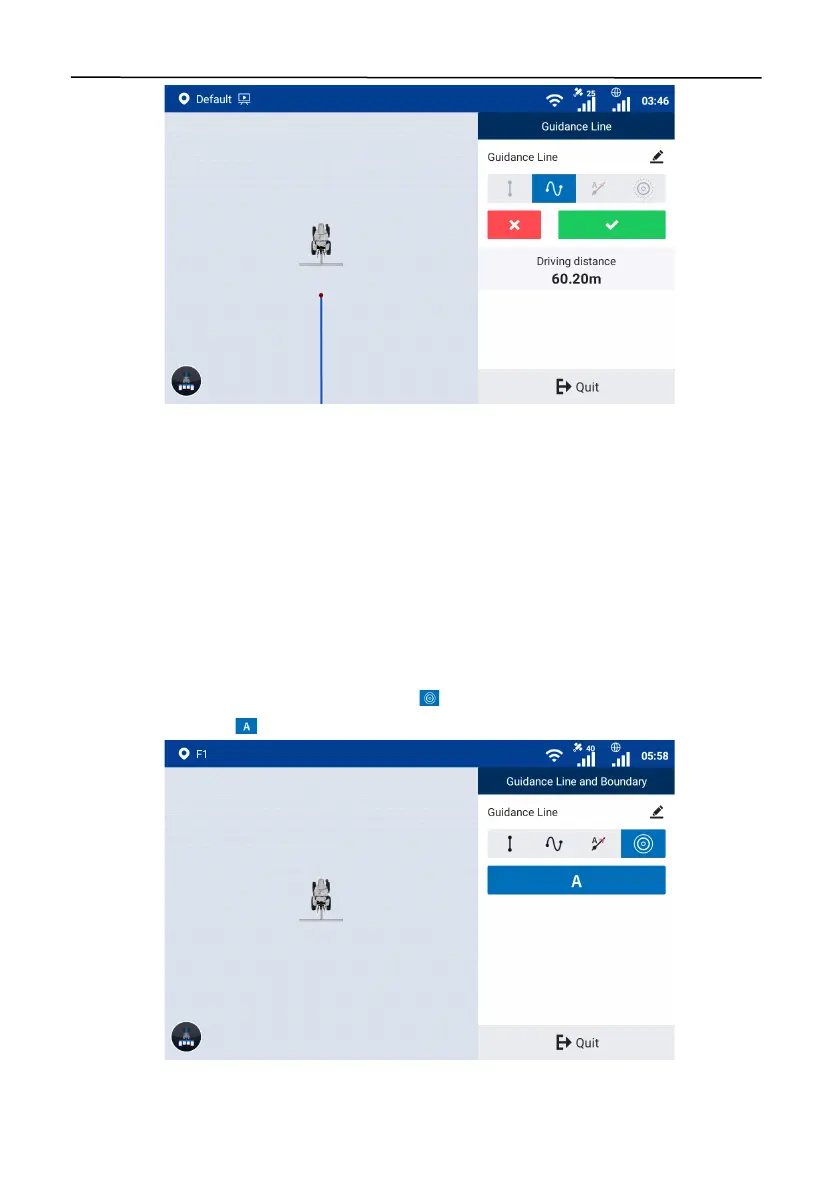

Figure 67.
Confirm the curve line
Note:
1. Point A is the start point and point B is recommended to be a point on the headland at the other
side of the field.
2. The system automatically extends the line segments beyond the two end points along the
tangent directions of the two end points, so the line segments beyond the end points are straight
lines.
Pivot mode
Record an arc AB to determine the pivot point and radius. This mode is applicable to fields using
the center-pivot irrigation method.
Access the guidance line creation screen, and tap to select the pivot mode. Drive the vehicle to
the start point, and tap to set the current position as point A.
Figure 68.
Set point A
