AMI INSPECTOR pH
Product Description
A-96.250.761 / 161017 9

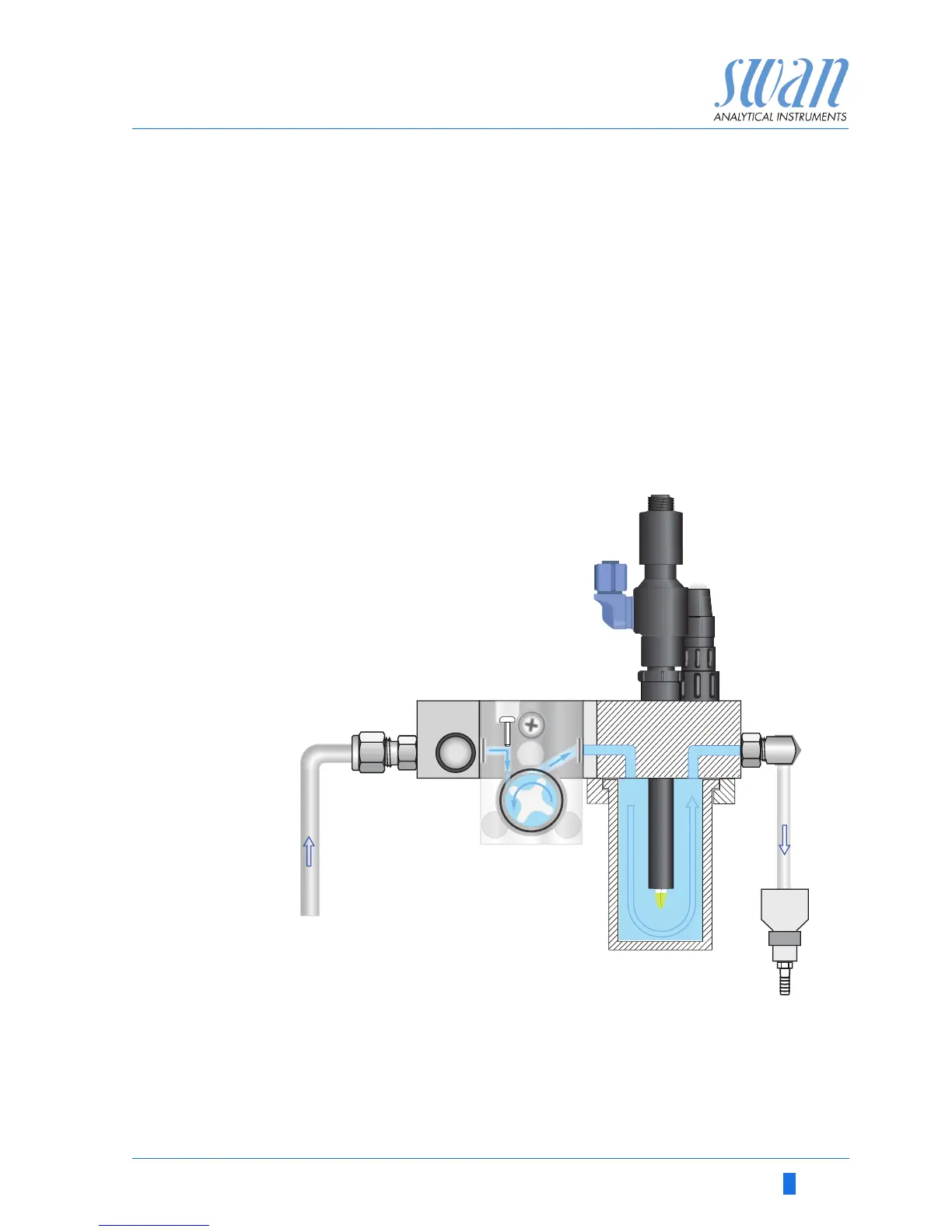

Fluidics The flow cell (QV-Flow) consists of the flow cell block [E] and the
vessel [G].
The pH sensor [A] and the temperature sensor [B] are screwed into
the flow cell block [E].
The sample enters at the sample inlet [C]. It flows through the flow
regulating valve [D], where the flow rate can be adjusted. Then the
sample flows via the flow sensor [F] and the flow cell block [E] into
the vessel [G], were the pH of the sample is measured. The pH val-
ue depends on the sample temperature. The measuring value of
the temperature sensor [B] is used to recalculate the pH measuring
value to a predefined average sample temperature.
The sample leaves the vessel via flow cell block through the sam-
ple outlet [H] and flows into the drain [I].
A
B
C
D
E
pH Sensor
Temperature sensor
Sample inlet
Flow regulating valve
Flow cell block
F
G
H
I
Flow sensor
Vessel
Sample outlet
Drain
A
B
CD E
F
G
H
I
