AMI INSPECTOR pH
Installation

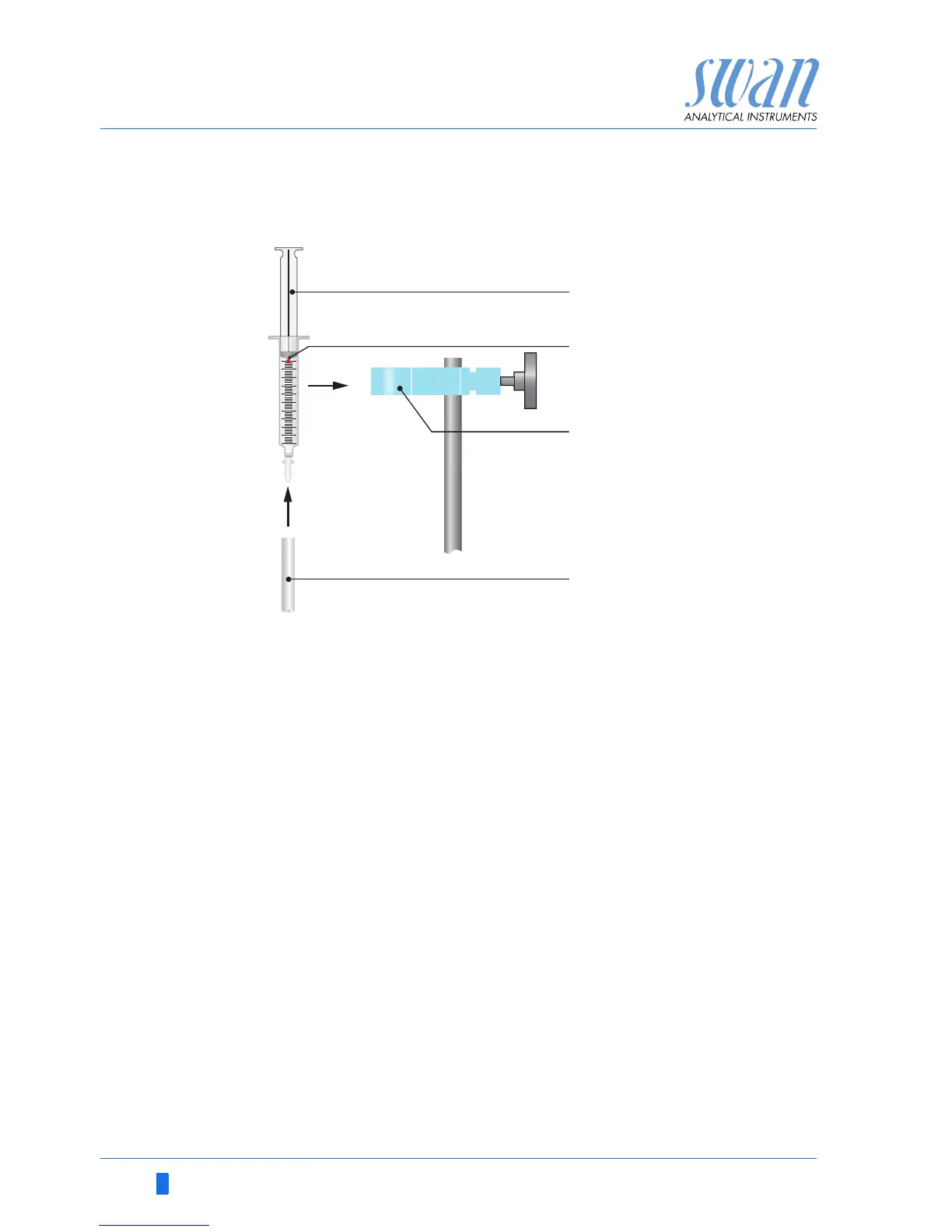

1 Fill the KCl supply tube [D] of the electrode completely with
electrolyte.
Ensure that no air bubbles remain in the tube.
2 Fill the syringe completely with electrolyte by pulling the plunger
just below the punch hole [B].
3 Connect the syringe to the KCl supply tube (Luer-Lock) and clip
it to the holder [C].
4 Pull the plunger slightly over the air hole.
3.4. Temperature Sensor
The temperature sensor is permanently glued to the flow cell block.
Screw the connector marked with T onto the temperature sensor.
A
B
Plunger
Punch hole
C
D
Holder
KCl supply tube
