AMI INSPECTOR pH
Operation

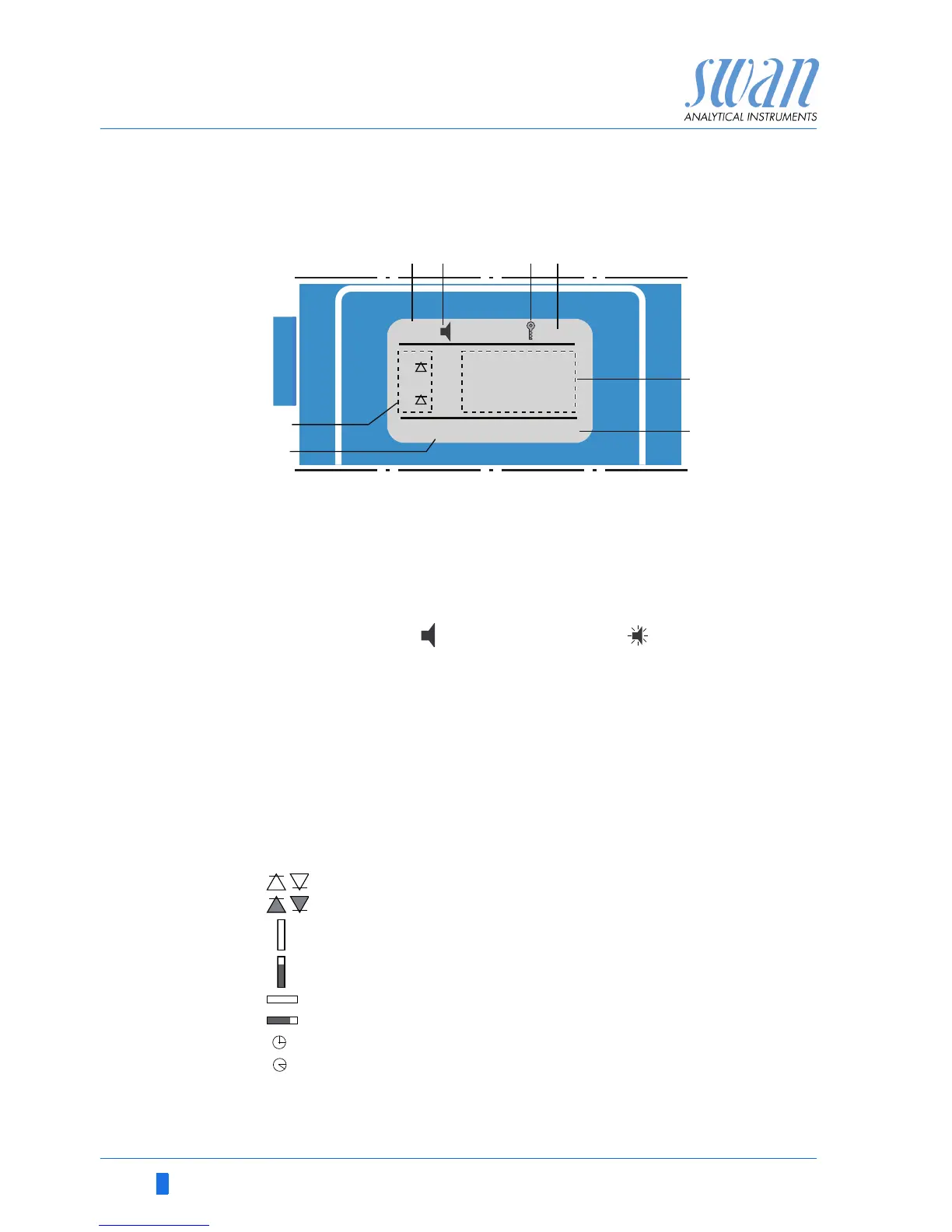

5.2. Display
Relay status, symbols
A RUN normal operation
HOLD input closed or cal delay: Instrument on hold (shows
status of signal outputs).
OFF input closed: control/limit is interrupted (shows status
of signal outputs).
B ERROR Error
Fatal Error
C Battery status (remaining operating time in h)
D Time
E Process values
F Sample temperature
G Sample flow
H Relay status
upper/lower limit not yet reached
upper/lower limit reached
control upw./downw. no action
control upw./downw. active, dark bar indicates control intensity
motor valve closed
motor valve: open, dark bar indicates approx. position
timer
timer: timing active (hand rotating)
RUN
15:20:18
R1
R2
6.5 l/h 24.8°C
pH
8.45
AB D
E
F
H
G
C
