Swann AMI INSPECTOR pH - Install Swansensor Ph si

14 A-96.250.761 / 161017
AMI INSPECTOR pH
Installation
3.3. Install Swansensor pH SI
The pH electrode SI is packed separately and protected with a cap
filled with KCl. After the AMI INSPECTOR pH has been installed
and connected to the sample line, install the pH electrode SI as fol-
lows:
CAUTION
Fragile parts.
The pH electrode is fragile.
 Handle with care.
 Do not spill KCL when removing the protection cap.
Prepare the
KCl Reservoir

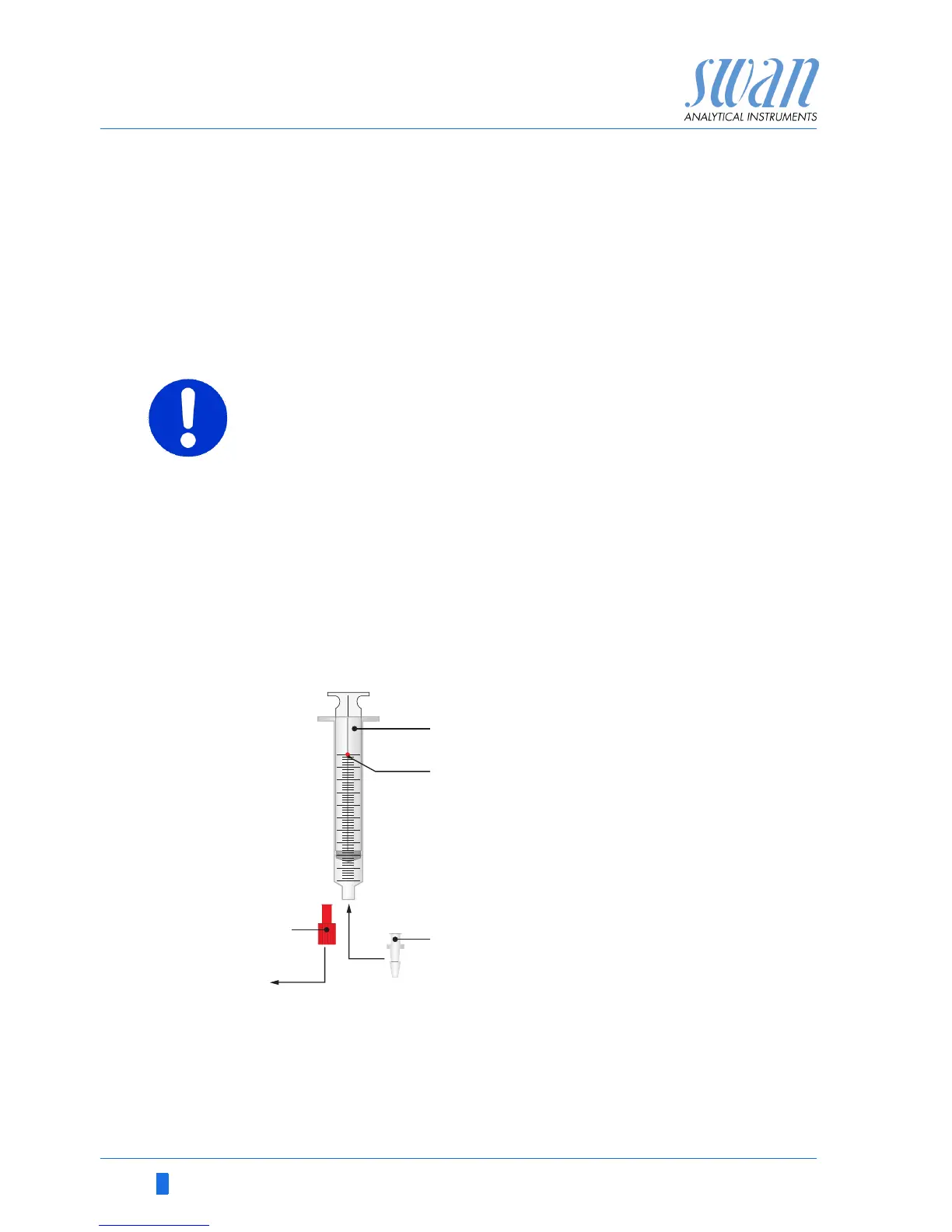

The KCl supply to the reference electrode is ensured by a syringe
[A] with a volume of 10ml. The syringe is connected to the refer-
ence electrode with a Luer-Lock connector [D].
To ensure a continuous flow of KCl to the reference electrode, pull
the plunger of the syringe over the punched hole [B].
1 Remove the Luer-Lock seal cone [C] from the tip of the syringe
[A].
2 Insert the Luer-Lock connector [D] into the tip of the syringe.
A
B
C
D
Syringe
Punched hole
Luer-Lock seal cone
Luer-Lock connector
A
B
C
D
