AMI INSPECTOR pH
Installation
A-96.250.761 / 161017 13
3.2. Connecting Sample Inlet and Outlet

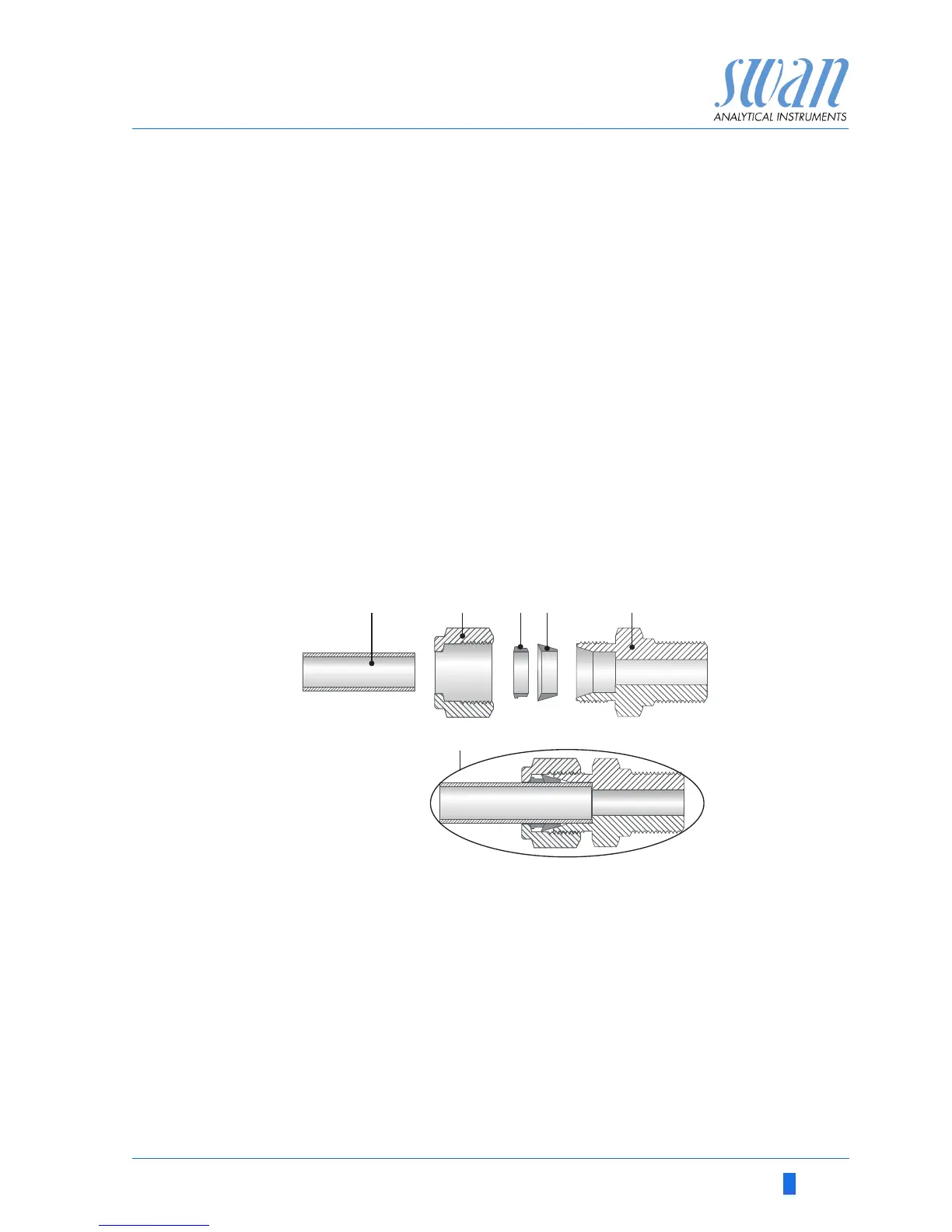

3.2.1 Swagelok Fitting Stainless Steel at Sample Inlet
Preparation Cut the tube to length and deburr it. The tube must be straight and
free from blemishes for approximately 1,5 x tube diameter from the
end.
Lubrication with lubricating oil, MoS2, Teflon etc. is recommended
for the assembly and reassembly of bigger sized unions (thread,
compression cone).
Installation 1 Insert the compression ferrule [C] and the compression
cone [D] into the union nut [B].
2 Screw on the union nut onto the body, do not tighten it.
3 Push the stainless steel pipe through the union nut as far as it
reaches the stop of the body.
4 Tighten down the union nut 1¾ rotation using an open ended
spanner. Hold Body from turning with a second wrench.
3.2.2 Connect the Sample Outlet
Connect the 1/2” tube to the waste funnel of the AMI INSPECTOR
pH.
A
B
C
Tube
Union nut
Compression ferrule
D
E
F
Compression cone
Body
Tightened connection
