AMI INSPECTOR pH
Installation
A-96.250.761 / 161017 15
Install the
Electrode
1 Carefully remove the protective cap [G] from the electrode tip.
Turn it clockwise only.
2 Rinse the electrode tip with clean water.
3 Insert the electrode through the flow cell block [F] into the cali-
bration vessel [H].
4 Tighten it hand-tight.
5 Remove the connector cap [B].
6 Screw the connector [D] marked with pH onto the sensor.
7 Keep the protective caps on a secure place for later use.

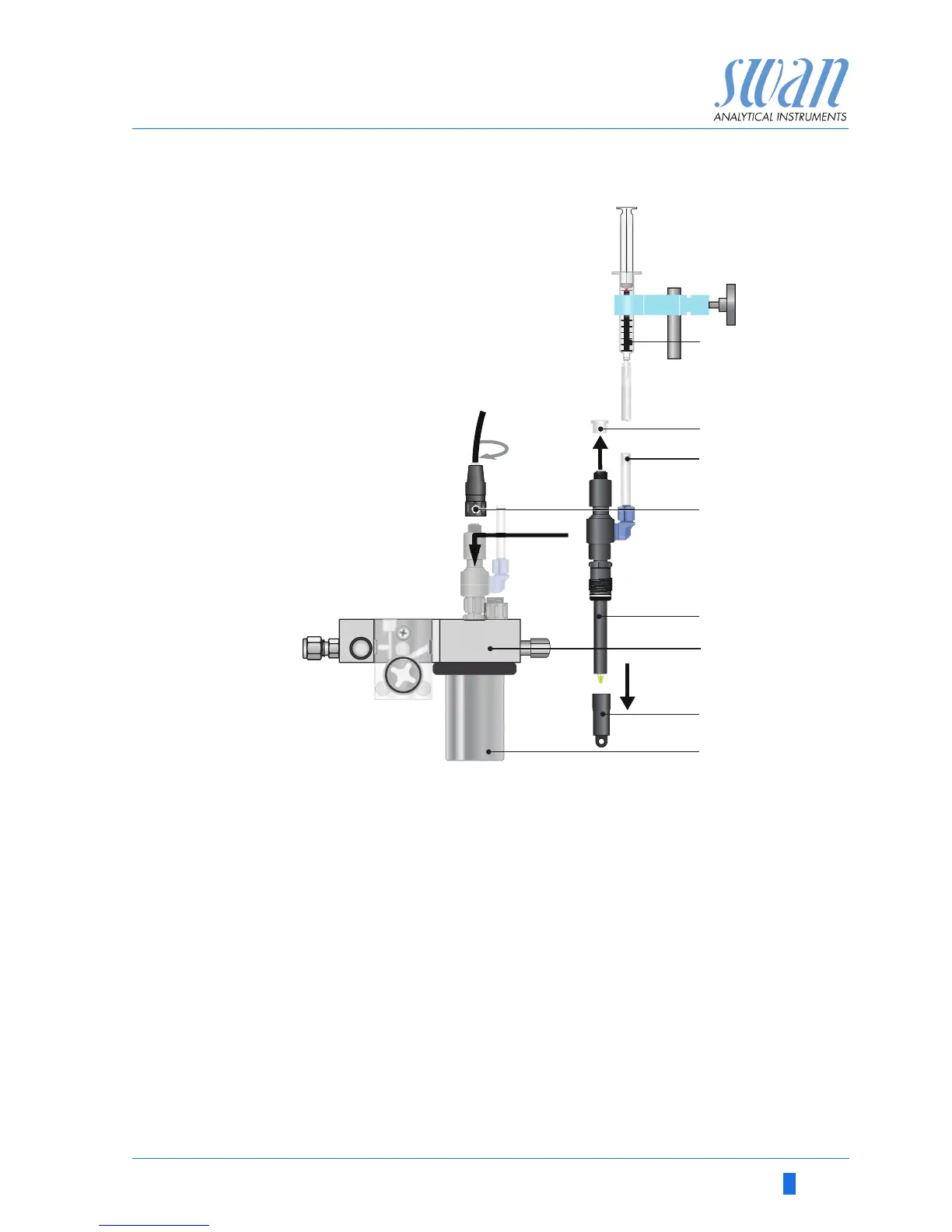

A
B
C
D
Syringe (KCl reservoir)
Connector cap
KCl supply tube
Connector
E
F
G
H
Electrode
Flow cell block QV-Flow
Protective cap
Calibration vessel
B
A
E
F
H
G
D
C
