SWM VAREZ - Combined Braking Pedal Position Adjustment; Rear Brake Pedal Free Play Adjustment

45- EN

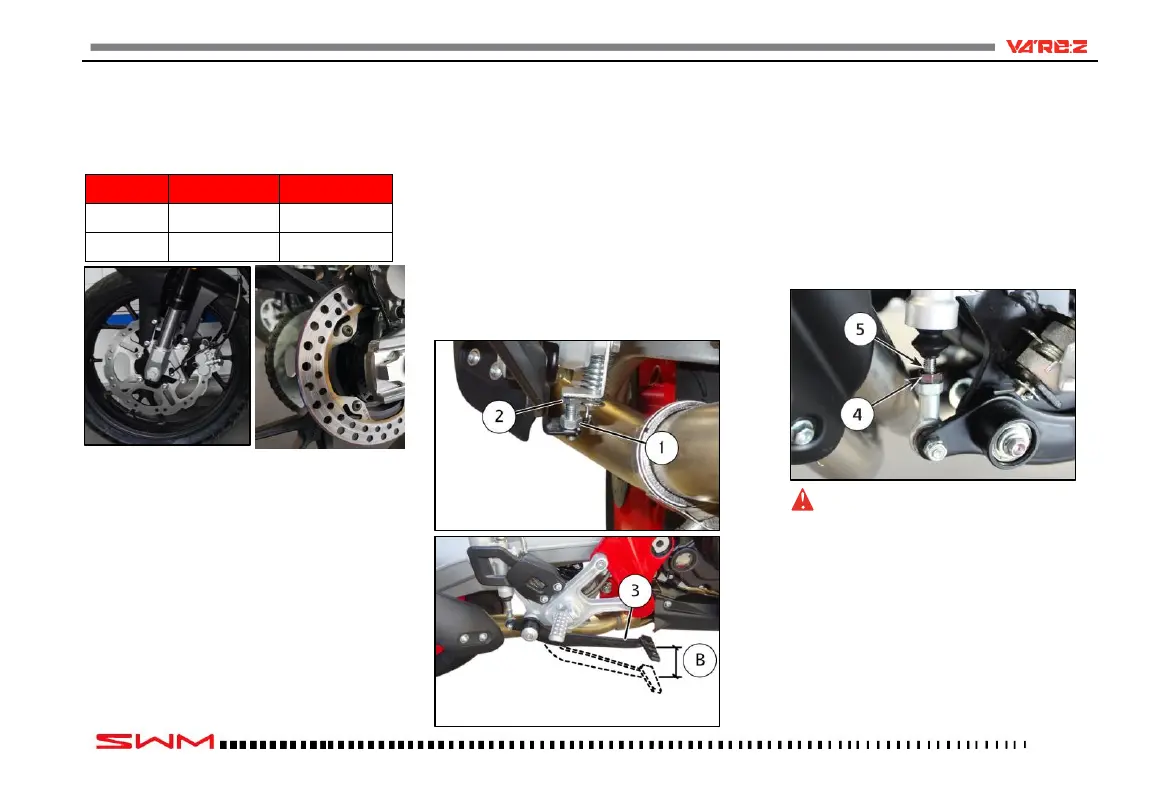

BRAKE DISC WEAR
Measure the thickness of each disc in the point of
maximum wear. Replace the disc if it wear exceeds
the limit provided.
DISC
STANDARD
SERVICE LIMIT
FRONT
5 mm
4.5 mm
REAR
4 mm
3.5 mm
COMBINED BRAKING PEDAL POSITION
ADJUSTMENT
The position of the rear brake pedal with respect
to the footrest may be adjusted according to the
individual needs.
To adjust, proceed as follows.
- Loosen the nut (1);
- Act on the screw (2) to adjust the pedal position
(3).
Once this adjustment is completed, adjust the free
play of the pedal as follows.
REAR BRAKE PEDAL FREE PLAY
ADJUSTMENT
The combined braking pedal (3) must have a free
play (B) of 3 mm before the braking action starts.
Should this not happen, adjust as follows:
- Loosen nut (4);
- Operate the pump rod (5) to increase or de-
crease the free play;
WARNING
In the absence of the required free play, the brake
pads will rapidly wear, resulting in the risk of
TOTAL BRAKE INEFFICIENCY or rear brake lock.
