HEADLIGHT ADJUSTMENT

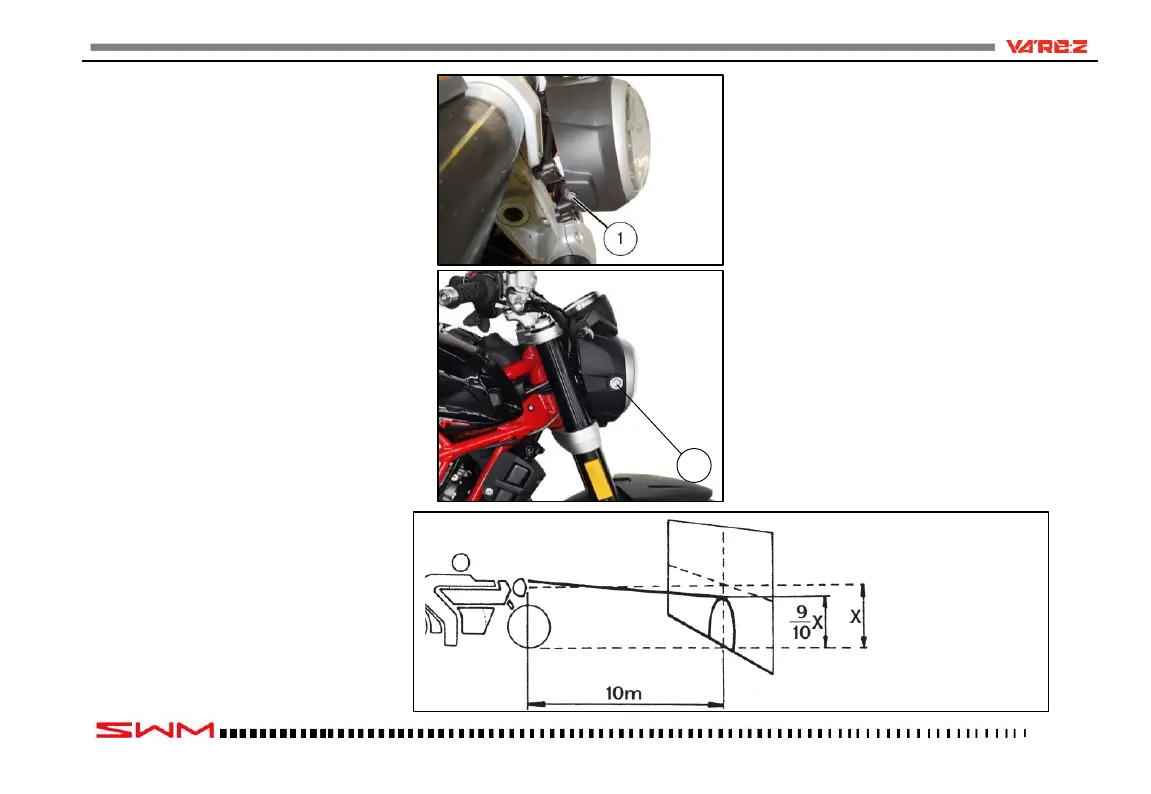

When checking the proper aiming of the head-
light beam: inflate tyres at the right pressure, have
a person sit astride the motorcycle and set the
motorcycle perpendicular to its longitudinal axis.
At 10 metres from a wall or screen, trace a hori-
zontal line at the height of headlight centre and a
vertical one, in line with vehicle longitudinal axis.
If possible, execute this operation in a shaded
place, When the low beam is on, the upper edge
between dark and lit zone should be at 9/10th of
headlight centre from ground.
Any adjustment of the direction can be carried out
by directly using the screw (1) positioned under
the headlight, after loosening the side screws (2).
