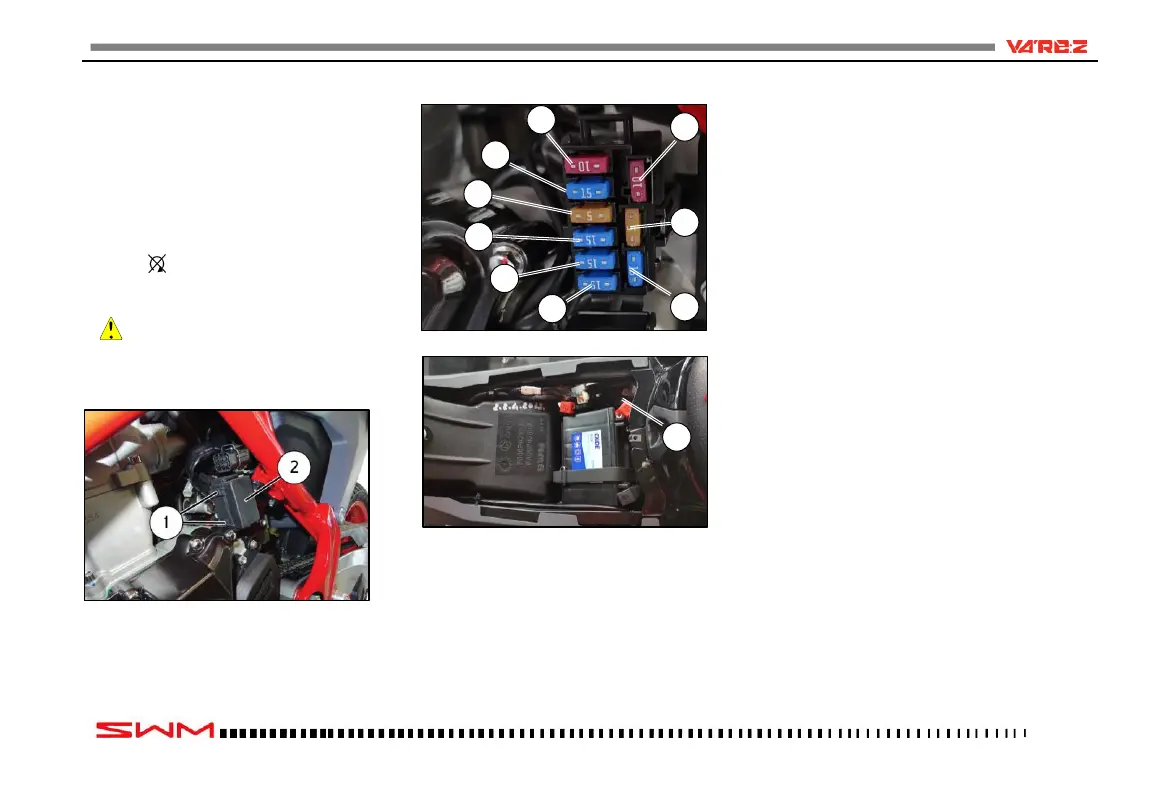

FUSES
Fuse malfunction could cause problems to the
motorcycle.
To access the fuse box, remove the side locking
devices (1) and open the protective door (2).
Before operating on the fuses, set the ignition
switch to position and remove the key in or-
der to prevent short circuits.
CAUTION
Do not use fuses with a different capacity from
the original one
Two fuses (10) are present under the rider seat，
that protect the battery charge generator and
the charge socket under the passenger seat, re-
spectively.
F1) 10A fuse
ABS
2) 15A fuse
ABS
F3) 5A fuse
ABS power supply,
F4) 15A fuse
VBB
F5) 15A fuse
EFI system、instrument function display
F6) 15Ause
EFI system
F7) 10A fuse
Spare fuse
F8) 5A fuse
Spare fuse
F9)15A fuse
Spare fuse
1
2
3
4
5
6
7
8
9
10
