EN-52
Fit the brake calliper on the disc assemble it on
the relevant support and tighten the two screws
(1) to 25.5 Nm. Ensure that the brake disc slides
between the calliper pads without any friction or
hard spots.
Note*: After reassembly, pull the brake control
lever until the pads are against the brake disc
REMOVING THE REAR WHEEL

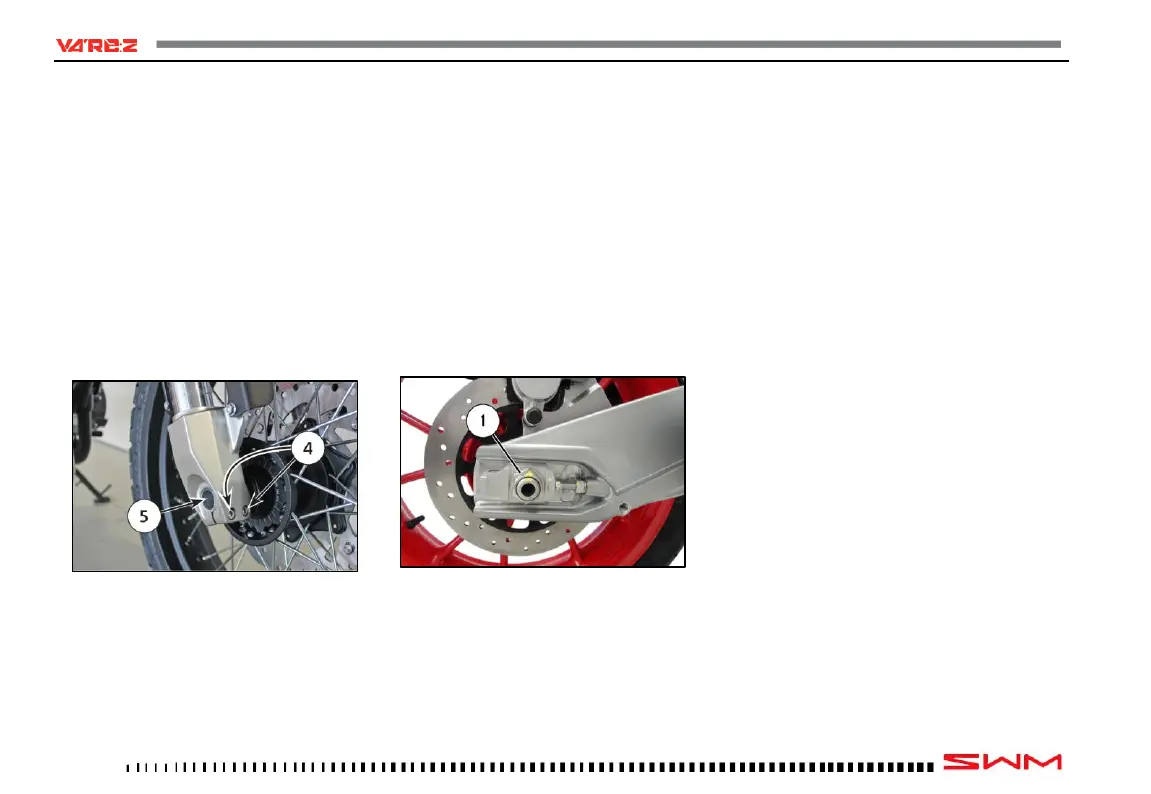

Unscrew the nut (1) of the wheel pin and extract
it. It is not necessary to loosen the chain tension-
ers; in this way, the chain tension will remain un-
changed after reassembly. Extract the complete
wheel, paying attention to the spacers located at
the hub sides.
To reassemble, reverse the above procedure re-
membering to insert the brake disc into the calli-
per. (Tightening torque of nut (1) 120 Nm).
Note*: Do not operate the rear brake pedal when
the wheel has been removed; this causes the cal-
liper pistons to move forwards.
After removal, lay down the wheel with brake disc
facing up.
After reassembling the wheel, depress the brake
pedal until the pads are against the disc.
