24) Front RH turning indicator
25) Instrument
26) LH Switch
27) Ignition switch lock
28) Flash relay
29) Horn
30) Front headlamp relay
31) Cooling fan
32) Stepping motor
33) Side stand
34) Side stand sensor
35) Coolant temperature sensor
36) Front stop switch
37) Rear stop switch
38) Rear RH turning indicato
39) Tail light
40) Rear LH turning indicato
41) Plate lighting
42) Front vehicle Speed Sensor
43) Rear vehicle Speed Sensor
44) ABS
45) Cooling fan relay
BATTERY
The sealed battery does not require any mainte-
nance.
If electrolyte leaks, or other failure of the electri-
cal system, are detected, contact the SWM
Dealer.
If the vehicle remains unused for long periods, it
is recommended to disconnect the battery from
the electrical system and store it in a dry place.
-After an intensive use of the battery, it is advis-
able to carry out a standard slow charging cycle
(12V-9Ah battery: 0.9A for 10 hours).
-Quick charging is advised only in situations of
extreme need since the life of lead elements is
drastically reduced by such cycle (12V-9Ah bat-
tery: 9A for 0.5 hours).
BATTERY CHARGER

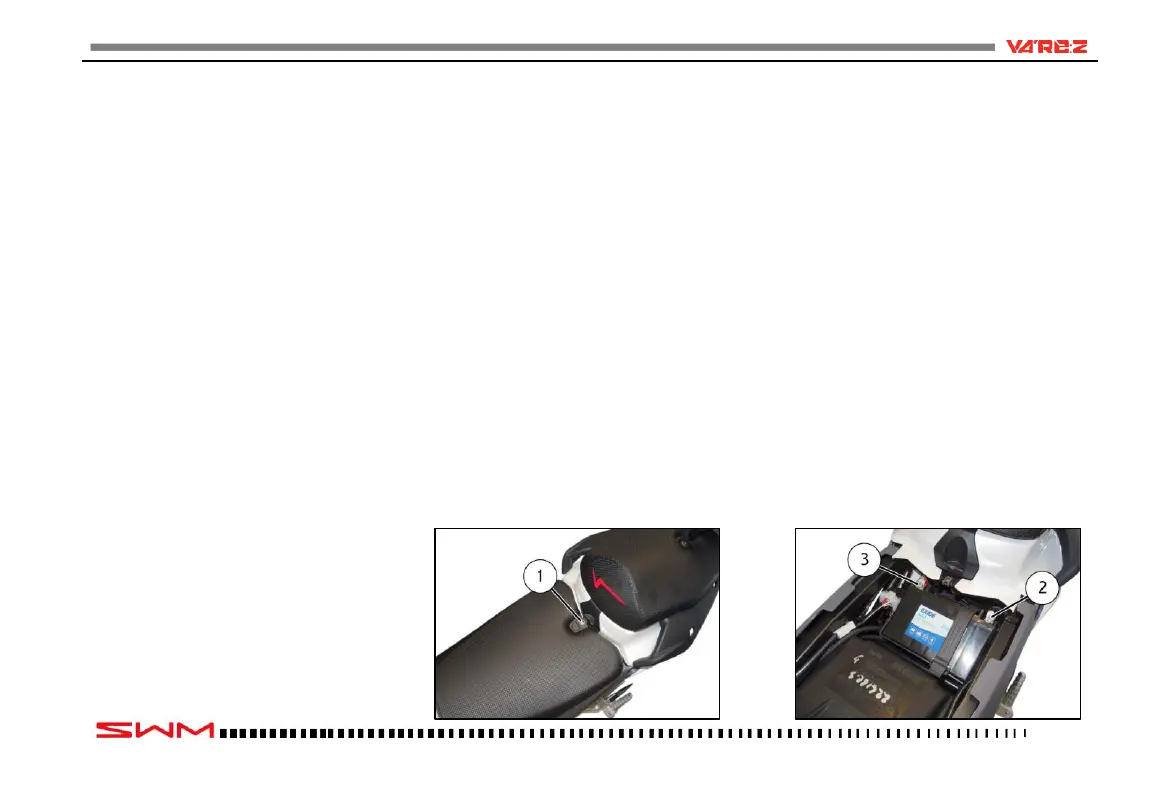

To gain access to the battery, proceed as follows:
-Remove the seat by loosening the retaining
screw (1) to access the battery compartment;
-First remove the BLACK negative cable (2) and
then the RED positive cable (3) (when refitting, first
connect the RED positive cable and then the
BLACK negative cable) by unscrewing the relevant
retaining nuts;
-Pull the tab (4), remove the battery retaining
elastic band and remove the battery from its seat.
Check, using a voltmeter, that battery voltage is
not less than 12.5 V.
If this is not the case, the battery needs to be
charged.
