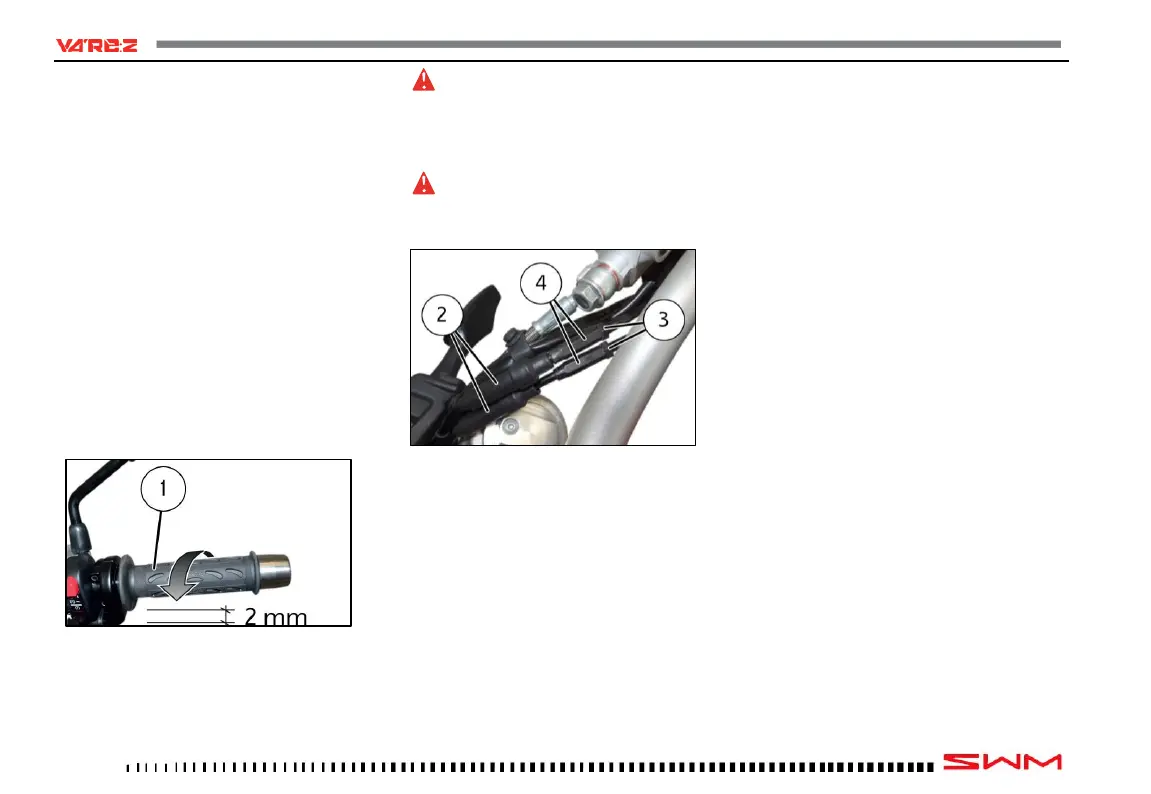

THROTTLE CONTROL CABLE ADJUSTMENT
To check proper adjustment of the throttle con-
trol transmission, operate as follows:
-Turn throttle twistgrip (1) and make sure it has
a clearance of approx. 2 mm;
-Should this not be the case, move the two pro-
tective rubber elements (2);
-Loosen the lock nuts (3) and act on the adjuster
(4) to adjust the clearance;
-Tighten back the lock nuts (3);
-Reassemble all parts, proceeding in reverse or-
der.
WARNING
Using the motorcycle with a damaged throttle
control cable considerably compromises safe rid-
ing.
WARNING
Exhaust gas contains poisonous carbon monoxide
never run the engine indoors.
CLUTCH ADJUSTMENT
Normally, the clutch is adjusted by only stretching
the cable using the adjusting unit positioned on
the handlebar. As a rule, it is sufficient to operate
on the handlebar adjuster to restore the clearance
due to the flexible transmission stretch.
The control lever must always have a free play (C)
(about 3 mm -0.12 in.) before starting to disen-
gage the clutch. To adjust this play, loosen the
lock nut (2), operate the adjuster (3) after remov-
ing the rubber cap (1).
The adjustment can also be carried out through
the tensioner (4) on the right side of the frame. If
the clutch slips under load or drags in disengaged
position after play has been adjusted, it must be
taken apart for inspection.
For this operation contact a Dealer.
