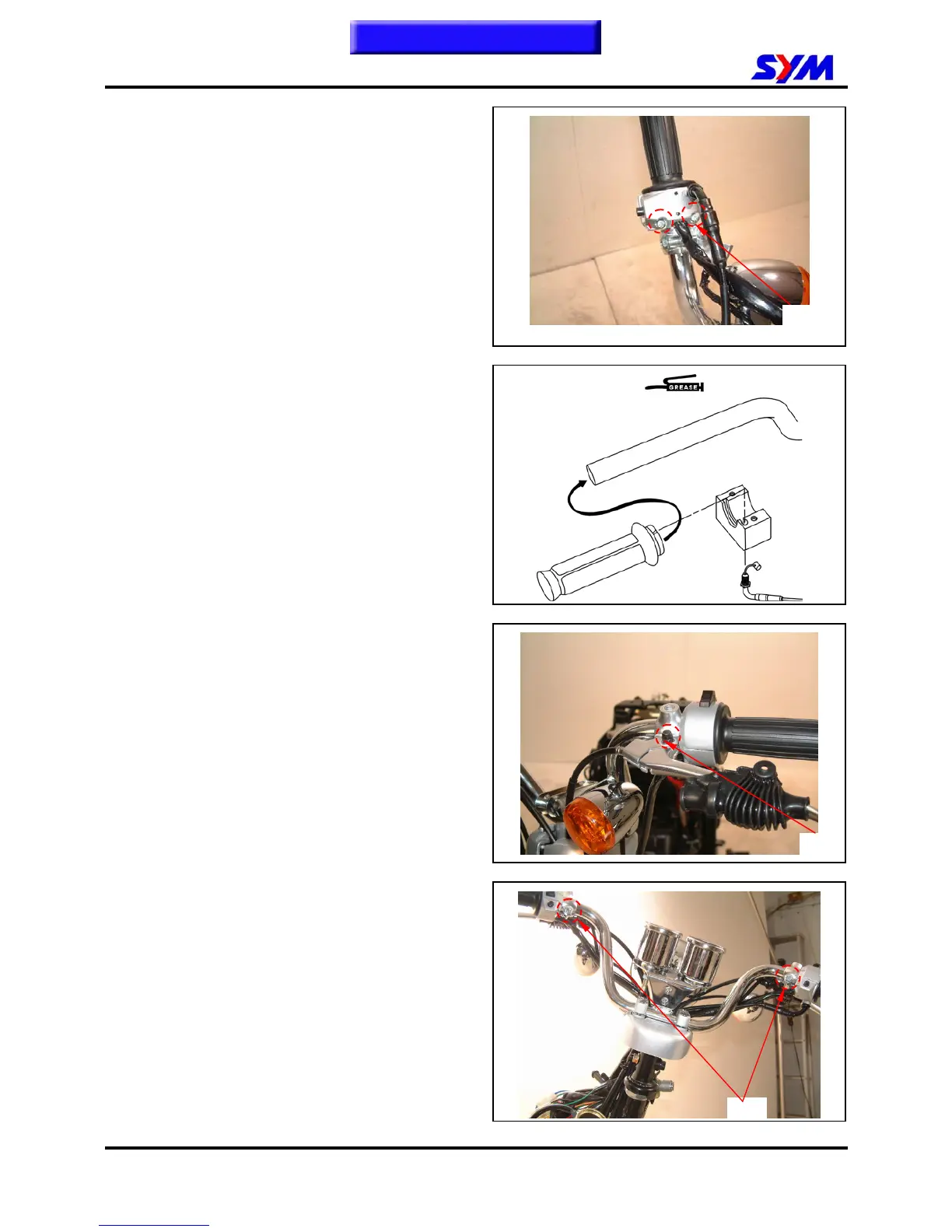

13. STEERING/FRONT WHEEL/SUSPENSION
13-4
Remove 2 screws from right handle switch under
side.
Remove right handle switch.
Remove throttle grip and cable.
Remove rear brake lever mounting nut and bolt.
Remove brake lever and cable.
Remove front and rear brake lever bracket
mounting bolt.
Remove left handle switch, left handle grip and
rear brake lever bracket.
Bolt
This chapter Contents
Screws
Bolts
