Sym Fiddle 50 User Manual

13. STEERING/FRONT WHEEL/SUSPENSION
13-5
bolts
bolts

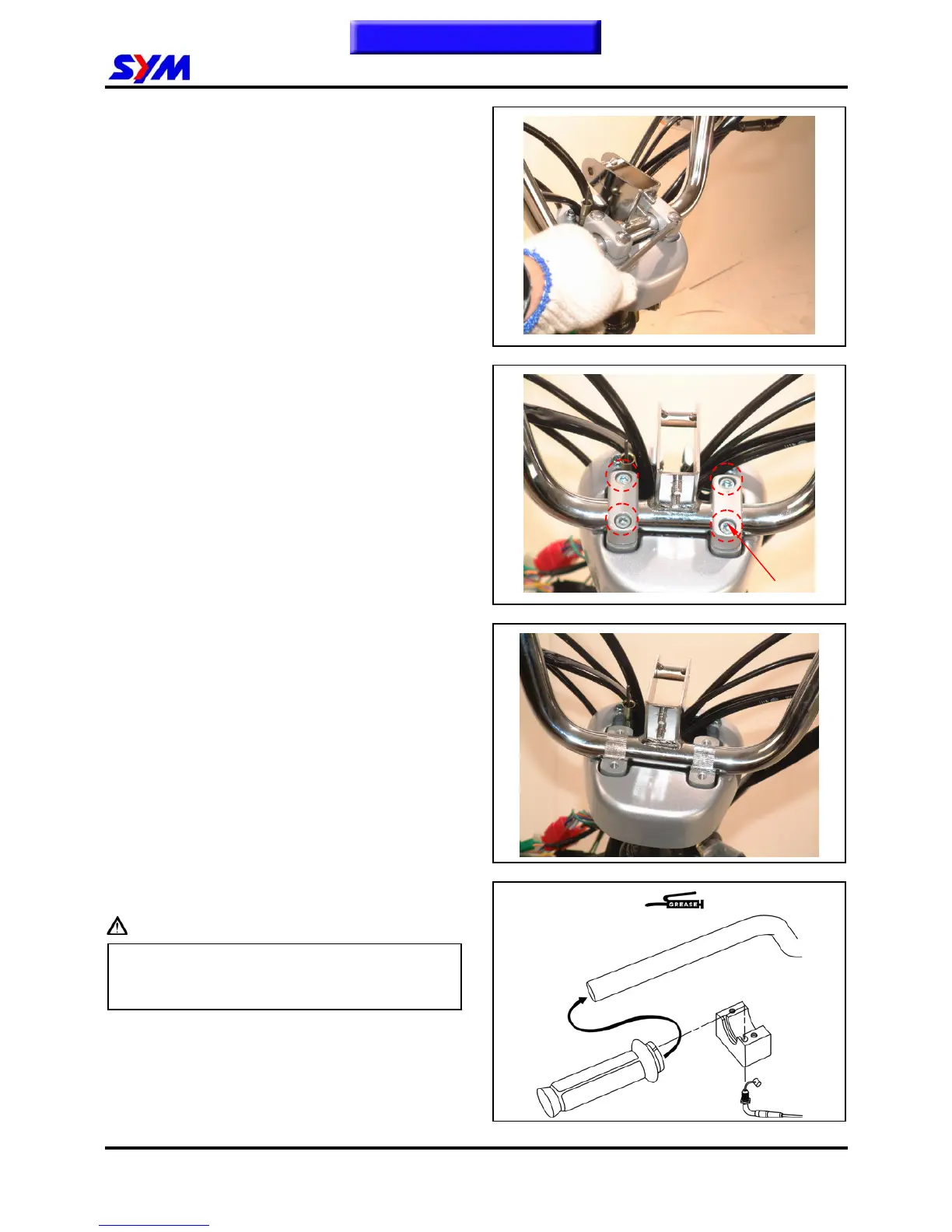

Remove handle holder bolt plug.
Remove handle holder 4 bolts, then remove
handle holder.
Remove handle and front brake lever bracket.
Installation
Install handle and align with bolt hole.
Install bolt and then tighten it.
Torque value: 1.8~2.5kgf-m
Apply with grease onto throttle cable and the
sliding surface of handle.
Align the lock pin of the handle outer tube with
the hole on the handle, and then install the
handle.
Tighten the bolt.
Caution
Align the lock pin with the hole on the handle
and also install brake lever seat. Then,
tighten the lever with clamp and bolt.
Conduct following adjustment:
y Oil pump control cable.
y Throttle operation.
y Brake lever free play
This chapter Contents

Sym Fiddle 50 Specifications

General

Displacement	49.5 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Fuel Capacity	6.5 liters
Dry Weight	95 kg
Engine Type	4-Stroke
Transmission	CVT
