13. STEERING/FRONT WHEEL/SUSPENSION
13-7
Inspection

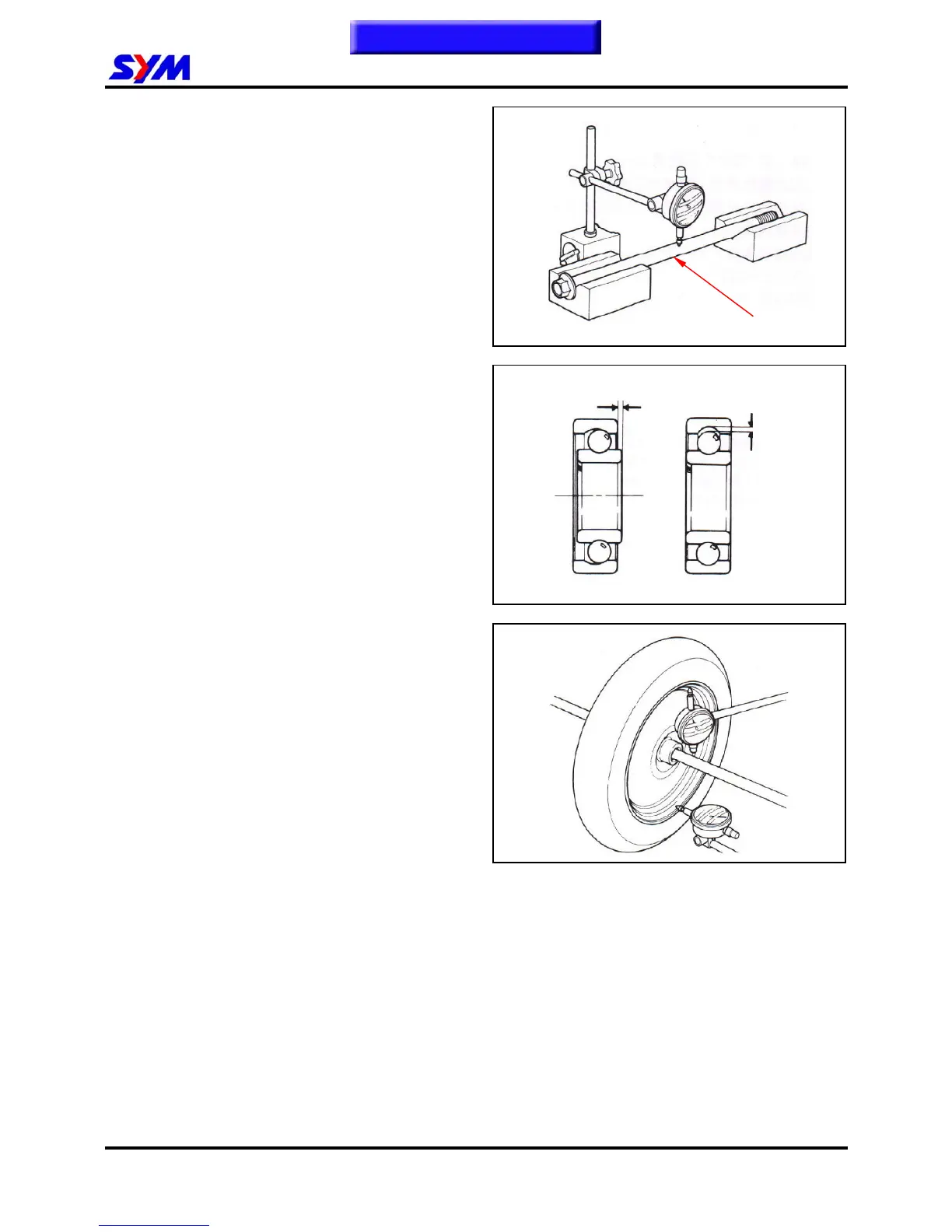

Place the axle onto a V-block to measure its
run-out with a dial gauge.
The dial gauge indicated 1/2 run-out.
Service limit: 0.20 mm
Place the wheel on to a rotation seat, and turn
the wheel to check it bearing free play. If the
bearing is noisy or its free play is too much,
replace it.
Place the wheel on to a rotation seat to check its
rim wobbling. Turn the wheel with hand and
measure its rim wobbling value with a dial gauge.
Service limit:
Radial: 2.0 mm (0.08 in)
Axial: 2.0 mm (0.08 in)
Wheel axle
Free play
Free play
